NAVIGATION & FRONT MONITOR DISPLAY

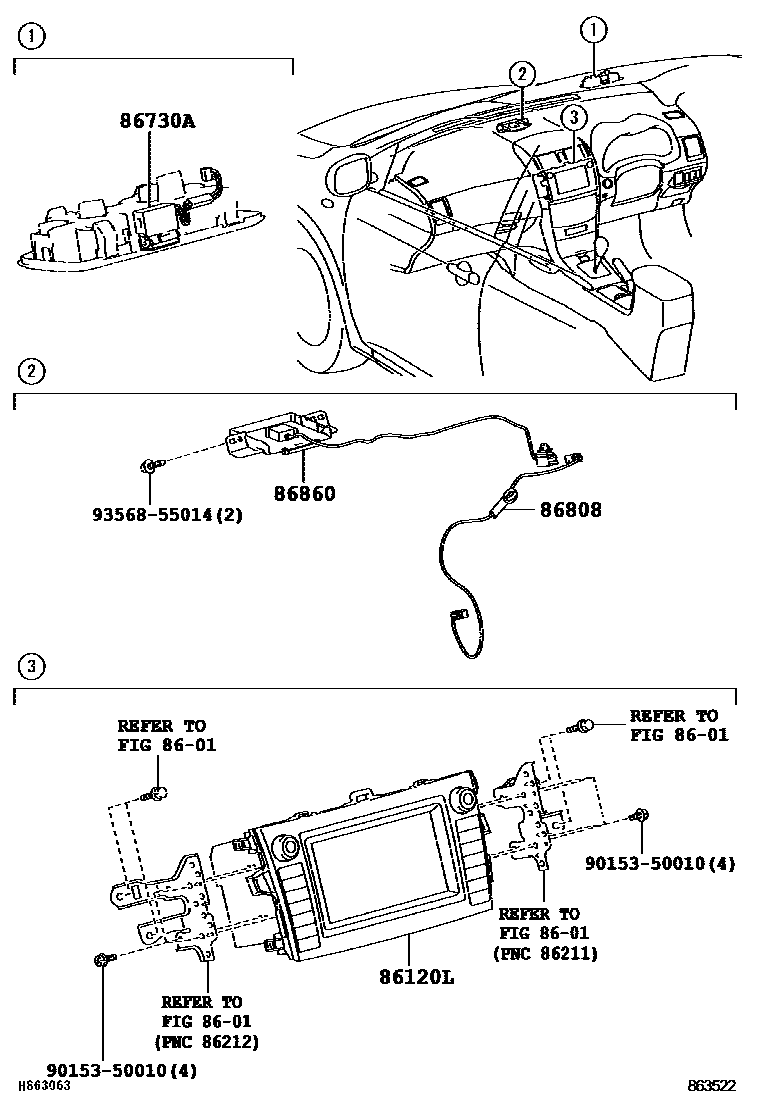

Parts diagram

8601

86120LRECEIVER ASSY, NAVIGATION

86730AMICROPHONE ASSY, TELEPHONE

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-12060

86860ANTENNA ASSY, NAVIGATION

main86860-12070

9015350010

main90153-50010

9356855014

main93568-55014

7 parts on this diagram · 1 diagram in section
