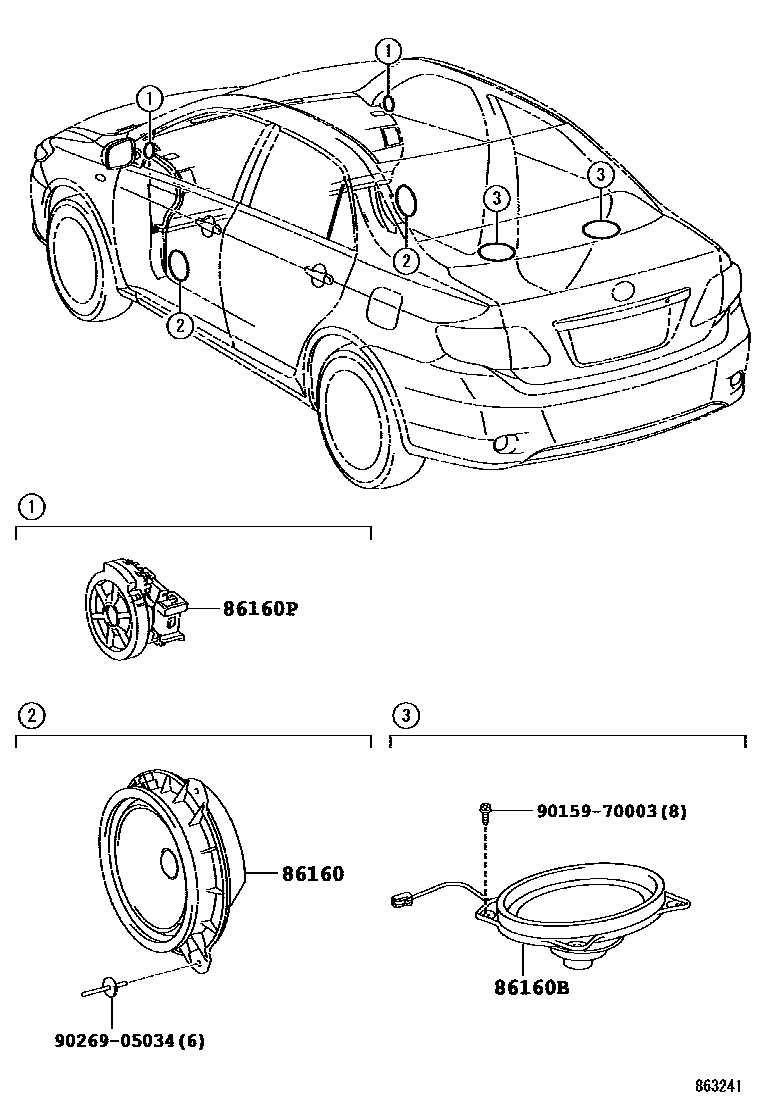

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0D180×2iNDE150,ZRE151,ZZE150200802-200902

main86160-0D370×2iADE150,NDE150,NRE150,ZRE151201110-201306

86160BSPEAKER ASSY, REAR

main86160-02720×2iNDE150,ZRE151,ZZE150200802-200902

main86160-02A30×2iADE150,NDE150,NRE150,ZRE151201103-201306

86160PSPEAKER ASSY, FRONT NO.2

main86160-02700×2iNDE150,ZRE151,ZZE150..D200802-200902

AUDIO-WITH(L/M/UW, CD) & 6SPEAKER

main86160-0D350×2iADE150,NDE150,NRE150,ZRE151..N201110-201306

AUDIO-WITH(MW/UKW & CD & 6SPEAKER)

9015970003

main90159-70003

9026905034

main90269-05034

5 parts on this diagram · 1 diagram in section
