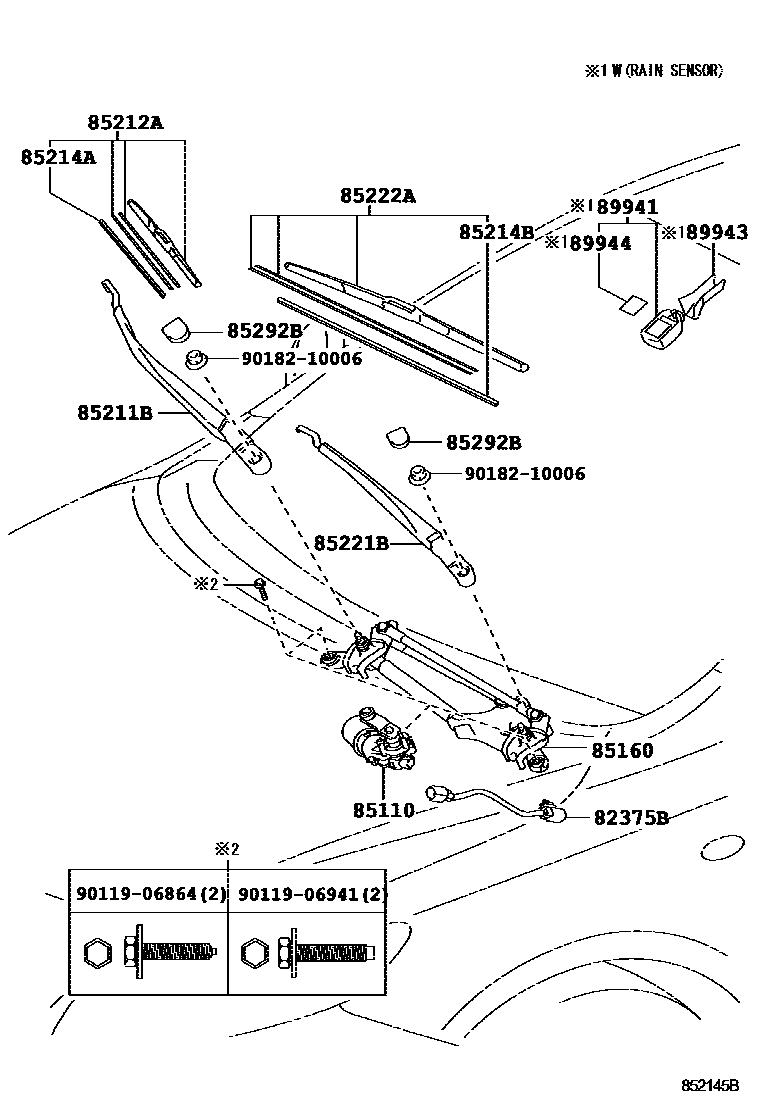

WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-12310iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-200905

main82375-12311iADE150,NDE150,NRE150,ZRE151201006-201306

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12A20iNDE150..LHD..DCR;ADE150,NRE150,ZRE151..LHD..(DCRL,HTWC,HTWVM)200902-201006

main85110-12A30iNDE150..RHD..DCR;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200902-201006

85160LINK ASSY, WINDSHIELD WIPER

main85150-02180iNDE150,ZRE151,ZZE150..LHD200802-200902

main85150-02200iADE150..RHD200802-200903

85211BARM, FRONT WIPER, RH

main85211-02190iNDE150,ZRE151,ZZE150..LHD200802-200902

main85211-02210iNDE150..RHD..DCRL200902-201007

85212ABLADE, FR WIPER, RH

main85212-12430iNDE150,ZRE151,ZZE150..LHD200802-200902

main85212-12480iNDE150,ZRE151,ZZE150..RHD200802-200902

85214ARUBBER, WIPER, RH

main85214-68020iNDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)200802-200903

sub85214-52110

main85214-68030iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD200902-201007

85214BRUBBER, WIPER, LH

main85214-68020iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD200902-201007

sub85214-52110

main85214-68030iNDE150..RHD..D;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200902-201007

85221BARM, FRONT WIPER, LH

main85221-02200iNDE150..LHD..DCR;ADE150,NRE150,ZRE151..LHD..(DCRL,HTWC,HTWVM)200902-201006

main85221-02220iNDE150..RHD..DCR;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200902-201006

85222ABLADE, FR WIPER, LH

main85222-12830iNDE150,ZRE151,ZZE150..LHD200802-200902

main85222-12860iNDE150..RHD..DCRL200902-201007

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010×2iNDE150,ZRE151,ZZE150200802-200902

89941SENSOR, RAIN

main89941-42010iNDE150,ZRE151,ZZE150..N200802-200902

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-42010iNDE150,ZRE151,ZZE150..N200802-200902

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-42010iNDE150,ZRE151,ZZE150..N200802-200902

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

9011906864

main90119-06864

9011906941

main90119-06941

9018210006

main90182-10006

16 parts on this diagram · 2 diagrams in section
