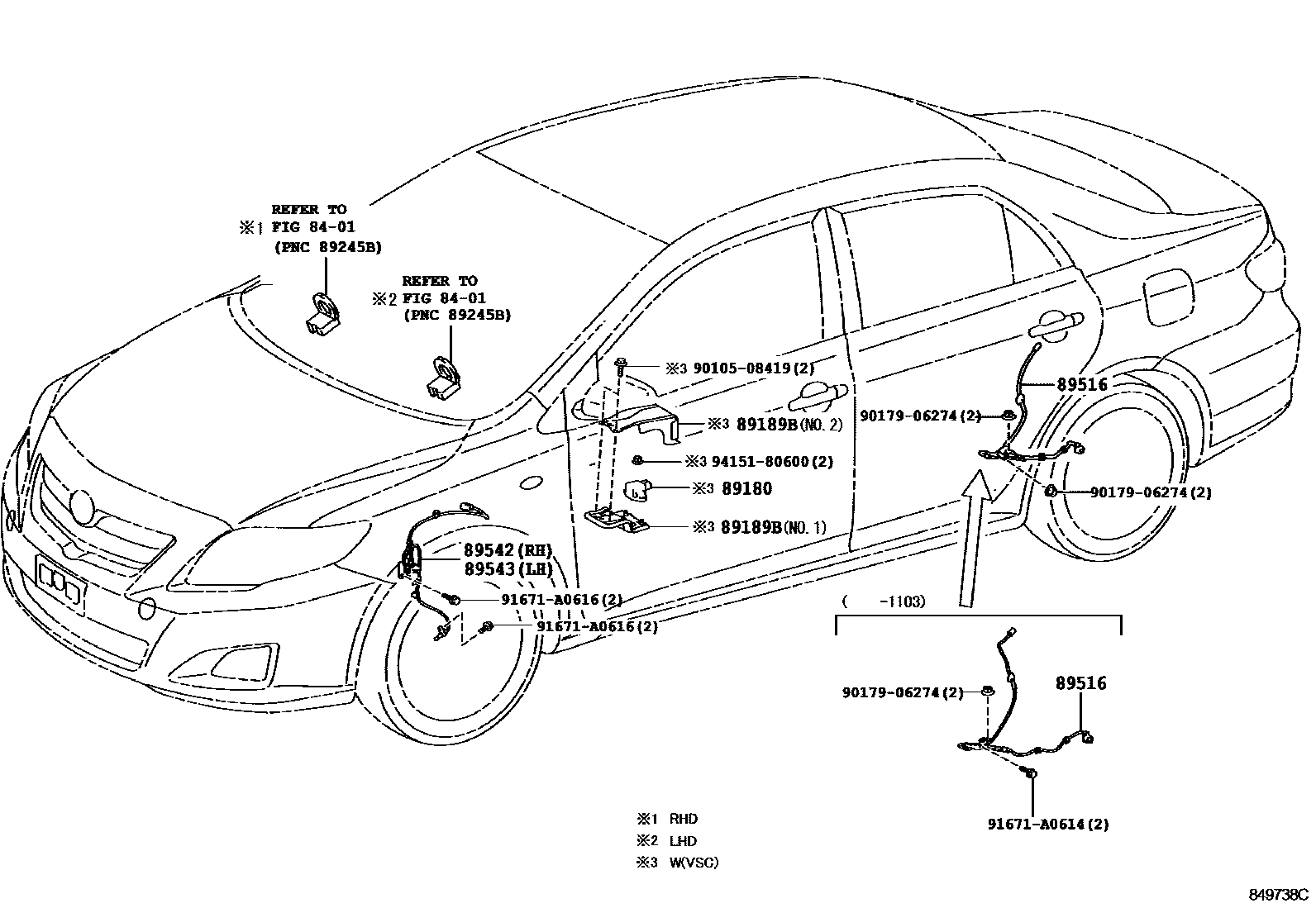

ABS & VSC

8401

89180SENSOR ASSY, YAWRATE

main89183-02030iZRE151..RHD201006-201306

VSC-WITH

89189BBRACKET, YAWRATE SENSOR

main89189-02050iZRE151..RHD201006-201306

NO.1

main89189-02050iZRE151..RHD201006-201306

VSC-WITH,NO.1

main89189-02060iZRE151..RHD201006-201306

NO.2

main89189-02060iZRE151..RHD201006-201306

VSC-WITH,NO.2

89516WIRE, SKID CONTROL SENSOR

main89516-02071iNDE150..DCR;ADE150,NRE150,ZRE151200910-201103

RH

main89516-02081iNDE150..DCRL200910-201103

LH

main89516-02170iNDE150..6F;NDE150..6FS..DCRL;ADE150,NRE150,ZRE151201103-201306

RH

main89516-02180iNDE150..6F;NDE150..6FS..DCRL;ADE150,NRE150,ZRE151201103-201306

LH

main89516-02190iADE150200802-200909

RH

sub89516-02071

main89516-02200iADE150200802-200909

LH

sub89516-02081

89542SENSOR, SPEED, FRONT RH

main89542-02120iADE150,NDE150,NRE150,ZRE151200802-201306

89543SENSOR, SPEED, FRONT LH

main89543-02120iNDE150,ZRE151,ZZE150200802-201306

9010508419

main90105-08419¥90

9017906274

main90179-06274¥70

91671A0614

main91671-A0614¥60

91671A0616

main91671-A0616¥60

9415180600

main94151-80600¥60

11 parts on this diagram · 1 diagram in section
