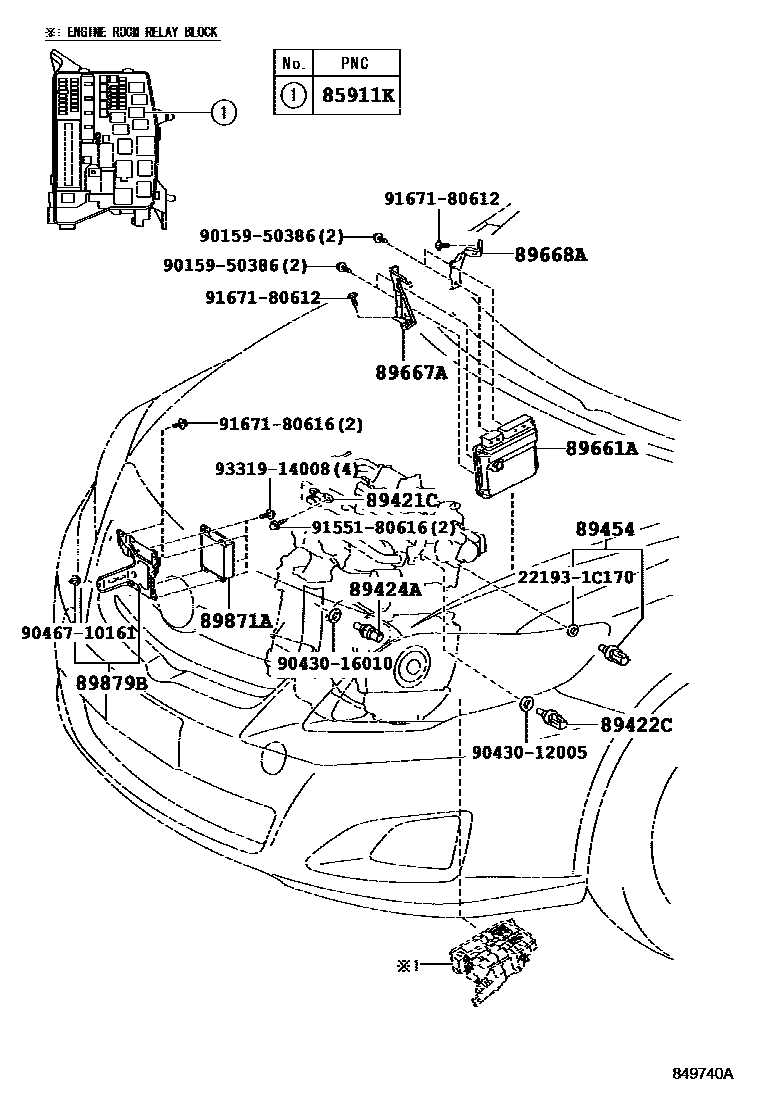

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1 0004 1

85911KRELAY, HEATER(FOR AIR FUEL RATIO SENSOR)

main90080-87021iADE150201111-201306

sub90987-02027

main90080-87027iADE150200802-201110

sub90080-87021

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89420-12220iNDE150200802-200902

main89421-20200iADE150200802-201306

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iADE150200802-201306

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iADE150200802-201306

89454SENSOR, FUEL TEMPERATURE

main89454-60020iADE150200802-201306

89661ACOMPUTER, ENGINE CONTROL

main89660-02K30iNDE150..5F200802-200902

EXHAUST EMISSION CONTROL-ECE STEP4,WITHOUT(OBD)

sub89660-02K31

main89660-02K40iNDE150..5FS200802-200902

sub89660-02K41

main89660-02W70iNDE150..6F..DCR200902-200910

sub89660-02W71

main89660-02W71iNDE150..6F..DCR200911-201211

main89660-02X00iNDE150..6F..DCRL200902-200910

sub89660-02X01

main89660-02X01iNDE150..6F..DCRL200911-201007

main89660-02X10iNDE150..6FS..DCRL200902-200910

sub89660-02X11

main89660-02X11iNDE150..6FS..DCRL200911-201007

main89660-02Y30iNDE150..6FS..DCR200902-200910

sub89660-02Y31

main89660-02Y31iNDE150..6FS..DCR200911-201208

main89660-0Z650iNDE150..6F..DCRL201007-201211

sub89660-12M10

main89660-0ZD00iNDE150..6FS..DCRL201007-201211

main89660-0ZS40iNDE150..DCR201211-201306

main89660-0ZS60iNDE150..6F..DCRL201211-201306

main89660-0ZS70iNDE150..6FS201211-201306

main89661-02D82iADE150..DCRL200802-200808

sub89661-02D83

main89661-02D83iADE150..DCRL200809-200903

main89661-02D91iADE150..DCR200802-200808

sub89661-02D92

main89661-02D92iADE150..DCR200809-200903

main89661-02S30iADE150200903-201002

sub89661-02S31

main89661-02S31iADE150201003-201102

sub89661-02S32

main89661-02S32iADE150201103-201306

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02180iADE150200802-201306

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02170iADE150200802-201306

89871ADRIVER, INJECTOR

main89871-20080iADE150200903-201306

main89871-71010iADE150200802-200903

89879BBRACKET, INJECTOR DRIVER

main89879-12060iADE150200802-201306

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

9015950386

main90159-50386

9043012005

main90430-12005

9043016010

main90430-16010

9046710161

main90467-10161

9155180616

main91551-80616

9167180612

main91671-80612

9167180616

main91671-80616

9331914008

main93319-14008

19 parts on this diagram · 4 diagrams in section
