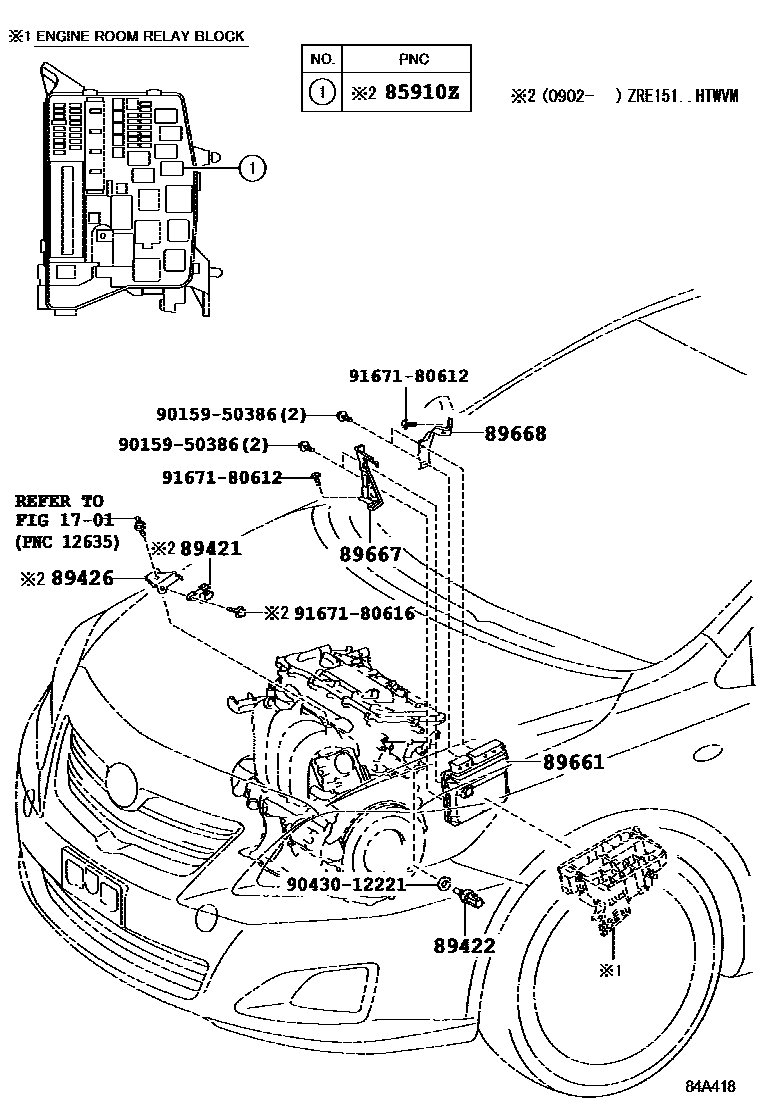

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1701

85910ZRELAY, INJECTION (FOR EFI)

main90080-87021iZRE151201111-201306

sub90987-02027

main90080-87027iZRE151200902-201110

sub90080-87021

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRE151..HTWVM200902-201306

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNRE150,ZRE151200802-201306

main89422-35010iZZE150200802-200902

89426BRACKET, VACUUM SENSOR

main89426-28080iZRE151..HTWVM200902-201306

89661COMPUTER, ENGINE CONTROL

main89660-02K50iZZE150200802-200902

main89661-02E00iZRE151..6F..HTWC200902-201006

main89661-02E51iZRE151..5F200802-200902

main89661-02E71iZRE151..5FS200802-200902

main89661-02S60iNRE150200902-201005

sub89661-02S61

main89661-02T40iZRE151..6F..HTWVM200902-200903

sub89661-02T41

main89661-02T41iZRE151..6F..HTWVM200904-201006

sub89661-02T42

main89661-02T60iZRE151..6FS200902-200903

sub89661-02T61

main89661-02T61iZRE151..6FS200904-201006

sub89661-02T62

main89661-02U20iZRE151..4FC200902-201006

sub89661-02U21

main89661-02W30iNRE150201006-201103

sub89661-02W31

main89661-02W31iNRE150201104-201306

main89661-02W60iZRE151..6F201006-201103

sub89661-02W61

main89661-02W61iZRE151..6F201104-201306

main89661-02W80iZRE151..6FS201006-201103

sub89661-02W81

main89661-02W81iZRE151..6FS201104-201306

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02180iNRE150,ZRE151200802-201306

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02140iZRE151200802-201306

9015950386

main90159-50386

9043012221

main90430-12221

9167180612

main91671-80612

9167180616

main91671-80616

12 parts on this diagram · 3 diagrams in section
