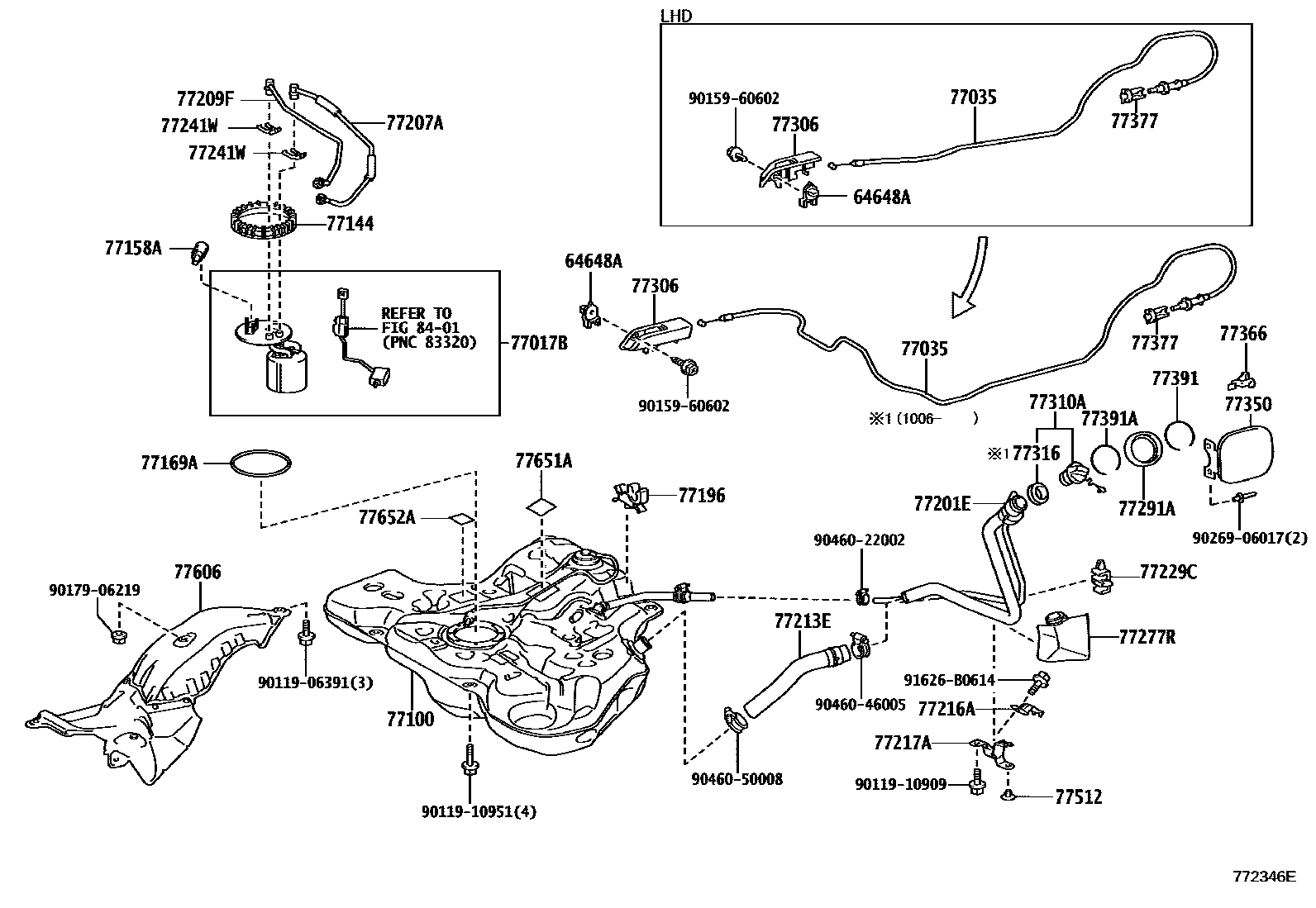

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM¥210200802-201306

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-02020iNDE150200802-201212

sub77010-02080

main77010-02080iADE150,NDE150201212-201306

sub77010-02081

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02220iNDE150,ZRE151,ZZE150..RHD200802-201209

sub77035-12630

main77035-02230iNDE150,ZRE151,ZZE150..LHD200802-201209

sub77035-12640

main77035-12630iADE150,NDE150,NRE150,ZRE151..RHD201209-201306

main77035-12640iADE150,NDE150,NRE150,ZRE151..LHD201209-201306

77100TANK ASSY, FUEL

main77001-02290iZRE151,ZZE150200802-200809

sub77001-02291¥34,900

main77001-02291iNRE150,ZRE151¥34,900200810-201306

main77001-02300iADE150,NDE150200802-200809

sub77001-02301

main77001-02301iNDE150..DCR;ADE150..DCRL200810-201306

77144RETAINER, FUEL PUMP GAUGE

main77144-02080iNDE150..DCRL¥2,490200802-201306

77158ASUPPORT, TANK SUCTION TUBE

main77158-0D020iNDE150¥380200802-201306

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02070iNDE150..DCRL200802-201306

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-12080iADE150,NDE150,NRE150,ZRE151¥520200802-201306

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-12790iZRE151,ZZE150¥11,300200802-201303

sub77201-12791¥11,300

sub77216-12190¥350

sub77217-47080¥630

sub91626-B0614¥60

main77201-12800iADE150,NDE150200802-201306

sub77201-12801

sub77216-12190¥350

sub77217-47080¥630

sub91626-B0614¥60

main77201-12A40iNRE150,ZRE151201304-201306

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-02060iNDE150200802-201306

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02140iNDE150,ZRE151,ZZE150200802-201306

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12300iNDE150,ZRE151,ZZE150200802-201306

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12190iADE150,ZZE150;NDE150,ZRE151..5F,5FS¥350200802-201306

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-47080iADE150,ZZE150;NDE150,ZRE151..5F,5FS¥630200802-201306

77229CCLAMP, BREATHER TUBE

main77229-12070iNDE150,ZRE151,ZZE150¥520200802-201306

77241WCLIP, TUBE JOINT

main77241-32060iNDE150..DCR;ADE150..DCRL¥80200802-201306

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iNDE150,ZRE151,ZZE150¥1,260200802-201306

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02090iNDE150,ZRE151,ZZE150200802-201306

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-33020iADE150,NDE150,NRE150,ZRE151..RHD¥2,840200802-201306

main64606-33030iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD¥3,760200802-201306

77310ACAP ASSY, FUEL TANK

main77300-20020iADE150,NDE150¥2,200200901-201306

main77300-52030iADE150,NDE150¥1,560200802-201306

77316GASKET, FUEL TANK CAP

main77316-52040iADE150,NDE150,NRE150,ZRE151¥230201006-201306

77350LID ASSY, FUEL FILLER OPENING

main77350-12490iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201306

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-02010iNDE150,ZRE151,ZZE150200802-201306

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM¥300200802-201306

77391RING, FUEL INLET BOX

main77391-12020iNDE150,ZRE151,ZZE150¥180200802-201306

77391ARING, FUEL INLET BOX

main77391-53010iNDE150,ZRE151,ZZE150¥300200802-201306

77512BRACKET, FUEL TANK, REAR

main77512-35140iNDE150..DCRL¥230200802-201306

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-02040iADE150200802-201306

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iNDE150,ZRE151,ZZE150¥230200802-201306

77652ACUSHION, FUEL TANK, NO.2

main77652-45020iNRE150,ZRE151¥200200802-201306

8401

9011906391

main90119-06391¥100

9011910909

main90119-10909¥100

9011910951

main90119-10951¥160

9015960602

main90159-60602¥60

9017906219

main90179-06219¥70

9026906017

main90269-06017¥140

9046022002

main90460-22002¥530

9046046005

main90460-46005¥190

9046050008

main90460-50008¥240

91626B0614

main91626-B0614¥60

41 parts on this diagram · 5 diagrams in section
