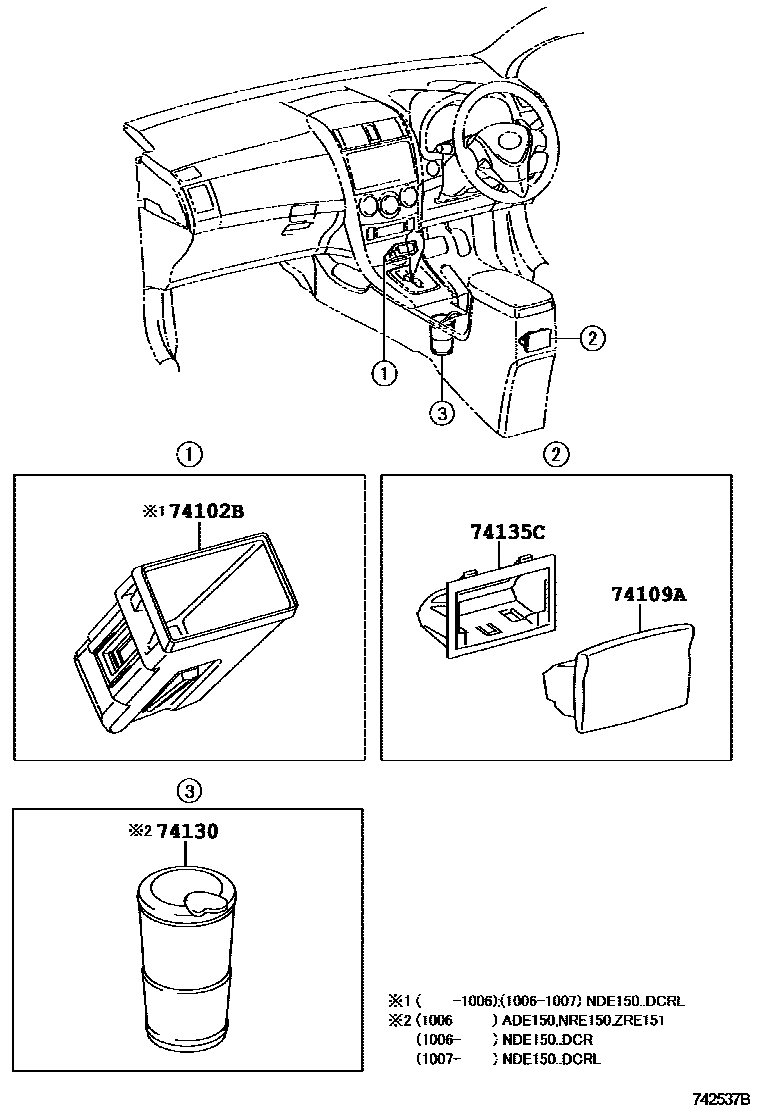

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12410iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201007

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-20100-B2iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201306

DK.GRAY,TRIM1#

sub74109-20100

main74109-20100-E2iNDE150..LHD..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200802-201306

GREGE,TRIM4#

sub74109-20100

74130RECEPTACLE ASSY, REAR ASH

main74110-42010iADE150,NDE150,NRE150,ZRE151201203-201306

main74130-12070iADE150,NDE150,NRE150,ZRE151201006-201009

74135CRETAINER, ASH RECEPTACLE

main74135-20090iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

4 parts on this diagram · 1 diagram in section
