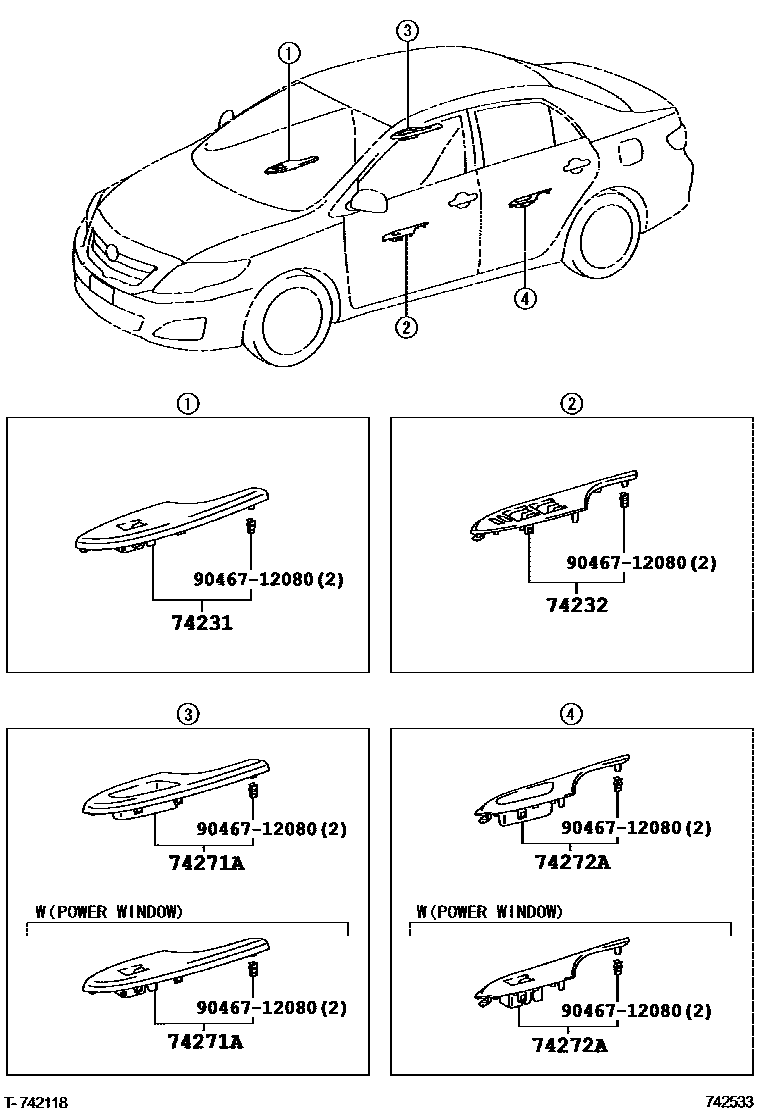

ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-02570-B0iNDE150..LHD..N;ADE150,NRE150,ZRE151..LHD..N..(DCRL,HTWC,HTWVM)200902-201007 SILVER,TRIM1#,4#
main74231-02600-B0iADE150,ZRE151,ZZE150..RHD..N..(DCR,HTWC)200802-200903 SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#,4#
main74231-02760-B0supersedes 74231-02770-B0iNDE150,NRE150,ZRE151..RHD..D200902-201007 POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-02590-B0iADE150,ZZE150..LHD..N;NDE150,ZRE151..LHD..(5F,5FS)..N200802-200903 SILVER,TRIM1#,4#
main74232-02610-B0iADE150,ZRE151,ZZE150..RHD..N..(DCR,HTWC)200802-200903 SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#,4#
main74232-02750-B0supersedes 74232-02760-B0iNDE150,NRE150,ZRE151..LHD..D201006-201306 POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-02160-B0iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N200802-200903 SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#,4#
main74271-02280-B0supersedes 74271-02290-B0iNDE150,NRE150,ZRE151..D200902-201007 POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-02150-B0iNDE150..LHD..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200902-201007 SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#,4#
main74272-02270-B0supersedes 74272-02280-B0iNDE150,ZRE151,ZZE150..D200802-200902 POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#
5 parts on this diagram · 3 diagrams in section
