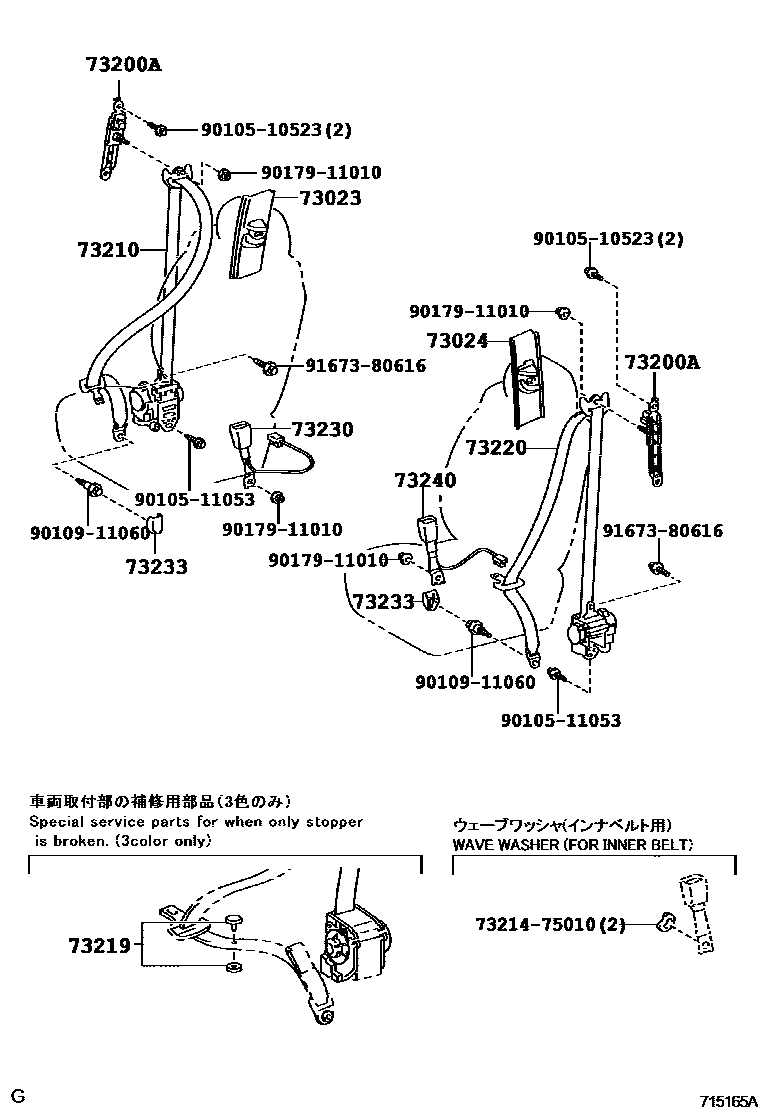

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33020-B2iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

LT.GRAY,TRIM1#

sub73023-33020

main73023-33020-E0iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N200802-201306

GREGE,TRIM4#

sub73023-33020

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33020-B2iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

LT.GRAY,TRIM1#

sub73024-33020

main73024-33020-E0iNDE150..LHD..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200802-201306

GREGE,TRIM4#

sub73024-33020

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02100iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201306

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02320-B0iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201007

DK.GRAY,TRIM1#

sub73210-02321

main73210-02320-B1iADE150,NDE150,NRE150,ZRE151201006-201205

DK.GRAY,TRIM1#

sub73210-02321

main73210-02320-E0iNDE150..LHD..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200802-201205

GREGE,TRIM4#

sub73210-02321

main73210-02321-B1iADE150,NDE150,NRE150,ZRE151201206-201301

DK.GRAY,TRIM1#

sub73210-02322

main73210-02321-E0iADE150,NDE150,NRE150,ZRE151..N201206-201301

GREGE,TRIM4#

sub73210-02322

main73210-02322-B1iADE150,NDE150,NRE150,ZRE151201302-201306

DK.GRAY,TRIM1#

main73210-02322-E0iADE150,NDE150,NRE150,ZRE151..N201302-201306

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iADE150,NDE150,NRE150,ZRE151200802-201306

BLACK

main73219-33020iADE150,NDE150,NRE150,ZRE151200802-201306

GRAY

main73219-33030iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201306

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02270-B0iNDE150,ZRE151,ZZE150200802-201007

DK.GRAY,TRIM1#

sub73220-02271

main73220-02270-B1iADE150,NDE150,NRE150,ZRE151201006-201205

DK.GRAY,TRIM1#

sub73220-02271

main73220-02270-E0iADE150200802-201205

GREGE,TRIM4#

sub73220-02271

main73220-02271-B1iADE150,NDE150,NRE150,ZRE151201206-201301

DK.GRAY,TRIM1#

sub73220-02272

main73220-02271-E0iADE150,NDE150,NRE150,ZRE151..N201206-201301

GREGE,TRIM4#

sub73220-02272

main73220-02272-B1iADE150,NDE150,NRE150,ZRE151201302-201306

DK.GRAY,TRIM1#

main73220-02272-E0iADE150,NDE150,NRE150,ZRE151..N201302-201306

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02390-B0iADE150,NDE150,NRE150,ZRE151..RHD200802-201205

DK.GRAY,TRIM1#

sub73230-02391

main73230-02390-E0iADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM)200802-201205

GREGE,TRIM4#

sub73230-02391

main73230-02391-B0iADE150,NDE150,NRE150,ZRE151..RHD201206-201306

DK.GRAY,TRIM1#

main73230-02391-E0iADE150,NDE150,NRE150,ZRE151..RHD..N201206-201306

GREGE,TRIM4#

main73230-02400-B0iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD200802-201205

DK.GRAY,TRIM1#

sub73230-02401

main73230-02400-E0iADE150,NDE150,NRE150,ZRE151..LHD..N200802-201205

GREGE,TRIM4#

sub73230-02401

main73230-02401-B0iADE150,NDE150,NRE150,ZRE151..LHD201206-201306

DK.GRAY,TRIM1#

main73230-02401-E0iADE150,NDE150,NRE150,ZRE151..LHD..N201206-201306

GREGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-12050-B0iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201306

DK.GRAY,TRIM1#

sub73233-60020

main73233-12050-E0iNDE150,ZRE151,ZZE150..N200802-201306

GREGE,TRIM4#

sub73233-60020

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02390-B0iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS)200802-201205

DK.GRAY,TRIM1#

sub73230-02391

main73230-02390-E0iNDE150..LHD..N;ADE150,NRE150,ZRE151..LHD..N..(DCRL,HTWC,HTWVM)200802-201205

GREGE,TRIM4#

sub73230-02391

main73230-02391-B0iADE150,NDE150,NRE150,ZRE151..LHD201206-201306

DK.GRAY,TRIM1#

main73230-02391-E0iADE150,NDE150,NRE150,ZRE151..LHD..N201206-201306

GREGE,TRIM4#

main73230-02400-B0iADE150,NDE150,NRE150,ZRE151..RHD200802-201205

DK.GRAY,TRIM1#

sub73230-02401

main73230-02400-E0iADE150,NDE150,NRE150,ZRE151..RHD..N200802-201205

GREGE,TRIM4#

sub73230-02401

main73230-02401-B0iADE150,NDE150,NRE150,ZRE151..RHD201206-201306

DK.GRAY,TRIM1#

main73230-02401-E0iADE150,NDE150,NRE150,ZRE151..RHD..N201206-201306

GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911060

main90109-11060

9017911010

main90179-11010

9167380616

main91673-80616

15 parts on this diagram · 2 diagrams in section
