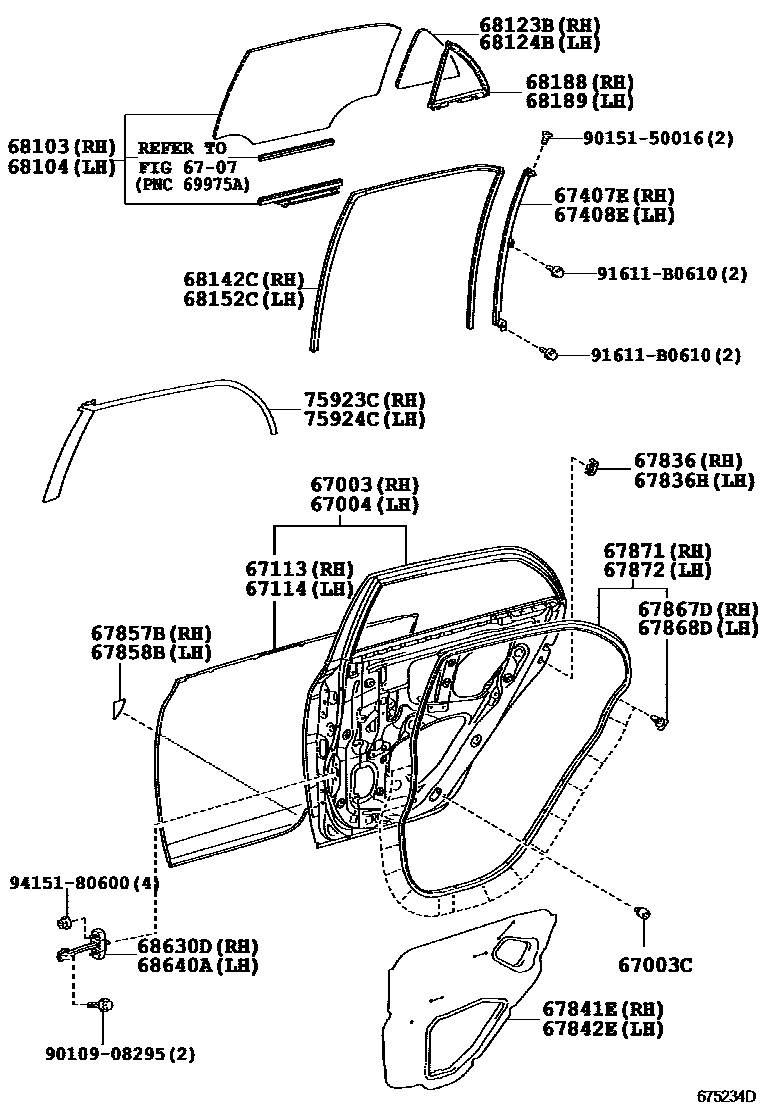

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02260iNDE150,ZRE151,ZZE150200802-201306

67003CCUSHION, REAR DOOR PANEL

main90541-09124iADE150,NDE150,ZRE151,ZZE150¥100200802-200806

main90541-09143iNDE150,ZRE151,ZZE150¥100200807-201306

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02270iNDE150,ZRE151,ZZE150200802-201306

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-02120iNDE150,ZRE151,ZZE150200802-201306

67114PANEL, REAR DOOR, OUTER LH

main67114-02120iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201306

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12290iNDE150,ZRE151,ZZE150200802-201306

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12290iNDE150,ZRE151,ZZE150200802-201306

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iNDE150,ZRE151,ZZE150¥210200802-201306

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iNDE150,ZRE151,ZZE150¥210200802-201306

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02160iADE150200802-201306

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02140iNDE150,ZRE151,ZZE150200802-201306

67857BPROTECTOR, REAR DOOR PANEL, RH

67858BPROTECTOR, REAR DOOR PANEL, LH

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iNDE150,ZRE151,ZZE150¥100200802-201306

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iNDE150,ZRE151,ZZE150¥100200802-201306

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02150iNDE150,ZRE151,ZZE150200802-201306

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02150iNDE150,ZRE151,ZZE150200802-201306

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02220iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

*TEM,T=3.5,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02210iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

*TEM,T=3.5,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02180iNDE150,ZRE151,ZZE150200802-201306

*TEM,T=3.5,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02180iNDE150,ZRE151,ZZE150200802-201306

*TEM,T=3.5,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-02170iNDE150,ZRE151,ZZE150200802-201306

68152CRUN, REAR DOOR GLASS, LH

main68152-02170iNDE150,ZRE151,ZZE150200802-201306

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02100iNDE150,ZRE151,ZZE150200802-201306

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02100iNDE150,ZRE151,ZZE150200802-201306

68630DCHECK ASSY, REAR DOOR, RH

main68630-02130iNDE150,ZRE151,ZZE150200802-201004

main68630-02131iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151201004-201306

68640ACHECK ASSY, REAR DOOR, LH

main68630-02130iNDE150,ZRE151,ZZE150200802-201004

main68630-02131iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151201004-201306

75923CTAPE, BLACK OUT, NO.2 RH

main75923-02110iNDE150,ZRE151,ZZE150..N200802-201306

75924CTAPE, BLACK OUT, NO.2 LH

main75924-02120iNDE150,ZRE151,ZZE150..N200802-201306

9010908295

main90109-08295¥80

9015150016

main90151-50016¥80

91611B0610

main91611-B0610¥70

9415180600

main94151-80600¥60

34 parts on this diagram · 2 diagrams in section
