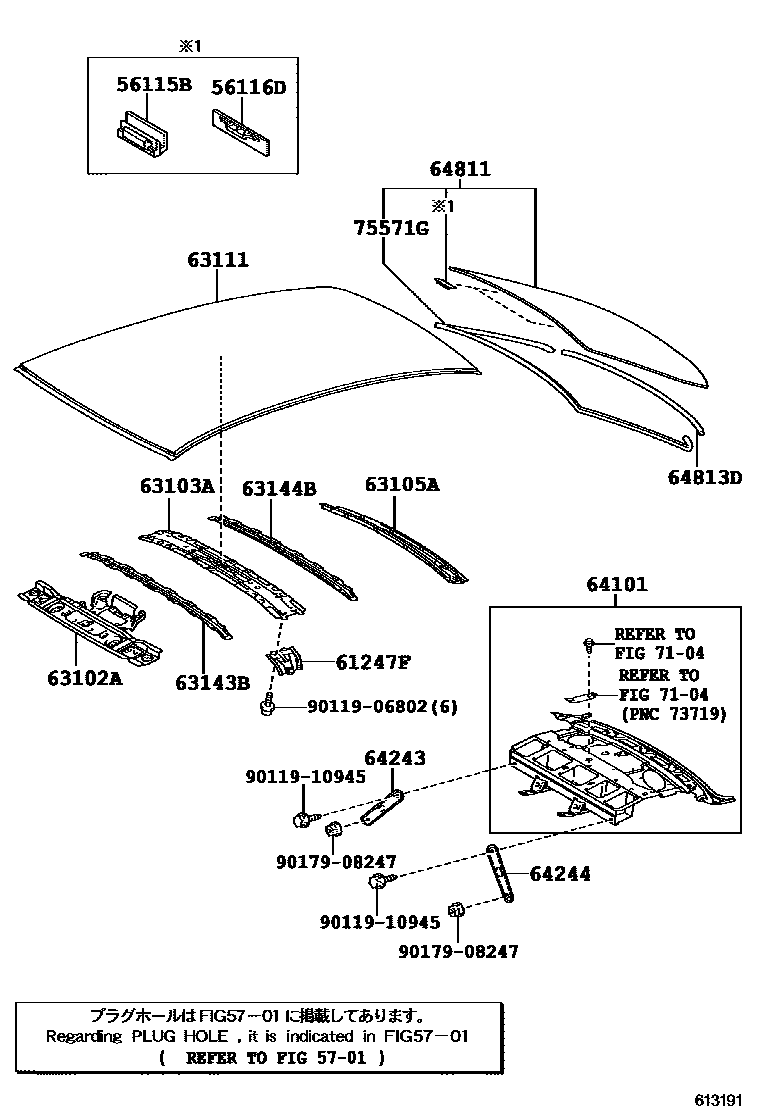

ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iNDE150,ZRE151,ZZE150200802-201306

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iNDE150,ZRE151,ZZE150200802-201306

5701

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-12050iNDE150,ZRE151,ZZE150200802-201306

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12230iNDE150,ZRE151,ZZE150200802-201306

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63141-02070iNDE150,ZRE151,ZZE150200802-201306

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-12290iNDE150,ZRE151,ZZE150200802-201306

63111PANEL, ROOF

main63111-02250iNDE150,ZRE151,ZZE150200802-201306

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-02040iNDE150,ZRE151,ZZE150200802-201306

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-02050iNDE150,ZRE151,ZZE150200802-201306

64101PANEL SUB-ASSY, UPPER BACK

main64101-02120iNDE150,ZRE151,ZZE150200802-201306

64243PANEL, ROOM PARTITION, NO.2 RH

main64243-02010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

64244PANEL, ROOM PARTITION, NO.2 LH

main64244-02010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

64811GLASS, BACK WINDOW

main64801-02010iNDE150,ZRE151,ZZE150200802-200903

*EHT,T=3.1,GREEN

main64801-02011iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201306

*EHT,T=3.1,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-12180iNDE150,ZRE151,ZZE150200802-201306

sub56117-74010

7104

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-12A10iNDE150,ZRE151,ZZE150200802-201306

9011906802

main90119-06802

9011910945

main90119-10945

9017908247

main90179-08247

20 parts on this diagram · 1 diagram in section
