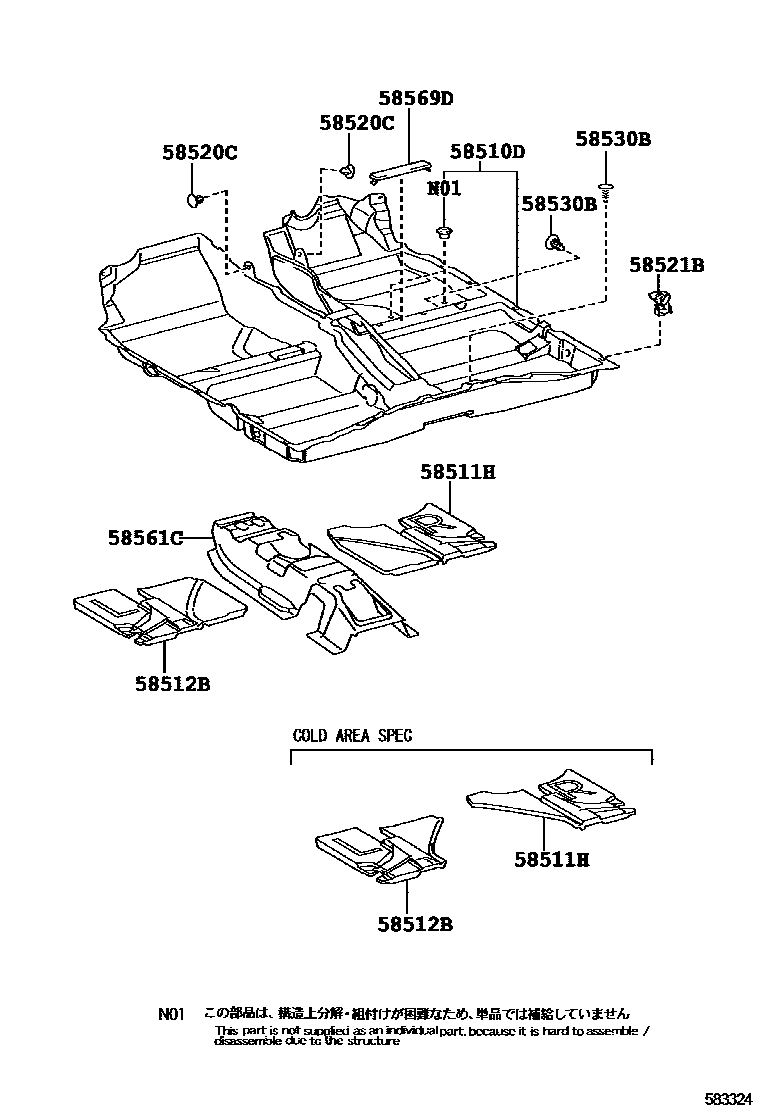

MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-02A40-B1supersedes 58510-02A50-B1iNDE150,ZRE151,ZZE150..LHD200802-200902

SUB COLD AREA SPEC,DK. GREY,TRIM1#

main58510-02A40-E0supersedes 58510-02A50-E0iADE150..LHD200802-200903

COLD AREA SPEC,GREGE,TRIM4#

main58510-02A60-B1supersedes 58510-02A70-B1iNDE150..RHD..D;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200902-201007

SUB COLD AREA SPEC,DK. GREY,TRIM1#

main58510-02A60-E0supersedes 58510-02A70-E0iADE150..RHD200802-200903

SUB COLD AREA SPEC,GREGE,TRIM4#

58511HMAT, FLOOR, FRONT RH

main58512-02030supersedes 58512-02040iNDE150,ZRE151,ZZE150200802-200902

COLD AREA SPEC

58512BMAT, FLOOR, FRONT LH

main58511-02040supersedes 58511-02050iNDE150,ZRE151,ZZE150200802-200902

COLD AREA SPEC

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2×2iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201007

DK.GRAY

58521BHOOK, FLOOR CARPET

main58521-02060×10iNDE150..DCRL200902-201007

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7×2iNDE150,NRE150,ZRE151..D201006-201306

DK.GRAY,TRIM1#,4#

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02130iADE150200802-200903

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02010-B0iNDE150,NRE150,ZRE151..D201006-201306

DK.GRAY,TRIM1#,4#

8 parts on this diagram · 2 diagrams in section
