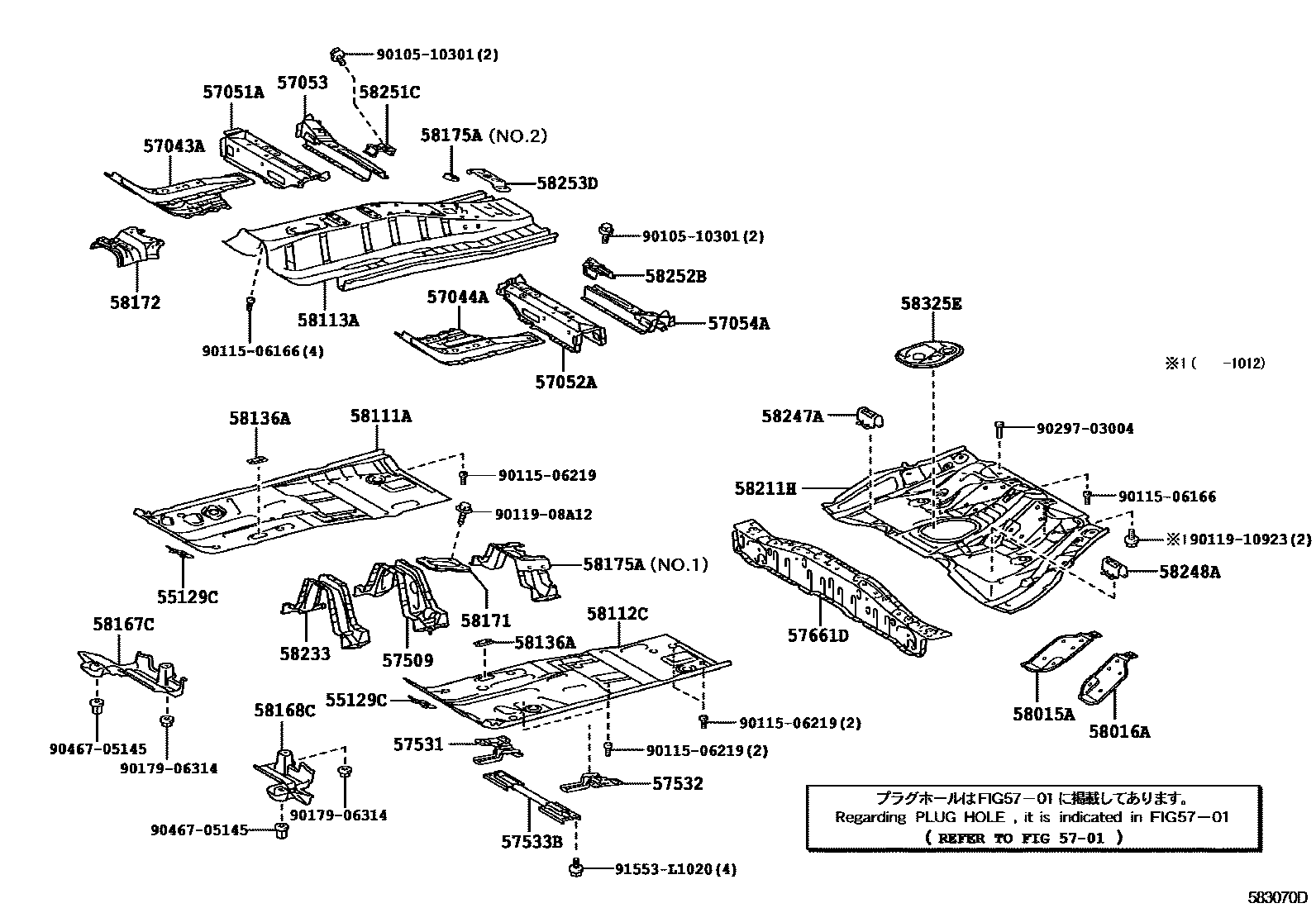

FLOOR PAN & LOWER BACK PANEL

0001 1FRONT FLOOR PANEL 0002 1REAR FLOOR PANEL 0004 1REAR FLOOR PANEL

55129CCOVER, DASH PANEL HOLE

main55129-12040iADE150,NDE150,NRE150,ZRE151201006-201306

RH

main55139-12050iADE150,NDE150,NRE150,ZRE151201006-201306

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-12020iADE150200802-200903

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-12020iNDE150,ZRE151,ZZE150200802-200902

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-02050iNDE150,ZRE151,ZZE150200802-200902

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-02040iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02050iNDE150,ZRE151,ZZE150200802-200902

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02030iNDE150,ZRE151,ZZE150200802-200902

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-12060iADE150,NDE150,ZRE151,ZZE150200802-200803

main57509-12061iNDE150,ZRE151,ZZE150200803-200902

main58161-12231iADE150,NDE150,NRE150,ZRE151201010-201306

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-12010iNDE150,ZRE151,ZZE150200802-200902

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-12010iNDE150,ZRE151,ZZE150200802-200902

57533BBRACE, FRONT FLOOR, CENTER

main57501-12020iNDE150..DCRL200902-201007

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-02100iNDE150..DCRL200902-201007

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12091iNDE150,ZRE151,ZZE150200802-200902

main58015-47041iNDE150..DCR;ADE150,NRE150,ZRE151200903-201006

sub58015-47042

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12061iNDE150,ZRE151,ZZE150200802-200902

main58016-47031iNDE150..DCR;ADE150,NRE150,ZRE151200903-201006

58111APAN, FRONT FLOOR, RH

main58111-02919iNDE150..DCRL200902-201007

58112CPAN, FRONT FLOOR, LH

main58112-02903iADE150200802-200903

58113APANEL, FRONT FLOOR, CENTER

main58113-02902iADE150200802-200903

main58113-02903iNDE150,ZRE151..6FS201006-201306

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12040×2iNDE150,ZRE151,ZZE150200802-200902

58167CCOVER, FRONT FLOOR, CENTER RH

main58167-02030iNDE150,ZRE151,ZZE150200802-200902

58168CCOVER, FRONT FLOOR, CENTER LH

main58168-02030iNDE150,ZRE151,ZZE150200802-200902

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-02080iNDE150..DCRL200902-201007

58172BRACKET, COMPUTER MOUNTING, NO.3

main58173-12020iNDE150,ZRE151,ZZE150200802-200902

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main57805-12150iADE150,NDE150,NRE150,ZRE151201006-201207

NO.1:REFER ILLUST.

main57805-12151iADE150,NDE150,NRE150,ZRE151201208-201306

NO.1:REFER ILLUST.

main58176-12020iADE150200802-200903

NO.2:REFER ILLUST.

58211HPAN, CENTER FLOOR

main58211-02909iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

58233BRACKET, EXHAUST PIPE MOUNTING

main58203-12070iNDE150,ZRE151,ZZE150200802-200902

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-12090iADE150,NDE150,NRE150,ZRE151201006-201306

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-12090iNDE150,ZRE151,ZZE150200802-200902

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-12040iNDE150,ZRE151,ZZE150200802-200902

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-12040iNDE150,ZRE151,ZZE150200802-200902

58253DBRACKET, PARKING BRAKE CABLE

main58253-12060iNDE150,ZRE151,ZZE150200802-200902

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12130iNDE150,ZRE151,ZZE150200802-200902

9010510301

main90105-10301

9011506166

main90115-06166

9011506219

main90115-06219

9011908A12

main90119-08A12

9011910923

main90119-10923

9017906314

main90179-06314

9029703004

main90297-03004

9046705145

main90467-05145

91553L1020

main91553-L1020

41 parts on this diagram · 3 diagrams in section
