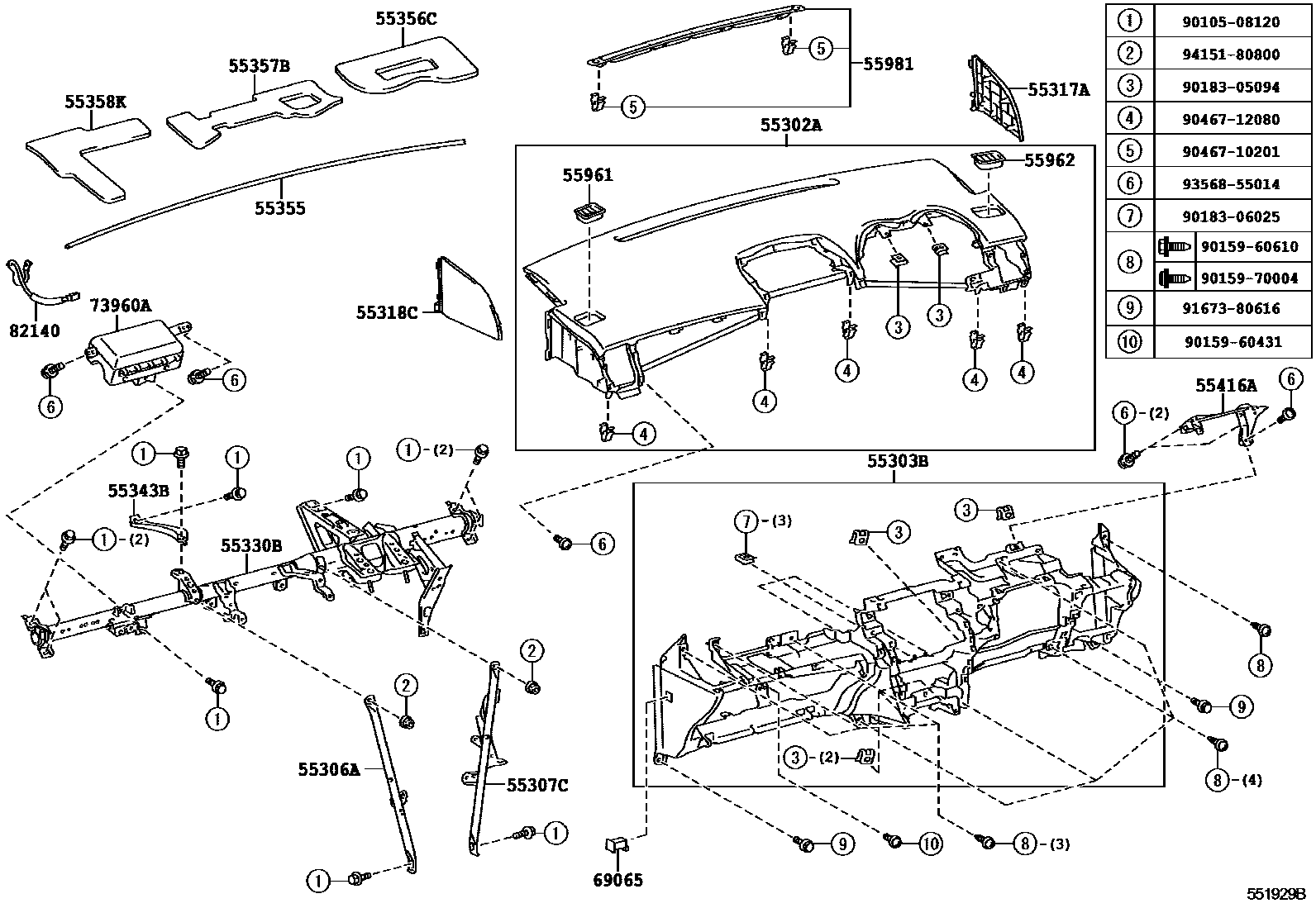

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1DRIVER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1CENTER 0009 1CENTER 0010 1CENTER 0011 1PASSENGER SIDE 0012 1PASSENGER SIDE 0013 1PASSENGER SIDE 0014 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-02210-B0iADE150,NDE150,ZRE151,ZZE150..LHD200802-200805

DK.GRAY,TRIM1#

main55302-02210-E0iZRE151,ZZE150..LHD;ADE150,NDE150..LHD..N200802-200805

ASH BROWN,TRIM4#

main55302-02211-B0iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

DK.GRAY,TRIM1#,4#

main55302-02211-E0iNDE150,ZRE151,ZZE150..LHD..N200806-200902

ASH BROWN,TRIM4#

main55302-02220-B0iADE150,NDE150,ZRE151,ZZE150..RHD200802-200805

DK.GRAY,TRIM1#

main55302-02220-E0iADE150,ZRE151,ZZE150..RHD200802-200805

ASH BROWN,TRIM4#

main55302-02221-B0iNDE150..RHD..D;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200902-201007

DK.GRAY,TRIM1#

main55302-02221-E0iZRE151,ZZE150..RHD..N200806-200902

ASH BROWN,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-02230-B0iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD200902-201007

DK.GRAY,TRIM1#

main55303-02230-E0iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

GREGE,TRIM4#

main55303-02240-B0iNDE150..RHD..D;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200902-201007

DK.GRAY,TRIM1#

main55303-02240-E0iZRE151,ZZE150..RHD200802-200902

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02250supersedes 55306-02260iNDE150,ZRE151,ZZE150..LHD200802-200902

main55306-02260iNDE150..RHD..DCR;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200902-201006

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02100supersedes 55307-02260iNDE150..LHD..DCR;ADE150,NRE150,ZRE151..LHD..(DCRL,HTWC,HTWVM)200902-201006

main55307-02120supersedes 55307-02270iNDE150,ZRE151,ZZE150..RHD200802-200902

55317APANEL, INSTRUMENT SIDE, RH

main55317-02110-B0iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201007

DK.GRAY,TRIM1#

main55317-02110-E0iADE150200802-200903

GREGE,TRIM4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-02010-B0iNDE150,ZRE151,ZZE150200802-200902

DK.GRAY,TRIM1#

main55318-02010-E0iADE150,NDE150,NRE150,ZRE151..N201006-201306

GREGE,TRIM4#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02400iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD200902-201007

main55330-02420iADE150,NDE150,NRE150,ZRE151..RHD201006-201306

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12070iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12110iADE150,NDE150,NRE150,ZRE151201006-201306

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-02100iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-02090iADE150,NDE150,NRE150,ZRE151201006-201306

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-02050iNDE150,ZRE151,ZZE150200802-200902

55416ARETAINER, METER HOOD, NO.1

main55416-02080iADE150..LHD200802-200903

main55416-02090iADE150,NDE150,NRE150,ZRE151..RHD201006-201306

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-02070-B0iNDE150,NRE150,ZRE151..D201006-201306

DK.GRAY,TRIM1#,4#

main55961-02070-E0iNDE150,ZRE151,ZZE150..N200802-200902

ASH BROWN,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-02030-B0iNDE150,NRE150,ZRE151..D201006-201306

DK.GRAY,TRIM1#,4#

main55962-02030-E0iNDE150,ZRE151,ZZE150..N200802-200902

ASH BROWN,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-02090iNDE150..LHD..DCRL200902-201007

main55981-02120iNDE150..RHD..DCR;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200902-201006

main55981-02020iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER

main55981-02030iADE150,NDE150,NRE150,ZRE151..RHD..N201006-201306

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER

main55981-02070supersedes 55981-02090iADE150..LHD200802-200903

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main55981-02080supersedes 55981-02090iADE150..LHD200802-200903

AUTO AIR CONDITIONER

main55981-02100supersedes 55981-02120iADE150..RHD200802-200903

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main55981-02110supersedes 55981-02120iZRE151,ZZE150..RHD..N200802-200902

AUTO AIR CONDITIONER

69065CYLINDER SUB-ASSY, AIRBAG CUT OFF SW

main69065-02010iADE150,NDE150,NRE150,ZRE151201212-201306

main69065-12400iZZE150..RHD;ZRE151..RHD..D200802-200902

AIR BAG MANUAL ON-OFF SWITCH-WITHOUT

main69065-12450iNDE150..DCRL201003-201007

sub69065-12460

main69065-74010iADE150,NDE150,NRE150,ZRE151201006-201212

sub69065-12460

main69065-47040iADE150,ZRE151..N201006-201212

STARTING SYSTEM-PUSH BUTTON

sub69065-12460

main69065-53010supersedes 69065-12400iADE150,ZRE151..N..(DCRL,HTWC,HTWVM)200902-201002

STARTING SYSTEM-PUSH BUTTON

sub69065-12460

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02090iNDE150,ZRE151,ZZE150200802-200902

main73960-02091iADE150,NDE150,NRE150,ZRE151201302-201306

sub73960-02092

82140WIRE ASSY, INSTRUMENT PANEL

main82140-02160iNDE150..DCRL200902-201007

9010508120

main90105-08120

9015960431

main90159-60431

9015960610

main90159-60610

9015970004

main90159-70004

9018305094

main90183-05094

9018306025

main90183-06025

9046710201

main90467-10201

9046712080

main90467-12080

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

30 parts on this diagram · 14 diagrams in section
