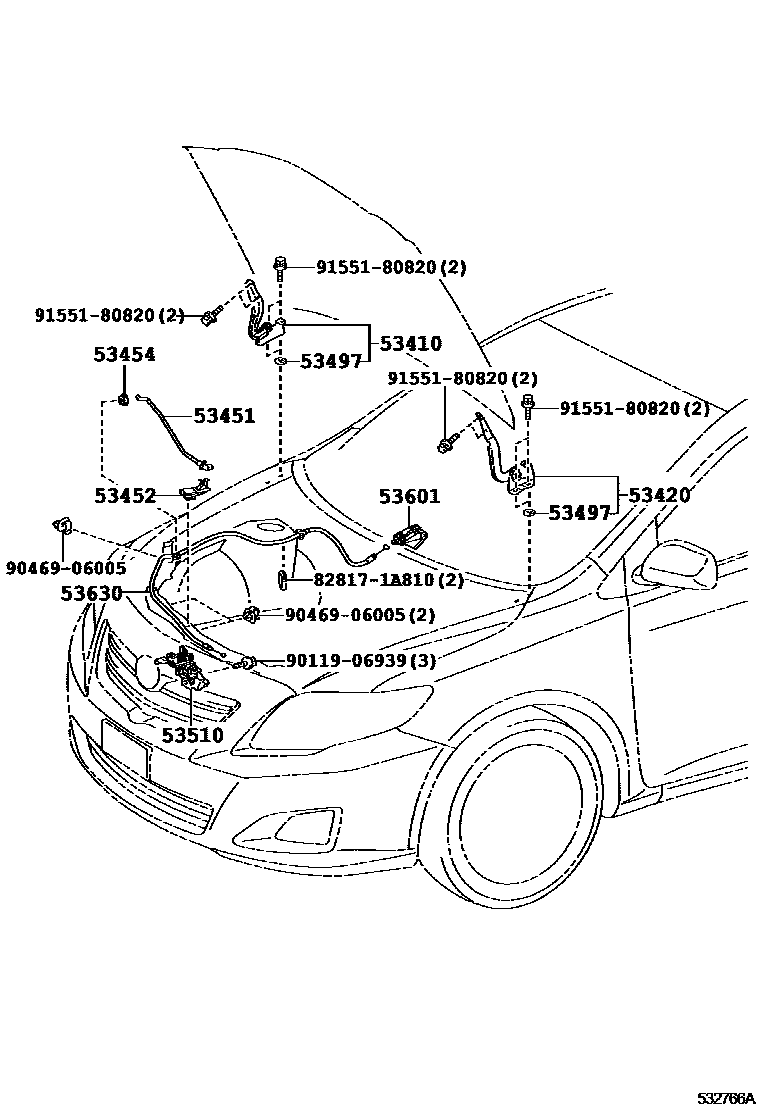

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-02110iNDE150,ZRE151,ZZE150200802-201306

53420HINGE ASSY, HOOD, LH

main53420-02110iNDE150,ZRE151,ZZE150200802-201306

53451ROD, HOOD SUPPORT

main53440-02070iNDE150,ZRE151,ZZE150200802-201306

53452HOLDER, HOOD STAY

main53452-02050iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201306

53454CLIP, HOOD SUPPORT ROD

main53454-12030iADE150200802-201306

53497PAD, HOOD HINGE, NO.1

main53497-0K020iADE150200802-201306

T=1.0

main53497-0K070iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201306

T=2.0

53510LOCK ASSY, HOOD

main53510-02280iADE150200802-201007

sub53510-02281

main53510-02280iADE150,NDE150,NRE150,ZRE151201006-201105

ECO

sub53510-02281

main53510-02281iADE150,NDE150,NRE150,ZRE151201106-201306

ECO

main53510-02290iNRE150200902-201105

STOP & START SYSTEM PACKAGE

sub53510-02291

main53510-02291iNRE150201106-201306

STOP & START SYSTEM PACKAGE

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02050-B0iADE150,NDE150,NRE150,ZRE151201103-201306

DK.GRAY,TRIM1#

main53601-02050-E0iADE150,NDE150,NRE150,ZRE151..N201103-201306

GREGE,TRIM4#

main53601-52010-B3iNDE150,ZRE151,ZZE150200802-201102

DK.GRAY,TRIM1#

sub53601-52010

main53601-52010-E4iNDE150..N;ZRE151,ZZE150200802-201102

GREGE,TRIM4#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02150iADE150,NDE150,NRE150,ZRE151..LHD200802-201208

sub53630-12760

main53630-02160iNDE150..RHD..DCR;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200802-201208

sub53630-12770

main53630-12760iADE150,NDE150,NRE150,ZRE151..LHD201208-201306

main53630-12770iADE150,NDE150,NRE150,ZRE151..RHD201208-201306

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9011906939

main90119-06939

9046906005

main90469-06005

9155180820

main91551-80820

13 parts on this diagram · 1 diagram in section
