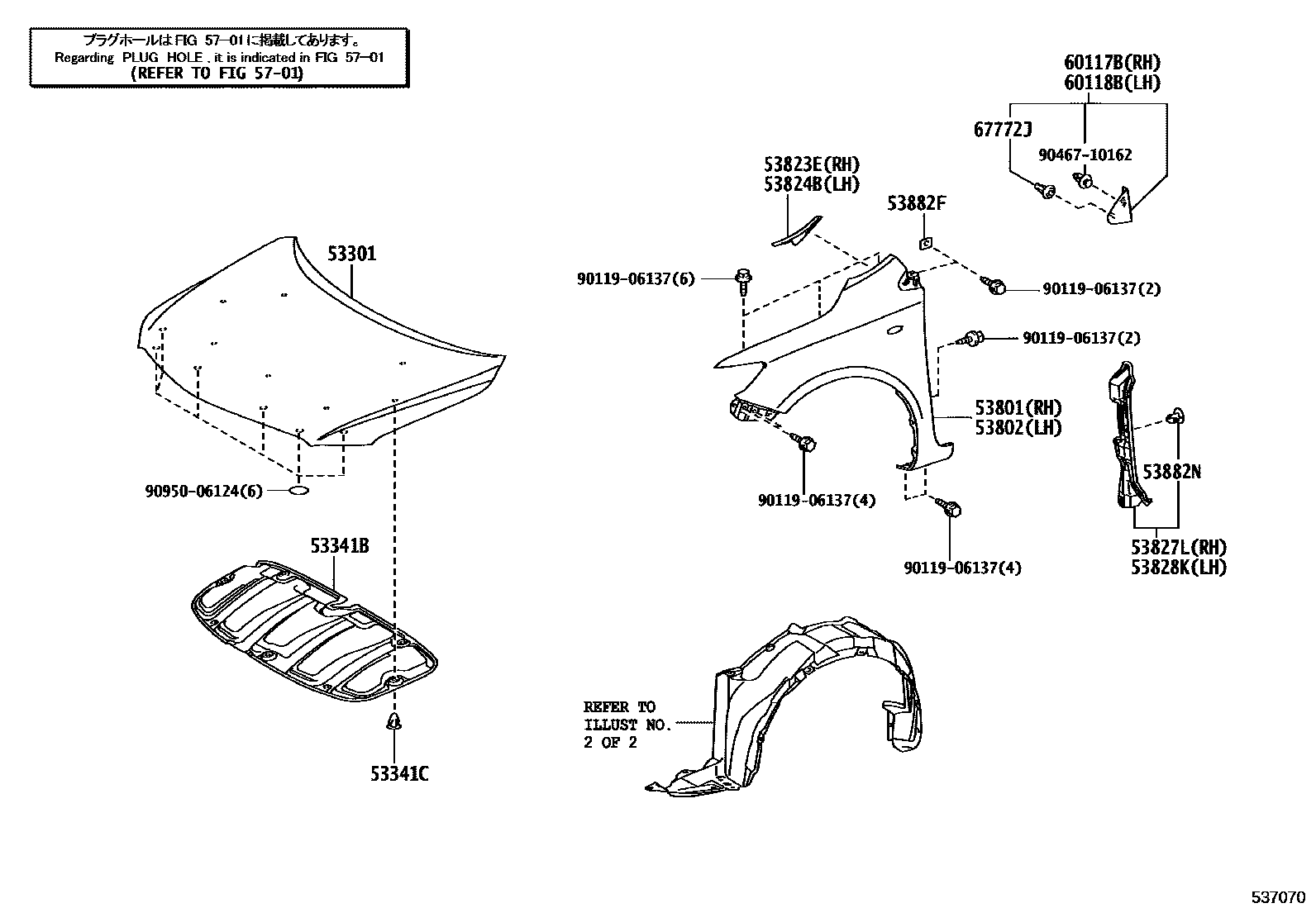

HOOD & FRONT FENDER

0001 1 0003 1FENDER LINER 0005 1 0007 1FENDER LINER

53301HOOD SUB-ASSY

main53301-02170iNDE150,ZRE151,ZZE150200802-201306

53341BINSULATOR, HOOD

main53341-02140iNDE150200802-201306

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNDE150¥120200802-201306

53801FENDER SUB-ASSY, FRONT RH

main53811-02190iNDE150,ZRE151,ZZE150200802-201007

main53811-02310iADE150,NDE150,NRE150,ZRE151201006-201306

53802FENDER SUB-ASSY, FRONT LH

main53812-02190iNDE150,ZRE151,ZZE150200802-201007

main53812-02310iADE150,NDE150,NRE150,ZRE151201006-201306

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-12030iNDE150,ZRE151,ZZE150¥640200802-201306

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-12020iNDE150,ZRE151,ZZE150¥640200802-201306

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02080iNDE150,ZRE151,ZZE150200802-201306

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02080iNDE150,ZRE151,ZZE150200802-201306

53882FSEAL, FRONT FENDER

main53882-16030iNDE150,ZRE151,ZZE150¥60200802-201306

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-11050-E1iNDE150,ZRE151,ZZE150200802-201306

SANDAL WOOD

sub90467-11050¥90

5701

60117BCOVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02050iNDE150,ZRE151,ZZE150200802-201306

60118BCOVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02050iNDE150,ZRE151,ZZE150200802-201306

67772JCAP, FRONT PILLAR COVER RETAINER

main67772-95J03iNDE150,ZRE151,ZZE150¥170200802-201306

9011906137

main90119-06137¥70

9046710162

main90467-10162¥90

9095006124

main90950-06124¥90

18 parts on this diagram · 4 diagrams in section
