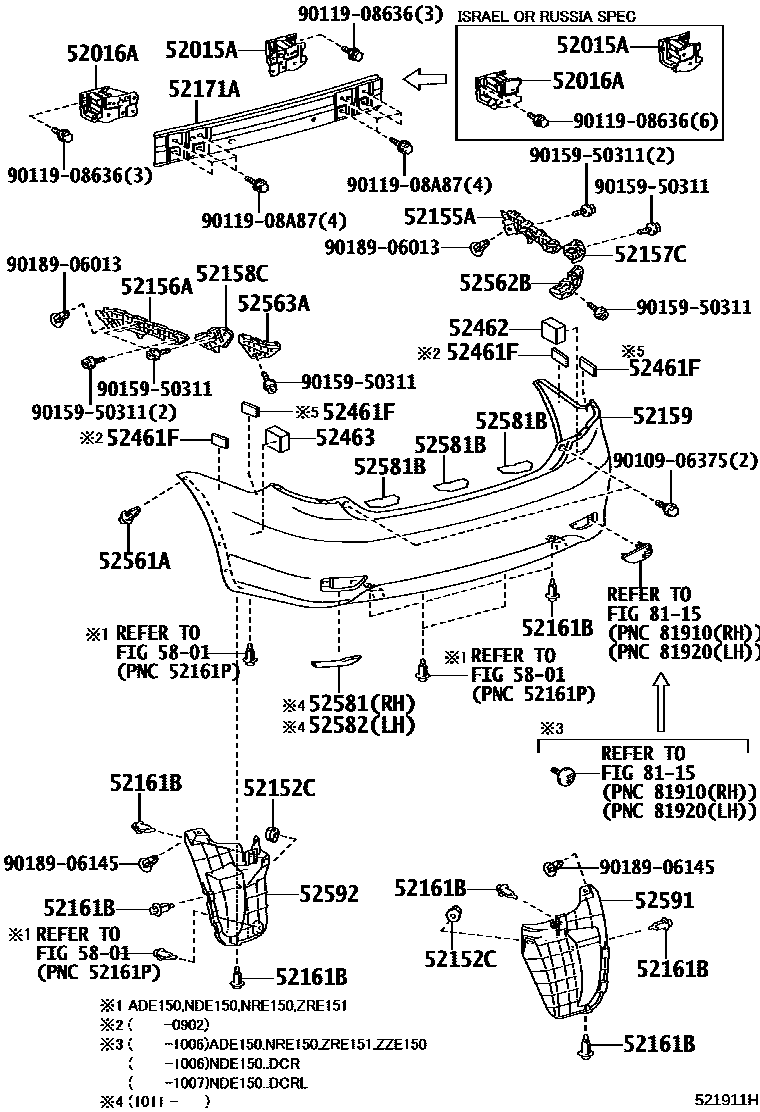

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-02050iNDE150,ZRE151,ZZE150200802-201306

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-02040iNDE150,ZRE151,ZZE150200802-201306

52152CCLIP, REAR BUMPER SIDE

main90467-06121iNDE150..6F;NDE150..6FS..DCRL;ADE150,NRE150,ZRE151¥220201006-201306

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-02050iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-02040iNDE150,ZRE151,ZZE150200802-201306

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-02030iNDE150,ZRE151,ZZE150200802-201306

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-02020iNDE150,ZRE151,ZZE150200802-201306

52159COVER, REAR BUMPER

main52159-02957iNDE150,ZRE151,ZZE150200802-201007

PAINT REQ.

main52159-02976iADE150,NDE150,NRE150,ZRE151201006-201306

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iADE150,ZZE150;NDE150,ZRE151..5F,5FS¥120200802-201306

sub52161-0K040¥120

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-02080iNDE150,ZRE151,ZZE150¥7,700200802-201306

52461FPAD, REAR BUMPER

main52461-02050iADE150,NDE150,ZRE151,ZZE150200802-201306

52462PAD, REAR BUMPER, RH

main52462-12090iNDE150,ZRE151,ZZE150¥460200802-201007

main52462-12120iADE150,NDE150,NRE150,ZRE151201006-201306

52463PAD, REAR BUMPER, LH

main52462-12090iNDE150,ZRE151,ZZE150¥460200802-201007

main52462-12120iADE150,NDE150,NRE150,ZRE151201006-201306

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05090-B1iNDE150,ZRE151,ZZE150200802-201209

DK.GRAY

sub90467-05090¥110

main90467-05170iADE150,NDE150,NRE150,ZRE151¥80201210-201306

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02060iNDE150,ZRE151,ZZE150200802-201007

main52562-02140iADE150,NDE150,NRE150,ZRE151201006-201306

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02040iNDE150,ZRE151,ZZE150200802-201007

main52563-02110iADE150,NDE150,NRE150,ZRE151201006-201306

52581PROTECTOR, REAR BUMPER, RH

main52581-02070iADE150,NDE150,NRE150,ZRE151201011-201306

52581BPROTECTOR, REAR BUMPER

main52581-02040iNDE150,ZRE151,ZZE150200802-201306

52582PROTECTOR, REAR BUMPER, LH

main52582-02010iADE150,NDE150,NRE150,ZRE151201011-201306

52591SEAL, REAR BUMPER SIDE, RH

main52591-02150iNDE150,ZRE151,ZZE150200802-201306

52592SEAL, REAR BUMPER SIDE, LH

main52592-02140iNDE150,ZRE151,ZZE150200802-201306

5801

8115

9010906375

main90109-06375¥80

9011908636

main90119-08636¥90

9011908A87

main90119-08A87¥100

9015950311

main90159-50311¥70

9018906013

main90189-06013¥70

9018906145

main90189-06145¥80

29 parts on this diagram · 1 diagram in section
