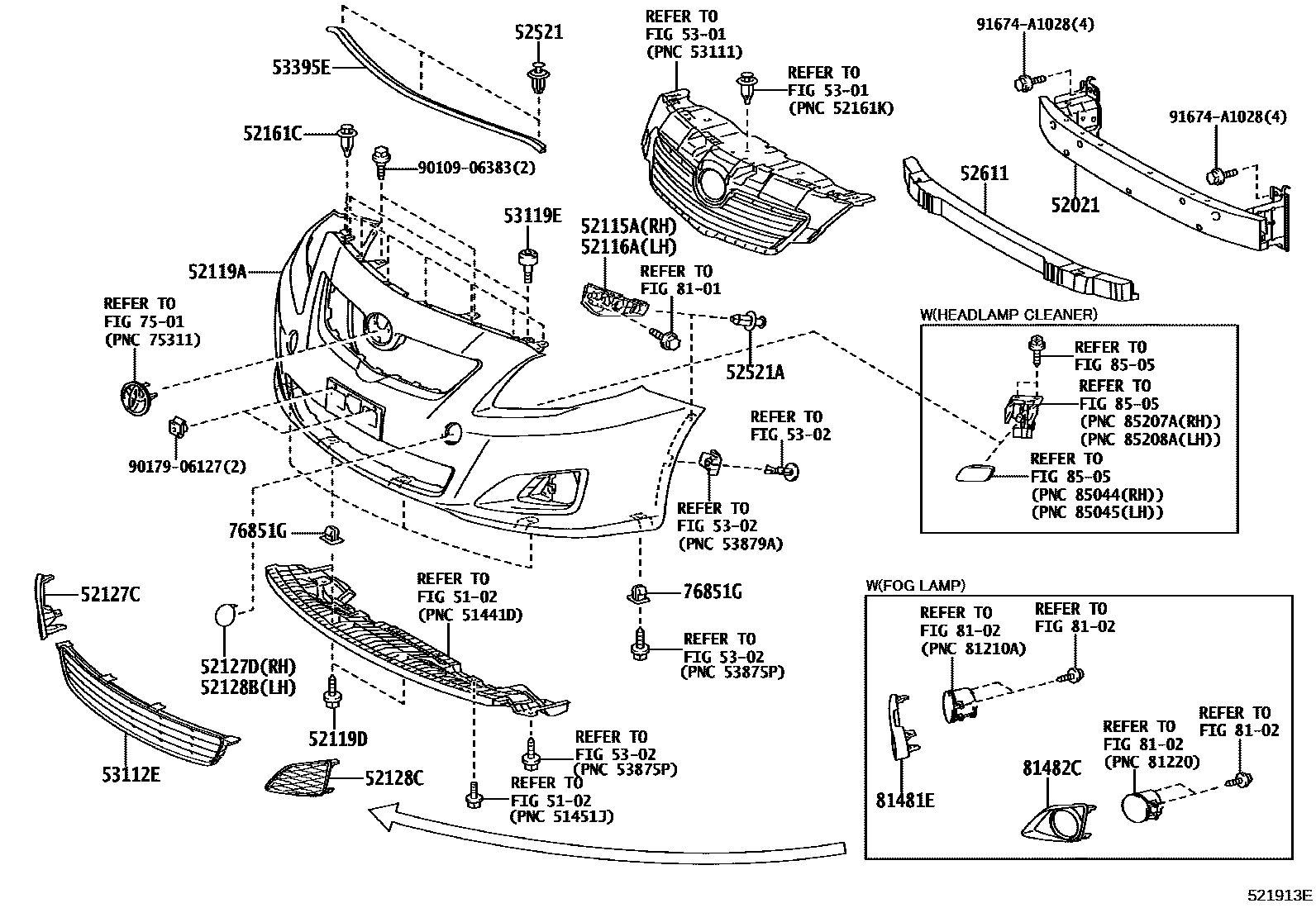

FRONT BUMPER & BUMPER STAY
5102
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.,HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH
PAINT REQ.,HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH
52119DSCREW, NO.1
52127CCOVER, FRONT BUMPER HOLE
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52128CCOVER, FRONT BUMPER HOLE, LH
52161CPIECE, FRONT BUMPER
sub52161-0K040
52521RETAINER, FRONT BUMPER, UPPER CENTER
BLACK
52521ACLIP(FOR FRONT BUMPER RETAINER)
DK.GRAY
52611ABSORBER, FRONT BUMPER ENERGY
5301
5302
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
53119EPROTECTOR, RADIATOR GRILLE
53395ESEAL, HOOD TO FRONT END PANEL
7501
76851GGROMMET, SCREW, NO.1
8101
8102
81481ECOVER, FOG LAMP, RH
RADIATOR GRILLE-PLATING&FOG LAMP-WITH
RADIATOR GRILLE-WITH(BODY COLOR & PLATED)&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH
81482CCOVER, FOG LAMP, LH
RADIATOR GRILLE-PLATING&FOG LAMP-WITH
RADIATOR GRILLE-WITH(BODY COLOR & PLATED)&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH
8505
9010906383
main90109-06383
9017906127
main90179-06127
91674A1028
main91674-A1028
29 parts on this diagram · 2 diagrams in section
