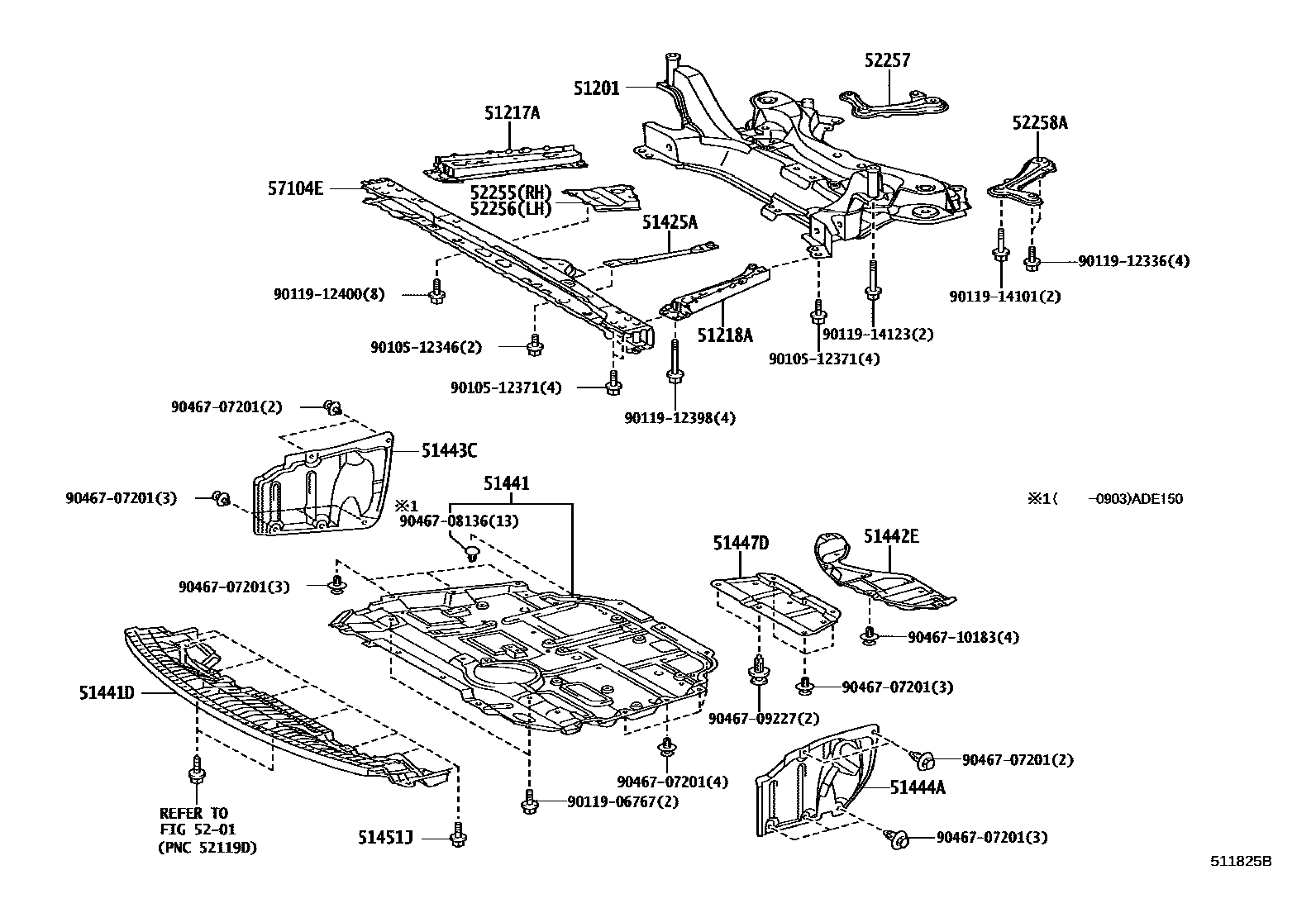

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0004 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02122iNDE150,ZRE151,ZZE150200802-201306

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-02020iNDE150,ZRE151,ZZE150200802-201306

sub51107-02021

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-02020iNDE150,ZRE151,ZZE150200802-201306

sub51108-02021

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-02020iADE150,NDE150,NRE150,ZRE151200802-201306

51441COVER, ENGINE UNDER, NO.1

main51410-02130iADE150200802-200903

main51410-02150iZRE151200902-201306

main51410-02160iADE150200903-201306

main51441-02231iNDE150200802-200902

main51441-02240iNDE150,NRE150200802-201306

51441DCOVER, ENGINE UNDER

main52618-02020iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201012

main52618-02021iADE150,NDE150,NRE150,ZRE151201101-201306

51442ECOVER, ENGINE UNDER, NO.2

main51442-02230iNDE150200802-201306

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02060iADE150200802-201306

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02050iNDE150,ZRE151,ZZE150200802-201306

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02020iNDE150,ZRE151,ZZE150200802-201306

51451JBOLT, NO.1

main90119-06767iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02020iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

sub52255-02021

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02020iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

sub52256-02021

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02030iADE150,NDE150,ZRE151,ZZE150200802-200806

sub52257-02031

main52257-02031iNDE150,ZRE151,ZZE150200807-201306

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02030iADE150,NDE150,ZRE151,ZZE150200802-200806

sub52258-02031

main52258-02031iNDE150,ZRE151,ZZE150200807-201306

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-12270iNDE150,ZRE151,ZZE150200802-201306

9010512346

main90105-12346

9010512371

main90105-12371

9011906767

main90119-06767

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914101

main90119-14101

9011914123

main90119-14123

9046707201

main90467-07201

9046708136

main90467-08136

9046709227

main90467-09227

9046710183

main90467-10183

29 parts on this diagram · 2 diagrams in section
