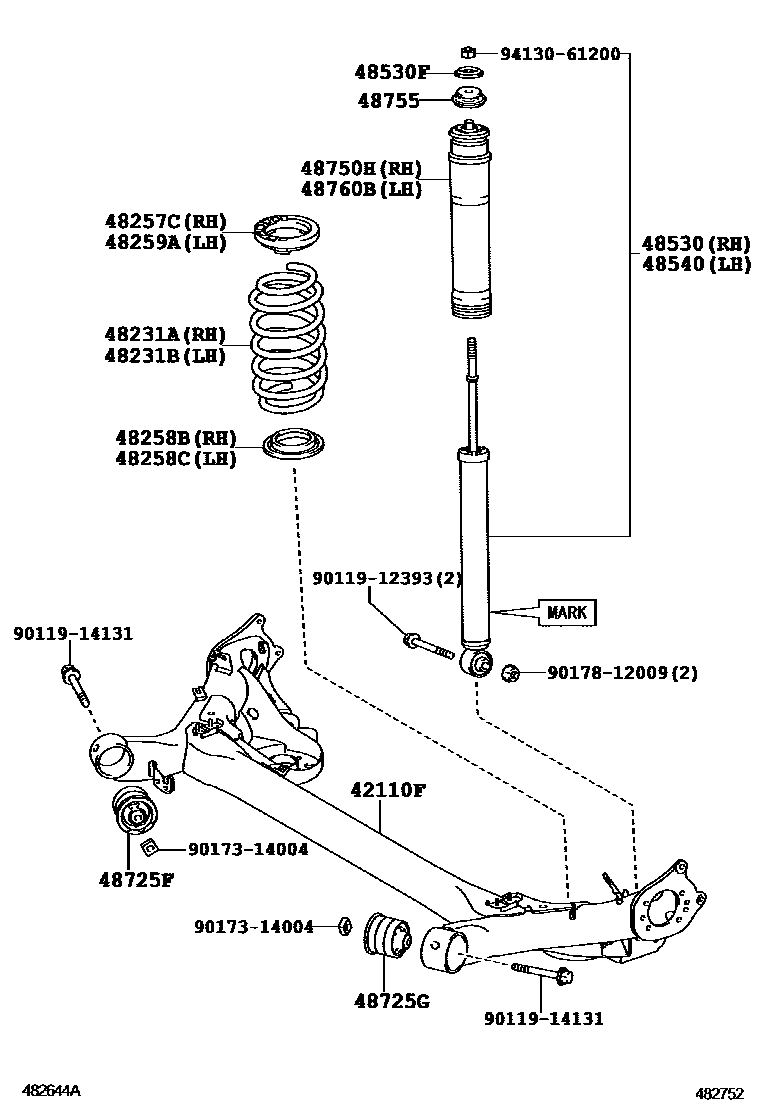

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42101-02270iADE150,NDE150,ZRE151,ZZE150200802-200804

main42101-02300iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

48231ASPRING, COIL, REAR RH

main48231-02610iADE150,NDE150,NRE150,ZRE151201006-201306

main48231-02620supersedes 48231-02610iNDE150..DCRL200902-201007

ROUGH ROAD AREA SPEC

48231BSPRING, COIL, REAR LH

main48231-02610iADE150,NDE150,NRE150,ZRE151201006-201306

main48231-02620supersedes 48231-02610iZRE151..LHD;ADE150,NDE150,NRE150201006-201306

ROUGH ROAD AREA SPEC.-ROUGH ROAD AREA SPEC

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0D010iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0D050iADE150200802-200903

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0D050iNDE150,ZRE151,ZZE150200802-200902

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0D010iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09R00iADE150,NDE150,NRE150,ZRE151201006-201112

MARK 48530-02491

main48530-09R01iADE150,NDE150,NRE150,ZRE151201201-201306

MARK 48530-02492

main48530-09N80supersedes 48530-09N70iADE150,NDE150,ZRE151,ZZE150200802-200803

MARK 48530-02500,ROUGH ROAD AREA SPEC

main48530-09R10supersedes 48530-09R00iADE150200803-200903

MARK 48530-02501,ROUGH ROAD AREA SPEC

main48530-09R11iZRE151..LHD;ADE150,NDE150,NRE150201201-201306

MARK 48530-02502,ROUGH ROAD AREA SPEC.-ROUGH ROAD AREA SPEC

48530FRETAINER, SHOCK ABSORBER CUSHION(FOR REAR)

main90948-02159×2iNDE150,ZRE151,ZZE150200802-200902

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09R00iADE150,NDE150,NRE150,ZRE151201006-201112

MARK 48530-02491

main48530-09R01iADE150,NDE150,NRE150,ZRE151201201-201306

MARK 48530-02492

main48530-09N80supersedes 48530-09N70iADE150,NDE150,ZRE151,ZZE150200802-200803

MARK 48530-02500,ROUGH ROAD AREA SPEC

main48530-09R10supersedes 48530-09R00iZRE151..LHD;ADE150,NDE150,NRE150201006-201112

MARK 48530-02501,ROUGH ROAD AREA SPEC.-ROUGH ROAD AREA SPEC

main48530-09R11iZRE151..LHD;ADE150,NDE150,NRE150201201-201306

MARK 48530-02502,ROUGH ROAD AREA SPEC.-ROUGH ROAD AREA SPEC

48725FBUSH, REAR AXLE CARRIER, RH

main48725-02200iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

48725GBUSH, REAR AXLE CARRIER, LH

main48725-02200iNDE150,ZRE151,ZZE150200802-200902

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-02101iNDE150,ZRE151,ZZE150200802-200902

48755SUPPORT, REAR SUSPENSION

main48755-02121×2iADE150,NDE150,NRE150,ZRE151201008-201306

NO.1

sub48755-02080

main48755-02131×2iADE150200802-200903

sub48755-02090

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-02101iNDE150,ZRE151,ZZE150200802-200902

9011912393

main90119-12393

9011914131

main90119-14131

9017314004

main90173-14004

9017812009

main90178-12009

9413061200

main94130-61200

20 parts on this diagram · 2 diagrams in section
