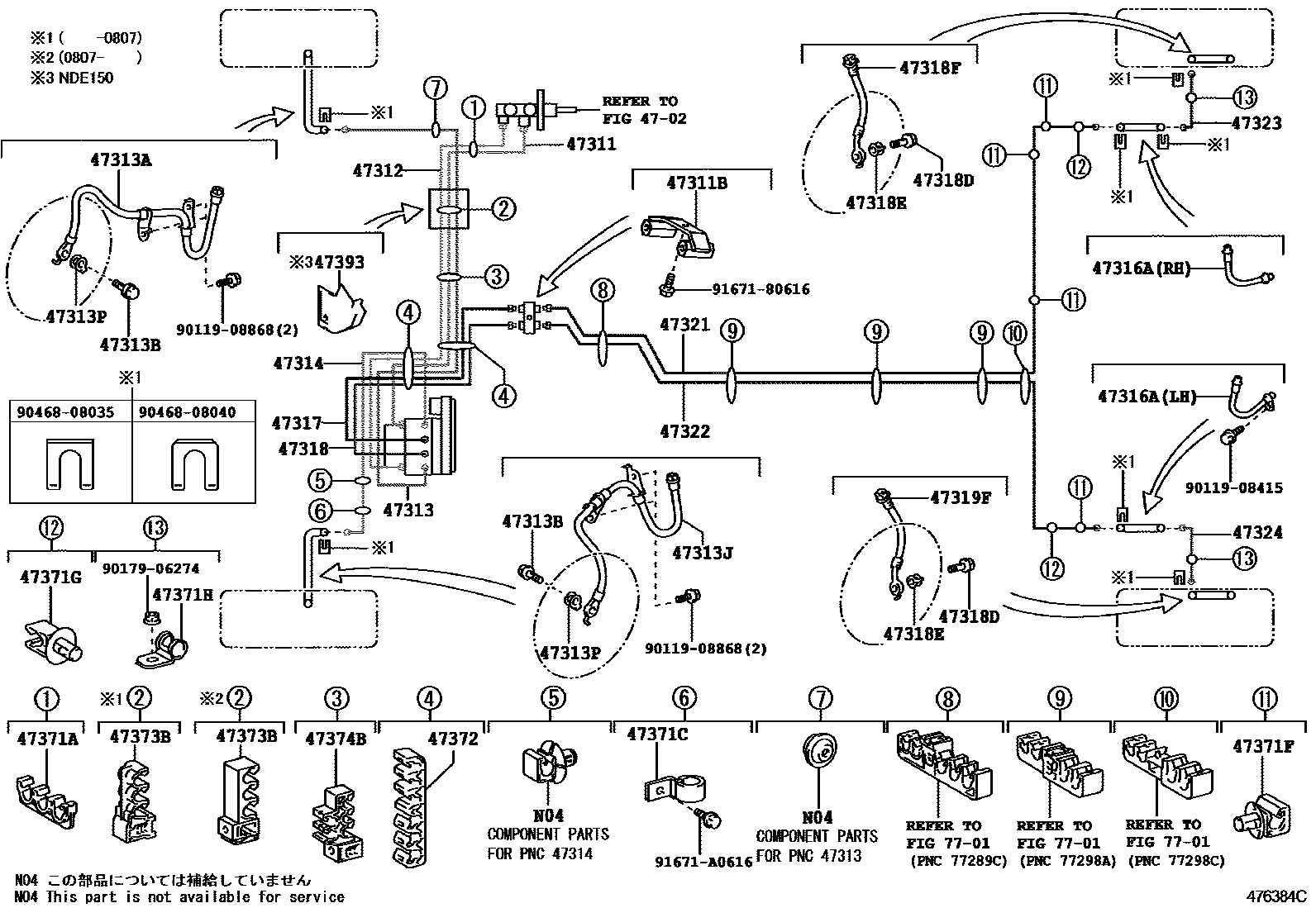

BRAKE TUBE & CLAMP
4702
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
LH
RH
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
47371CCLAMP, BRAKE TUBE, NO.7
47371FCLAMP, BRAKE TUBE, NO.10
47371GCLAMP, BRAKE TUBE, NO.11
47371HCLAMP, BRAKE TUBE, NO.12
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
NO.1
NO.2
47374BCLAMP, BRAKE TUBE, NO.4
47393INSULATOR, BRAKE TUBE HEAT
7701
9011908415
9011908868
9017906274
9046808035
9046808040
9167180616
91671A0616
38 parts on this diagram · 4 diagrams in section
