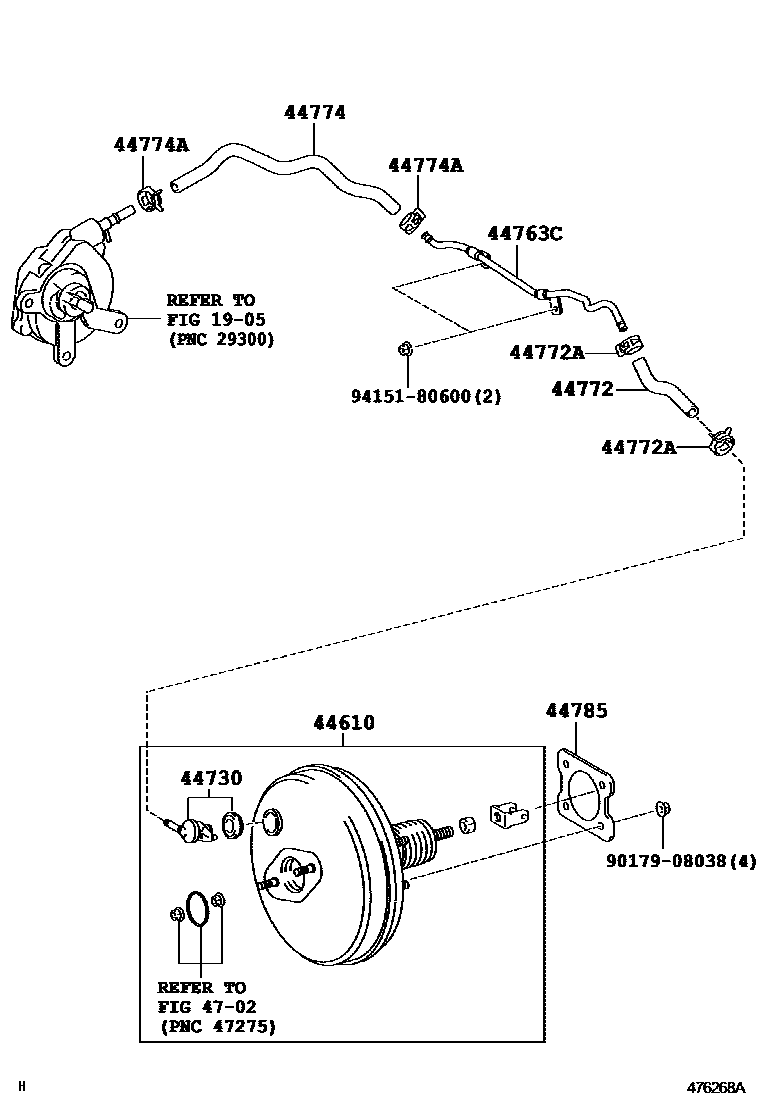

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

1905

44610BOOSTER ASSY, BRAKE

main44610-09400iADE150..LHD;NDE150..LHD..(5F,5FS)200802-201007

sub44610-09741

main44610-09420iADE150..RHD;NDE150..RHD..5F200802-201007

sub44610-09721

main44610-09430iZRE151,ZZE150..LHD200802-201006

sub44610-09711

main44610-09450iZRE151,ZZE150..RHD200802-201006

sub44610-09731

main44610-09460iZRE151..RHD201006-201209

main44610-09461iZRE151..RHD201210-201306

main44610-09710iNRE150..LHD201006-201209

sub44610-09711

main44610-09711iNRE150..LHD201210-201306

main44610-09720iADE150,NDE150..RHD201006-201209

sub44610-09721

main44610-09721iADE150,NDE150..RHD201210-201306

main44610-09730iNRE150..RHD201006-201209

sub44610-09731

main44610-09731iNRE150..RHD201210-201306

main44610-09740iADE150,NDE150,ZRE151..LHD201006-201209

sub44610-09741

main44610-09741iADE150,NDE150,ZRE151..LHD201210-201306

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iNDE150,ZRE151,ZZE150¥1,430200802-201306

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12400iADE150,NDE150,NRE150,ZRE151..LHD200802-201306

main44763-12420iZZE150..RHD¥1,460200802-200902

main44763-12430iZZE150..LHD200802-200902

main44763-12440iZRE151..RHD¥1,200200802-201306

main44763-12450iNDE150..RHD..D200802-201306

main44763-12470iNDE150..LHD200802-200902

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12580iADE150..LHD..DCRL;NDE150,ZRE151..LHD200802-201306

main44772-12610iNDE150..RHD200802-200902

main44772-12620iZRE151..RHD;NDE150..RHD..D¥850200802-201306

main44772-12640iADE150..RHD200802-201306

main44772-12700iNRE150..RHD200902-201306

main44772-12710iNRE150..LHD200902-201306

sub44772-02360

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-W0008iADE150,ZRE151¥120200802-201306

main90467-16014iNRE150..RHD¥230200902-201306

main96133-41500iNDE150..LHD¥140200802-201306

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12530iZRE151..LHD200802-201306

sub44774-02410

main44774-12540iNDE150..LHD200802-200902

main44774-12560iZRE151..RHD¥1,130200802-201306

main44774-12570iNDE150..RHD200802-200902

main44774-12580iADE150..LHD200802-201306

sub44774-64050

main44774-12590iZZE150..RHD200802-200902

main44774-12630iZZE150..LHD200802-200902

main44774-12740iNRE150..LHD200902-201306

sub44774-02440

main44774-12750iNDE150..LHD200902-201003

sub44774-12751

main44774-12751iNDE150..LHD201004-201306

main44774-12760iNDE150..RHD200902-201003

sub44774-12761

main44774-12761iNDE150..RHD201004-201306

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-W0008iZRE151;ADE150..LHD..DCRL¥120200802-201306

main96133-41500iNDE150..D;NRE150..LHD;NDE150..LHD..N¥140200802-201306

44785GASKET, BRAKE BOOSTER

main44785-12040iNDE150..DCRL¥200200802-201306

4702

9017908038

main90179-08038¥130

9415180600

main94151-80600¥60

12 parts on this diagram · 14 diagrams in section
