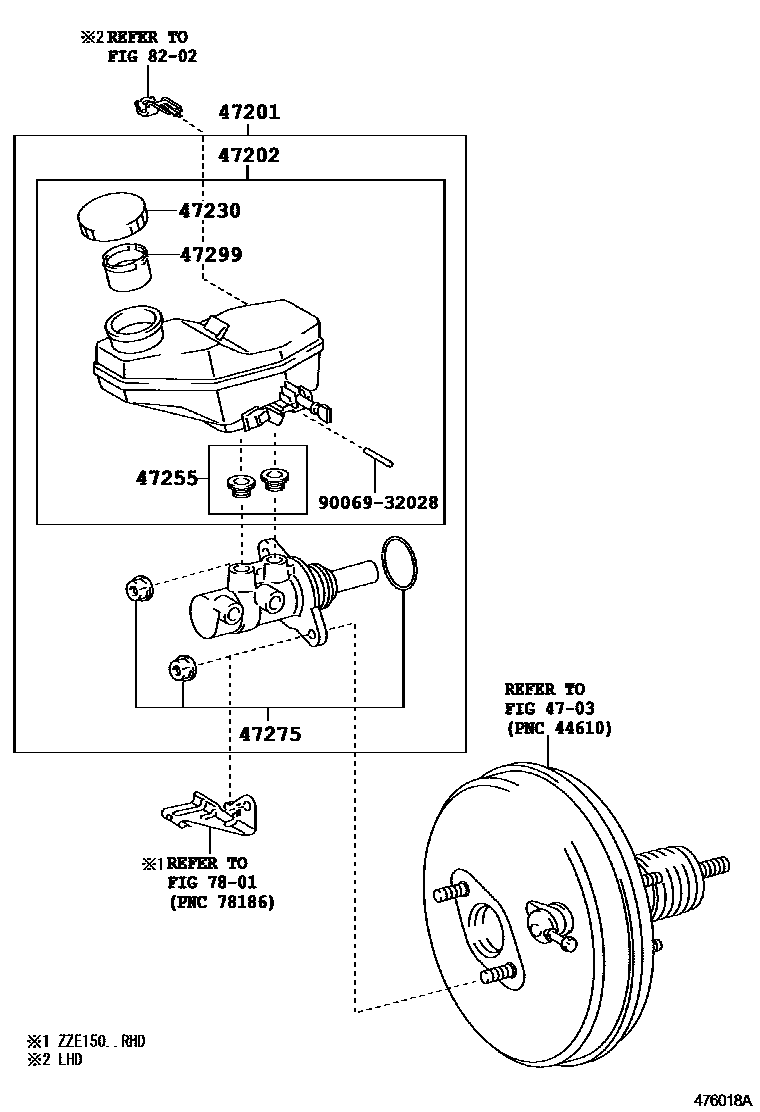

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09290iADE150,NDE150,ZRE151,ZZE150..LHD200802-200804

sub47201-09510

main47201-09310iADE150,NDE150,ZRE151,ZZE150..RHD200802-200804

sub47201-09530

main47201-09510iADE150,NDE150,NRE150,ZRE151..LHD200804-201306

main47201-09520iZRE151..RHD201006-201306

main47201-09530iADE150,NDE150,NRE150..RHD200804-201306

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09090iADE150,NDE150,NRE150,ZRE151..LHD200802-201306

main47220-09100iADE150,NDE150,NRE150,ZRE151..RHD200802-201306

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iADE150200802-201306

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iNDE150,ZRE151,ZZE150200802-201306

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iNDE150,ZRE151,ZZE150200802-201306

7801

8202

9006932028

main90069-32028

10 parts on this diagram · 1 diagram in section
