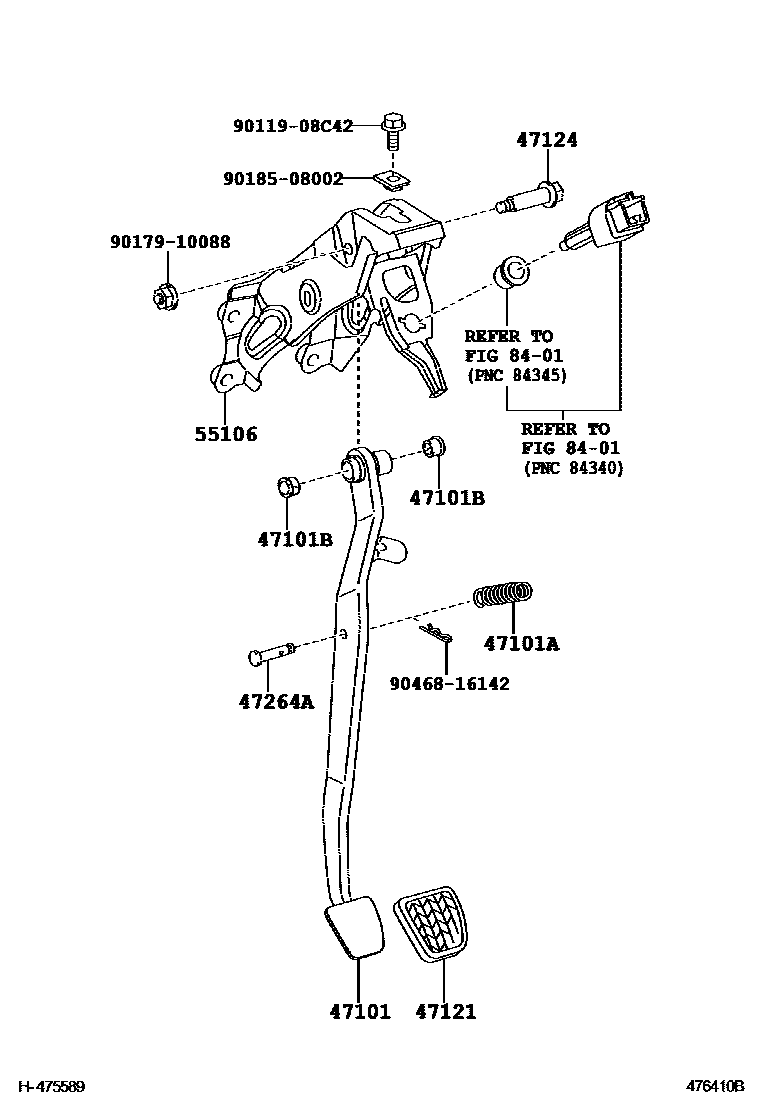

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12631iADE150..RHD200802-201306

main47101-12650iNDE150..LHD..6F..DCRL200802-201306

main47101-12660iNDE150,ZRE151..6FS200802-201306

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15005iNDE150,ZRE151,ZZE150200802-201306

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNDE150,ZRE151,ZZE150200802-201306

47121PAD, BRAKE PEDAL

main31321-42010iNDE150,ZRE151,ZZE150..5F200802-201306

main47121-42010iNDE150,ZRE151..5FS200802-201306

47124SHAFT, BRAKE PEDAL

main90109-10174iNDE150,ZRE151,ZZE150200802-201306

47264APIN(FOR PUSH ROD)

main90249-08256iNDE150,ZRE151,ZZE150200802-201306

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12680iNDE150,ZRE151,ZZE150..RHD200802-201306

main55106-12690iNDE150..LHD..DCR;ADE150,NRE150,ZRE151..LHD..(DCRL,HTWC,HTWVM)200802-201306

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

12 parts on this diagram · 1 diagram in section
