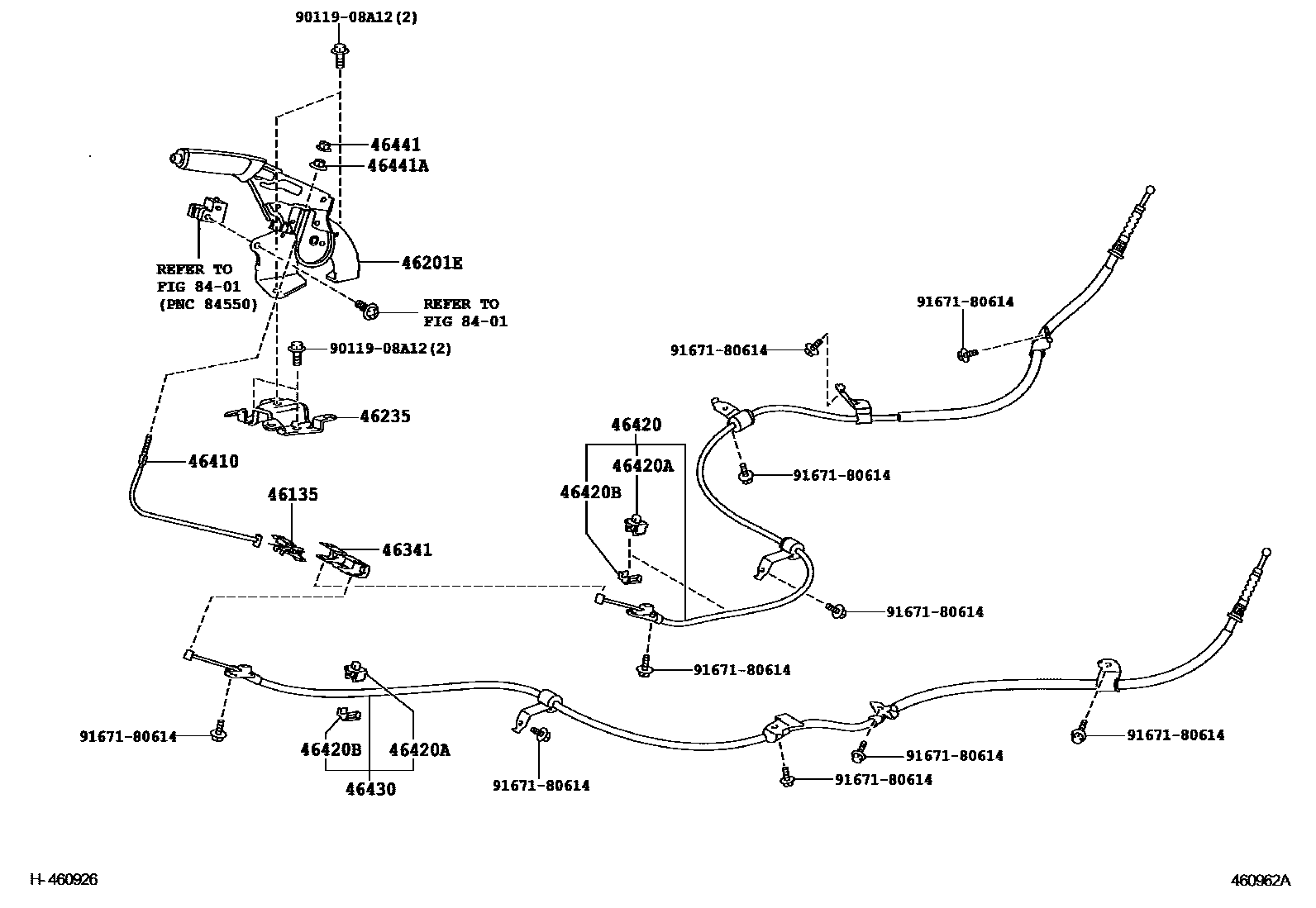

PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iNDE150,ZRE151,ZZE150200802-201306

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12370-B0iNDE150,NRE150,ZRE151..LHD..D201006-201011

DK.GRAY,TRIM1#,4#

sub46201-12370

main46201-12370-B0iADE150..LHD200802-201011

DK.GRAY,TRIM1#

sub46201-12370

main46201-12370-C0iADE150,NDE150,NRE150,ZRE151..LHD..N201011-201306

BLACK,TRIM1#,4#

sub46201-12370

main46201-12370-C0iNDE150,NRE150,ZRE151..LHD..D201011-201306

BLACK,TRIM1#

sub46201-12370

main46201-12370-E0iNDE150..LHD..N;ADE150,NRE150,ZRE151..LHD..N..(DCRL,HTWC,HTWVM)200802-201007

ASH BROWN,TRIM4#

sub46201-12370

main46201-12380-B0iADE150,NDE150,NRE150,ZRE151..RHD..N200802-201011

DK.GRAY,TRIM1#

sub46201-12380

main46201-12380-B0iADE150,NDE150,NRE150,ZRE151..RHD..N201006-201011

DK.GRAY,TRIM1#,4#

sub46201-12380

main46201-12380-C0iADE150,NDE150,NRE150,ZRE151..RHD..N201011-201306

BLACK,TRIM1#

sub46201-12380

main46201-12380-C0iNDE150,NRE150,ZRE151..RHD..D201011-201306

BLACK,TRIM1#,4#

sub46201-12380

main46201-12380-E0iZRE151,ZZE150..RHD200802-201006

ASH BROWN,TRIM4#

sub46201-12380

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-12010iNDE150,ZRE151,ZZE150200802-201306

46341EQUALIZER, PARKING BRAKE

main46341-12040iNDE150,ZRE151,ZZE150200802-201306

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12320iNDE150,ZRE151,ZZE150200802-201306

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02121iNDE150,ZRE151,ZZE150200802-201306

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-12030iADE150200802-201306

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-12040iNDE150,ZRE151,ZZE150200802-201306

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02121iNDE150,ZRE151,ZZE150200802-201306

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iNDE150,ZRE151,ZZE150200802-201306

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iADE150200802-201306

8401

9011908A12

main90119-08A12

9167180614

main91671-80614

14 parts on this diagram · 1 diagram in section
