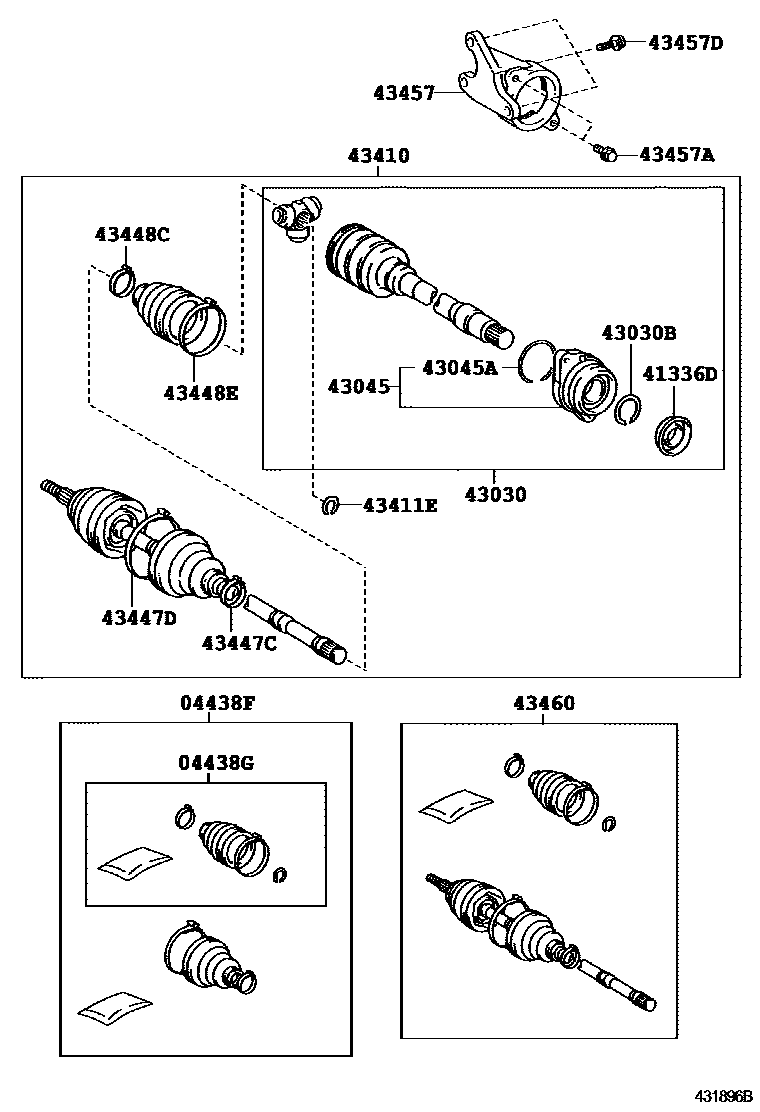

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH 0005 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02410iADE150200802-201009

sub04427-02411

main04427-02411iADE150201009-201306

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02280iNDE150..D;ZRE151..MTM;NDE150..LHD..N200909-201306

main04437-02290iNRE150200909-201306

main04437-02330iNDE150,ZRE151..MTM200802-200908

sub04437-02280

main04437-02340iNRE150;ZRE151..4FC200802-200908

sub04437-02290

main04437-05070iADE150200802-201306

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-02090iNRE150;ZRE151..4FC200802-200909

sub41336-05010

main41336-02100iNDE150200802-200909

sub41336-05140¥380

main41336-05010iNRE150200909-201306

main41336-05100iADE150200802-201306

main41336-05140iNDE150..D;ZRE151..MTM;NDE150..LHD..N¥380200909-201306

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-05200iADE150200802-201306

main43040-02030iNRE150¥10,000200909-201306

main43040-02070iNRE150;ZRE151..4FC200802-200909

sub43040-02030¥10,000

main43040-02080iNDE150,ZRE151..MTM200802-200909

sub43040-05110

main43040-05110iNDE150,ZRE151200909-201306

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main43425-02110iNRE150;ZRE151..4FC200802-200909

sub90080-52056¥100

main43425-02140iNDE150,ZRE151..MTM200802-200909

sub90080-52055¥90

main43425-05050iADE150200802-201306

main90080-52055iNDE150..D;ZRE151..MTM;NDE150..LHD..N¥90200909-201306

main90080-52056iNRE150¥100200909-201306

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-64020iADE150¥4,940200802-201306

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main90520-69002iADE150¥100200802-201306

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02570iNRE150;ZRE151..4FC200909-201112

sub43410-02571¥68,900

main43410-02571iNRE150¥68,900201112-201306

main43410-02580iNDE150,ZRE151¥82,800200909-201112

sub43410-02581

main43410-02581iNDE150,ZRE151201112-201306

main43410-02590iADE150200802-201009

sub43410-02591

main43410-02591iADE150201009-201306

main43410-02600iZRE151,ZZE150200802-200908

sub43410-02570

main43410-02610iNDE150200802-200908

sub43410-02580¥82,800

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-02130iNDE150,ZRE151,ZZE150200802-200909

sub90080-52093¥120

main43425-05040iADE150200802-201306

main90080-52093iNDE150,NRE150,ZRE151¥120200909-201306

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02250iNDE150,NRE150,ZRE151200802-200909

sub42345-05140¥250

main42345-05140iNDE150..D;NRE150,ZRE151;NDE150..LHD..N¥250200909-201306

main42345-05280iADE150200802-201306

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02220iNDE150..D;NRE150,ZRE151;NDE150..LHD..N200909-201306

main42345-02260iNDE150,NRE150,ZRE151200802-200909

sub42345-02220

main42345-05270iADE150¥680200802-201306

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02240iNDE150..D;NRE150,ZRE151;NDE150..LHD..N¥260200909-201306

main42345-02280iNDE150,ZRE151,ZZE150200802-200909

sub42345-02240¥260

main42345-05250iADE150200802-201306

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02270iNDE150,NRE150,ZRE151200802-200909

sub42345-05030

main42345-05030iNDE150..D;NRE150,ZRE151;NDE150..LHD..N200909-201306

main42345-05210iADE150200802-201306

43457BRACKET, DRIVE SHAFT BEARING

main43457-05050iADE150200802-201306

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iADE150¥110200802-201306

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iADE150¥100200802-201306

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09R20iNRE150200909-201112

sub43460-09R21

main43460-09R21iNRE150201112-201306

main43460-09R30iNDE150,ZRE151200909-201112

sub43460-09R31

main43460-09R31iNDE150,ZRE151201112-201306

main43460-09S40iNDE150200802-200908

sub43460-09R30

main43460-09S50iNRE150;ZRE151..4FC200802-200908

sub43460-09R20

main43470-09S90iADE150200802-201009

sub43470-09S91

main43470-09S91iADE150201009-201306

17 parts on this diagram · 5 diagrams in section
