0001 1 0002 1

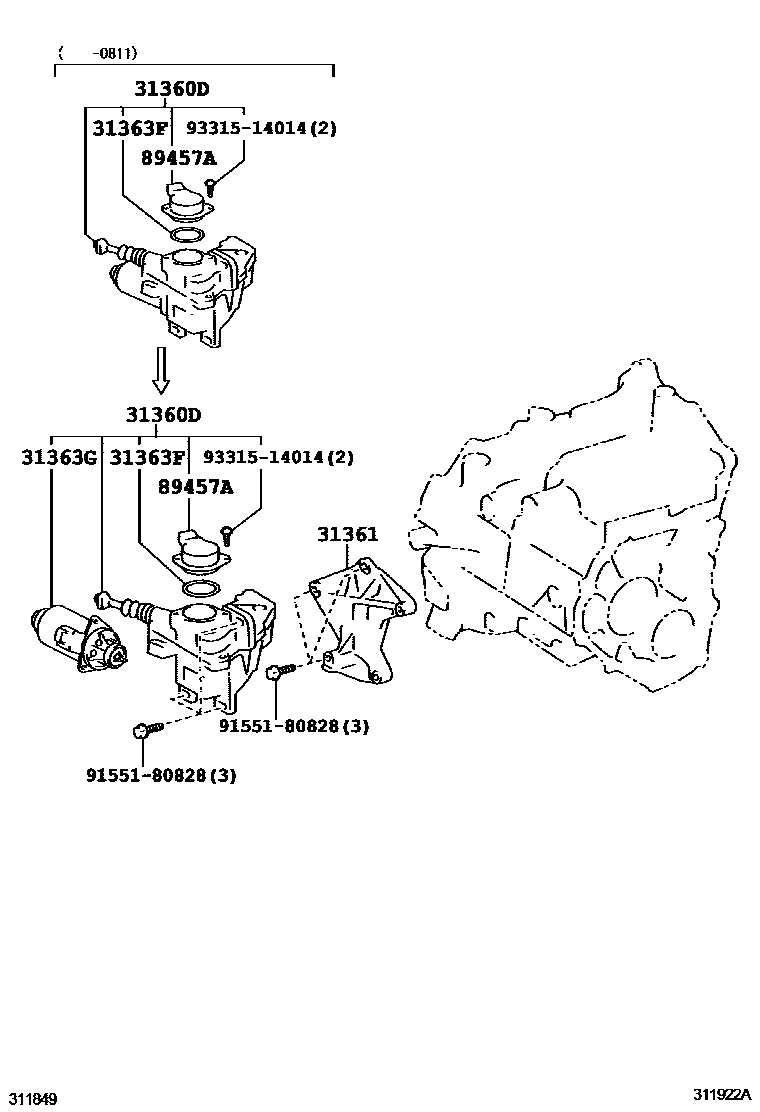

31360DACTUATOR ASSY, CLUTCH

main31360-12010iNDE150,ZRE151..5FS200802-200902

sub31360-12030

main31360-52041iNDE150,ZRE151..6FS200902-201005

sub31360-52042

main31360-52042iNDE150..6FS..DCRL201006-201103

sub31360-52043

main31360-52043iNDE150,ZRE151..6FS201104-201109

sub31360-52044

main31360-52044iNDE150,ZRE151..6FS201110-201306

31361BRACKET, CLUTCH ACTUATOR, NO.1

main31361-12010iNDE150,ZRE151..6FS..(DCR,HTWVM)200902-201306

main31361-64010iNDE150,ZRE151..5FS200802-200902

31363FRING, O(FOR CLUTCH ACTUATOR ACCUMULATOR)

main90301-37010iNDE150,ZRE151..5FS200802-201306

31363GMOTOR, CLUTCH ACTUATOR

main31363-12010iNDE150,ZRE151..5FS200811-200902

sub31363-12040

89457ASTROKE SENSOR, CLUTCH

main89457-52010iNDE150,ZRE151..5FS200802-201008

main89457-52020iNDE150,ZRE151..6FS201008-201306

9155180828

main91551-80828

9331514014

main93315-14014

7 parts on this diagram · 2 diagrams in section
