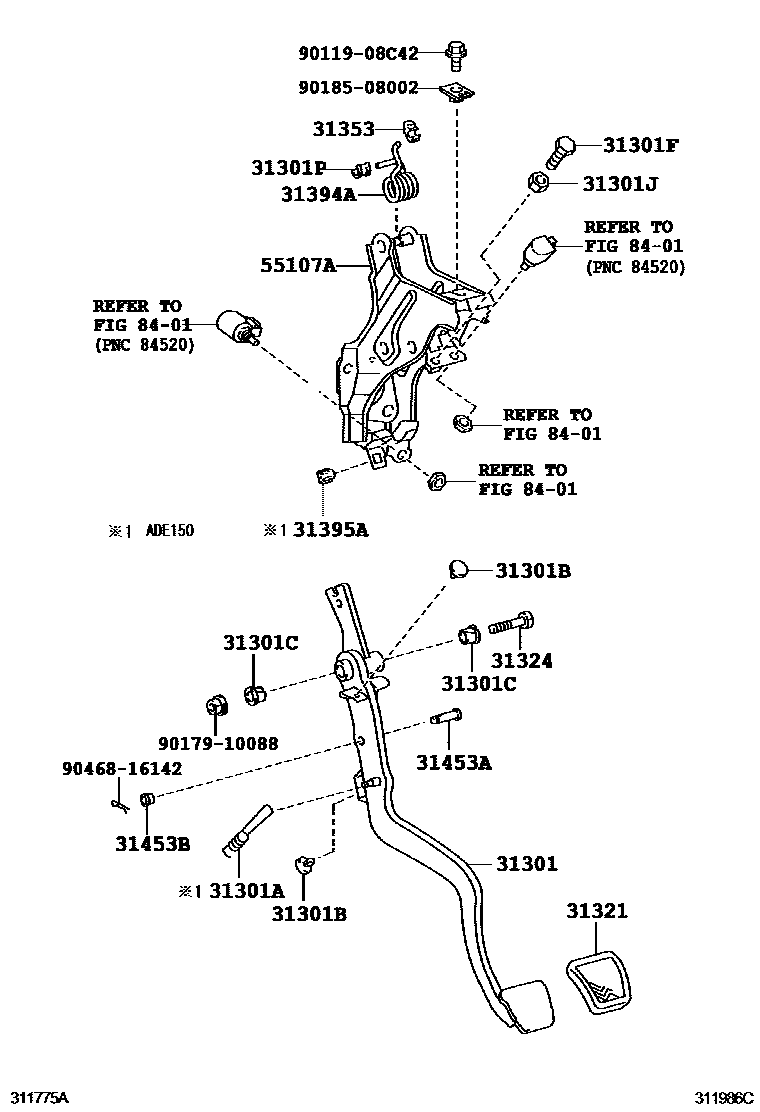

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0005 1 0007 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12510iZRE151,ZZE150..LHD..5F200802-200905

sub31301-12H01

main31301-12511iZRE151..LHD..6F200906-201306

main31301-12520iADE150..LHD200802-200905

sub31301-12H00

main31301-12521iNDE150..LHD..6F200906-201306

main31301-12620iNDE150..LHD..6F201003-201306

main31311-12370iNDE150,ZRE151,ZZE150..RHD200802-201205

main31311-12371iADE150,NDE150,NRE150,ZRE151..RHD201205-201306

31301ASPRING(FOR CLUTCH PEDAL)

main31394-25010iADE150..LHD200802-201306

main90507-14047iZRE151,ZZE150..5F200802-201306

main90905-06079iADE150..RHD200802-201306

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iADE150200802-201306

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iADE150,NDE150,NRE150,ZRE151..6F200802-201306

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iNDE150..LHD..6F..DCRL200906-201306

main90101-10369iNDE150..RHD..DCR;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200802-201306

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iADE150,NDE150,NRE150,ZRE151..LHD..6F200906-201306

main94130-61000iADE150200802-201306

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iADE150..LHD..DCRL;NDE150..LHD..6F..DCR200802-201306

31321PAD, CLUTCH PEDAL

main31321-42010iNDE150..6F..DCR;ADE150,NRE150,ZRE151..6F..(DCRL,HTWC,HTWVM)200802-201306

31324SHAFT, CLUTCH PEDAL

main90101-10039iNDE150,ZRE151,ZZE150..RHD200802-201306

main90109-10167iADE150,NDE150,NRE150,ZRE151..LHD..6F200802-201306

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iNDE150..5F200802-201306

31394ASPRING, PEDAL W/HOOK

main31394-12050iADE150..RHD200802-201306

main31394-12060iNDE150..RHD..DCRL200802-201306

main31394-12070iADE150..LHD200802-201306

main31394-12080iNDE150..LHD..6F..DCR200802-201306

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iADE150200802-201306

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iNDE150..LHD..6F..DCRL200802-201306

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iNDE150..LHD..6F..DCRL200802-201306

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12270iNRE150,ZRE151..RHD200802-201205

main55107-12271iNRE150..RHD201205-201306

main55107-12280iNRE150,ZRE151..LHD..6F200802-200905

sub31301-12H01

main55107-12281iNRE150,ZRE151..LHD..6F200906-201306

main55107-12290iNDE150..RHD..DCR;ADE150..RHD..DCRL200802-201205

main55107-12291iADE150,NDE150..RHD201205-201306

main55107-12300iADE150..LHD200802-200905

sub31301-12H00

main55107-12301iADE150..LHD;NDE150..LHD..6F..DCR200906-201306

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

20 parts on this diagram · 15 diagrams in section
