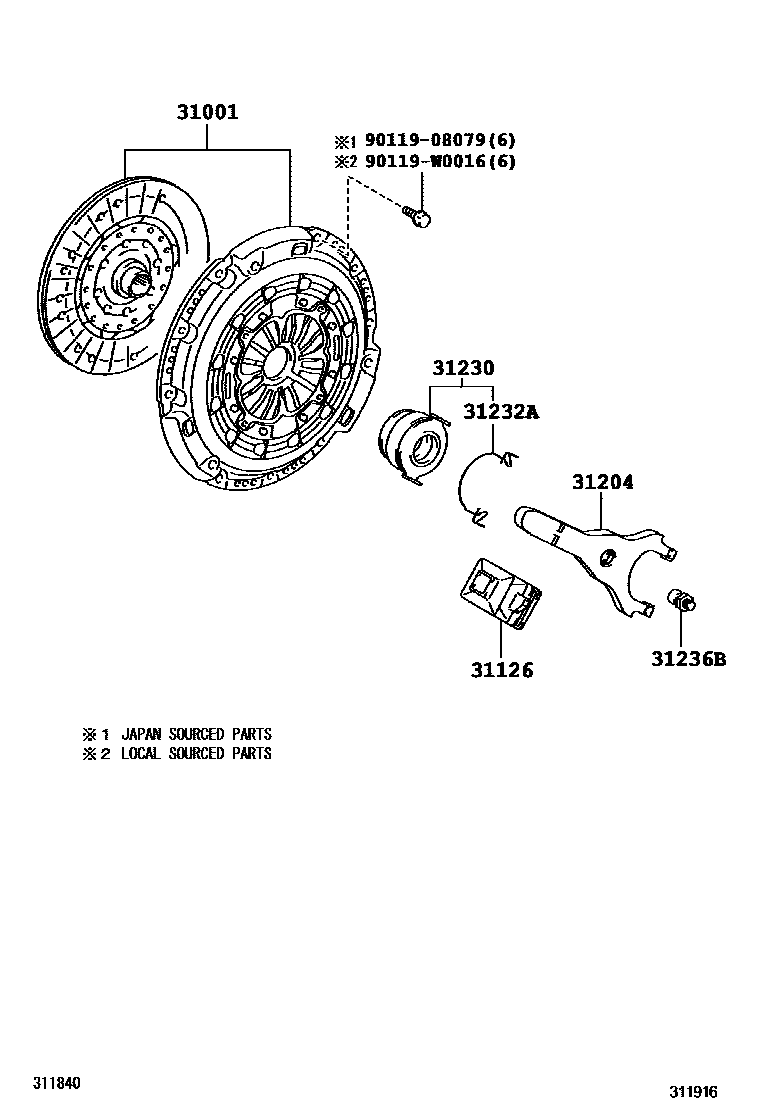

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

31001CLUTCH SET, COVER & DISC

main31001-05040iADE150200802-200903

sub31001-05170

main31001-05090iADE150200903-201103

sub31001-0R010

main31001-05140iADE150201103-201306

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNDE150,ZRE151,ZZE150..5F200802-200902

main31126-20080iADE150200802-201306

main31126-64010iNDE150,ZRE151..5FS200802-200902

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iZZE150200802-200902

main31204-20140iADE150200802-201306

main31204-52010iNDE150,ZRE151..5F200802-200902

main31204-64010iNDE150,ZRE151..5FS200802-200902

31230BEARING ASSY, CLUTCH RELEASE

main31230-05012iZZE150200802-200902

main31230-12180iNDE150..5F200802-200811

sub31230-12181

main31230-12181iNDE150..5F200812-200902

main31230-12191iZRE151..5F200802-200902

main31230-17011iNDE150,ZRE151..5FS200802-200902

sub31230-17012

main31230-20200iADE150200802-201306

31232ACLIP, RELEASE BEARING HUB

main31232-05011iZZE150200802-200902

main31232-12070iZRE151..5F200802-200902

main31232-12080iNDE150..5F200802-200902

main31232-17010iNDE150,ZRE151..5FS200802-200902

main31232-20031iADE150200802-201306

31236BSUPPORT, RELEASE FORK

main31236-12020iNDE150,ZRE151,ZZE150200802-200902

main31236-20080iADE150200802-201306

9011908079

main90119-08079

90119W0016

main90119-W0016

8 parts on this diagram · 8 diagrams in section
