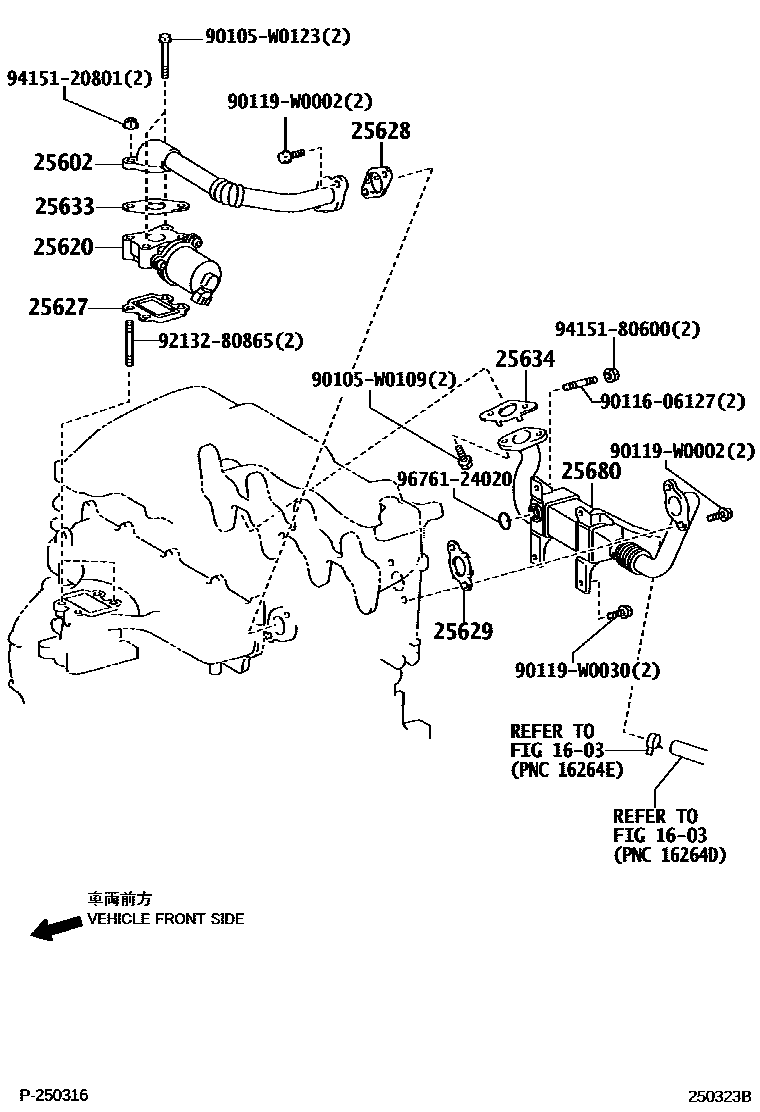

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1

1603

25602PIPE SUB-ASSY, EGR, NO.2

main25612-0R031i1ADFTV..ADE150200903-201306

main25612-26030i1ADFTV..ADE150200802-200903

25620VALVE ASSY, EGR

main25620-0R021i1ADFTV..ADE150200802-200903

sub25620-0R022

main25620-0R022i1ADFTV..ADE150..DCR200903-200903

main25620-33030i1NDTV..NDE150200802-200902

main25620-47020i1NRFE..NRE150200902-201306

25627GASKET, EGR VALVE

main25627-0R010i1ADFTV..ADE150200802-200903

main25627-0R020i1ADFTV..ADE150200903-201306

main25627-33010i1NDTV..NDE150..DCR200902-201306

25628GASKET, EGR INLET

main25628-0R010i1ADFTV..ADE150200802-200807

sub25628-26020

main25628-0R010i1ADFTV..ADE150200903-201306

TYPE A:REFER ILLUST.

sub25628-26020

main25628-26020i1ADFTV..ADE150200903-201306

TYPE B:REFER ILLUST.

main25628-26020i1ADFTV..ADE150200807-200903

main25628-33020i1NDTV..NDE150200802-200902

main25628-33040i1NDTV..NDE150..DCRL200902-201306

25629GASKET, EGR VALVE ADAPTER

main25629-0R010i1ADFTV..ADE150200802-201306

25633GASKET, EGR VALVE

main25633-0R010i1ADFTV..ADE150200802-200903

main25633-0R020i1ADFTV..ADE150200903-201306

main25633-47010i1NRFE..NRE150200902-201306

25634GASKET, EGR PIPE

main25634-0R010i1ADFTV..ADE150200802-201306

main25634-33010i1NDTV..NDE150200902-201306

main25634-47010i1NRFE..NRE150200902-201306

25680COOLER ASSY, EGR

main25680-0R010i1ADFTV..ADE150..DCR200802-200805

sub25680-0R011

sub16284-26040

main25680-0R011i1ADFTV..ADE150..DCR200805-200903

sub25680-26041

main25680-0R020i1ADFTV..ADE150..DCRL200802-200805

sub25680-0R021

sub16284-26040

main25680-0R021i1ADFTV..ADE150..DCRL200805-200903

sub25680-26021

90105W0109

main90105-W0109

90105W0123

main90105-W0123

9011606127

main90116-06127

90119W0002

main90119-W0002

90119W0030

main90119-W0030

9213280865

main92132-80865

9415120801

main94151-20801

9415180600

main94151-80600

9676124020

main96761-24020

18 parts on this diagram · 7 diagrams in section
