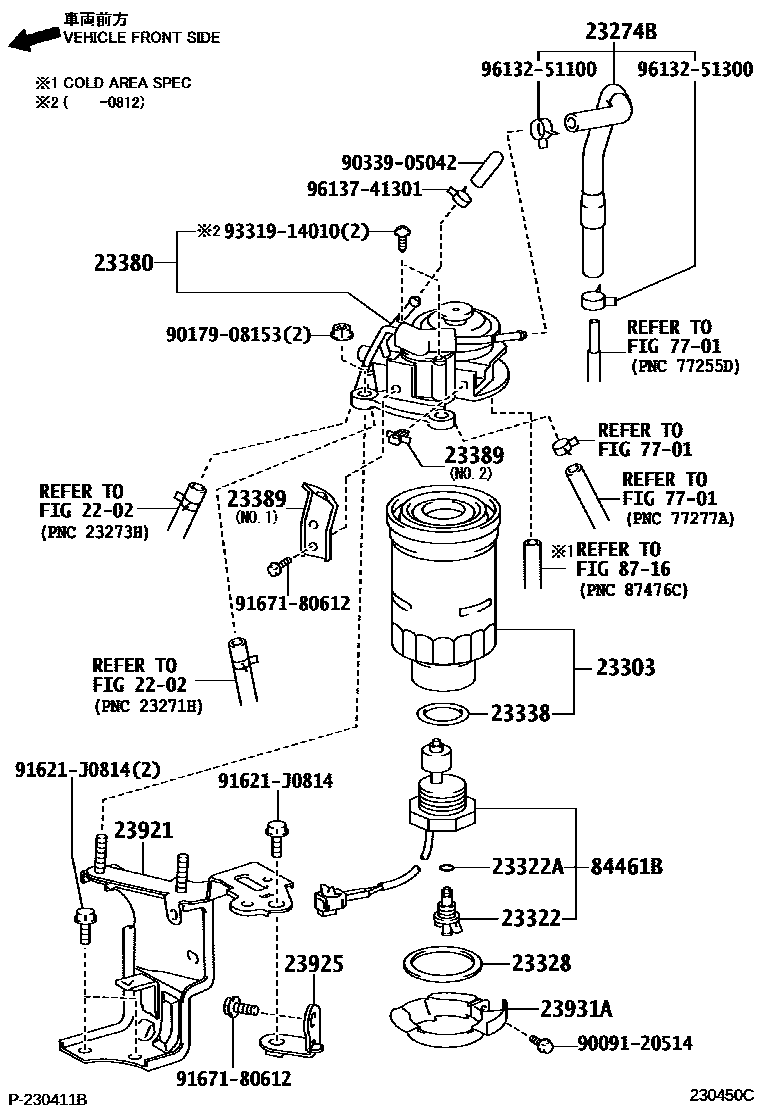

FUEL FILTER

0001 1 0002 1 0003 1 0004 1

2202

23274BHOSE, FUEL, NO.3

main23274-0T010i1ADFTV..ADE150201210-201306

main23274-26060i1NDTV..NDE150200802-201209

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-26140i1ADFTV..ADE150200802-200812

sub23390-26160

main23390-26160i1NDTV..NDE150200812-201306

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1ADFTV..ADE150200802-201306

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1NDTV..NDE150200802-201306

23328GASKET(FOR FUEL FILTER)

main23385-30160i1NDTV..NDE150200802-201306

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1NDTV..NDE150200802-201306

23380CAP ASSY, FUEL FILTER

main23380-0R051i1ADFTV..ADE150200902-201209

sub23380-0R052

sub23380-26170

main23380-26130i1NDTV..NDE150200802-200812

sub23380-26131

main23380-26131i1ADFTV..ADE150200812-200903

sub23380-26132

main23380-26170i1NDTV..NDE150201209-201303

sub23380-26171

main23380-26171i1ADFTV..ADE150201303-201306

23389CLAMP, FUEL FILTER

main23389-26130i1ADFTV..ADE150200802-200903

NO.1

main23389-26130i1NDTV..NDE150..DCR200902-201306

main23389-27130i1ADFTV..ADE150200802-200903

NO.2

23921SUPPORT, FUEL FILTER

main23921-0R010i1ADFTV..ADE150200802-201306

23925STAY, FUEL FILTER SUPPORT

main23925-0R010i1NDTV..NDE150200802-201306

23931ACOVER, FUEL FILTER

main23931-26010i1NDTV..NDE150200802-200903

sub23931-26031

main23931-26030i1NDTV..NDE150..DCR200902-201209

sub23931-26031

main23931-26031i1ADFTV..ADE150201209-201306

7701

84461BSWITCH, LEVEL WARNING

main84461-60080iNDE150200802-201109

sub84461-60081

main84461-60081iNDE150201110-201306

sub84461-60082

8716

9009120514

main90091-20514

9017908153

main90179-08153

9033905042

main90339-05042

91621J0814

main91621-J0814

9167180612

main91671-80612

9331914010

main93319-14010

9613251100

main96132-51100

9613251300

main96132-51300

9613741301

main96137-41301

24 parts on this diagram · 4 diagrams in section
