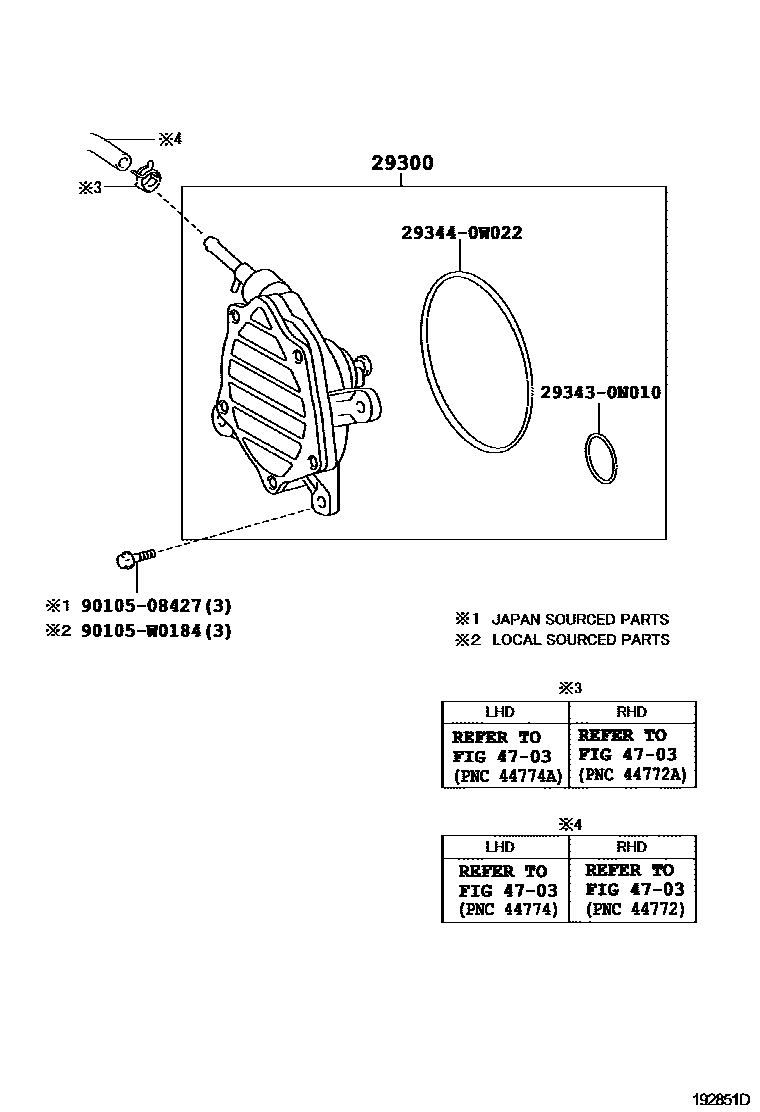

VACUUM PUMP

0001 1 0002 1 0003 1 0004 1

29300PUMP ASSY, VACUUM

main29300-0N010i1NDTV..NDE150200802-200902

main29300-0T020i1ZRFAE..ZRE151201211-201306

main29300-0W022i1ZRFAE..ZRE151200902-201211

sub29300-0T020

main29300-0W030i1ADFTV..ADE150200802-201111

sub29300-0W090

main29300-0W070i1NDTV..NDE150..DCR200902-201007

sub29300-0W072

main29300-0W072i1NDTV..NDE150201007-201306

sub29300-0W120

main29300-0W090i1ADFTV..ADE150201111-201306

4703

293430N010RING, O VACUUM PUMP, NO.1

main29343-0N010

293440W022RING, O VACUUM PUMP, NO.2

main29344-0W022

9010508427

main90105-08427

90105W0184

main90105-W0184

6 parts on this diagram · 4 diagrams in section
