ALTERNATOR

0001 112V 90A 0002 112V 100A 0003 112V 100A 0004 112V 90A 0005 112V 100A 0006 112V 100A 0007 112V 80A 0008 112V 100A

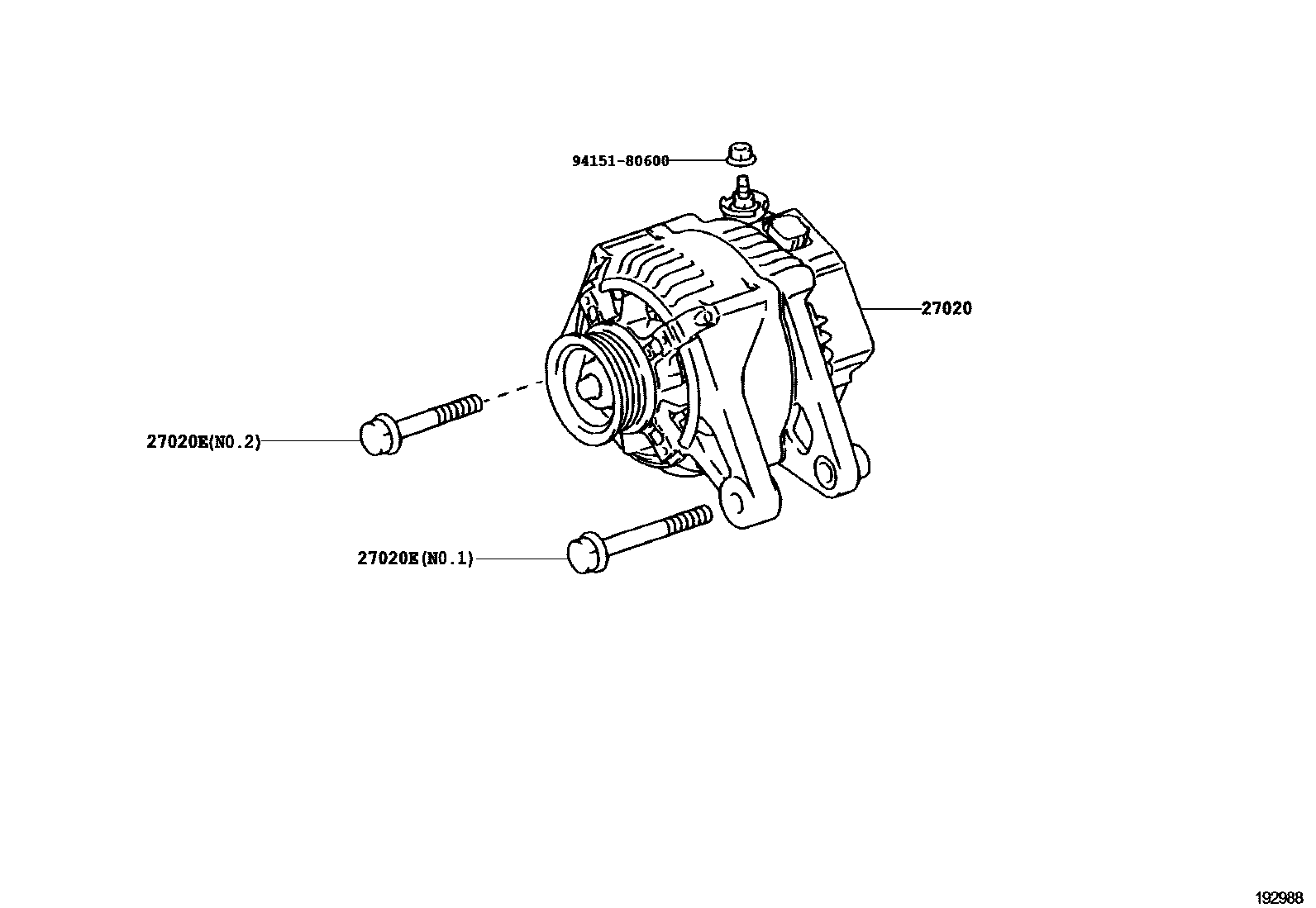

27020ALTERNATOR ASSY

main27060-0D190i4ZZFE..ZZE150200802-200901

12V 90A

sub27060-0D191

main27060-0D191i4ZZFE..ZZE150200902-200902

12V 90A

main27060-0N030i1NDTV..NDE150200802-200803

12V 100A

sub27060-0N031

main27060-0N031i1NDTV..NDE150200803-200902

12V 100A

main27060-0N050i1NDTV..NDE150..D;1NDTV..NDE150..LHD..N200902-201306

12V 100A

main27060-0R050i1ADFTV..ADE150200802-200903

12V 100A

main27060-0R060i1ADFTV..ADE150200903-201306

12V 100A

main27060-0T010i1ZRFE..ZRE151200802-200901

12V 90A

sub27060-0T012

main27060-0T012i1ZRFE..ZRE151..5F,5FS200902-200902

12V 90A

main27060-0T060i1ZRFE..ZRE151200902-200906

12V 100A

sub27060-0T061

main27060-0T061i1ZRFE..ZRE151200907-201006

12V 100A

main27060-0T080i1ZRFAE..ZRE151200902-201010

12V 90A

sub27060-0T081

main27060-0T081i1ZRFAE..ZRE151201010-201306

12V 90A

main27060-0Y070i1NRFE..NRE150200902-201306

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i4ZZFE..ZZE150200802-200902

NO.1

main90105-10111i1NDTV..NDE150..DCR200902-201007

main90105-10307i1ZR#..ZRE151200802-201306

main90105-10520i1NDTV..NDE150200802-200902

main90105-10571i1NDTV..NDE150201006-201306

main91511-80830i4ZZFE..ZZE150200802-200902

NO.2

main91552-81075i1NRFE..NRE150200902-201306

9415180600

main94151-80600

3 parts on this diagram · 8 diagrams in section
