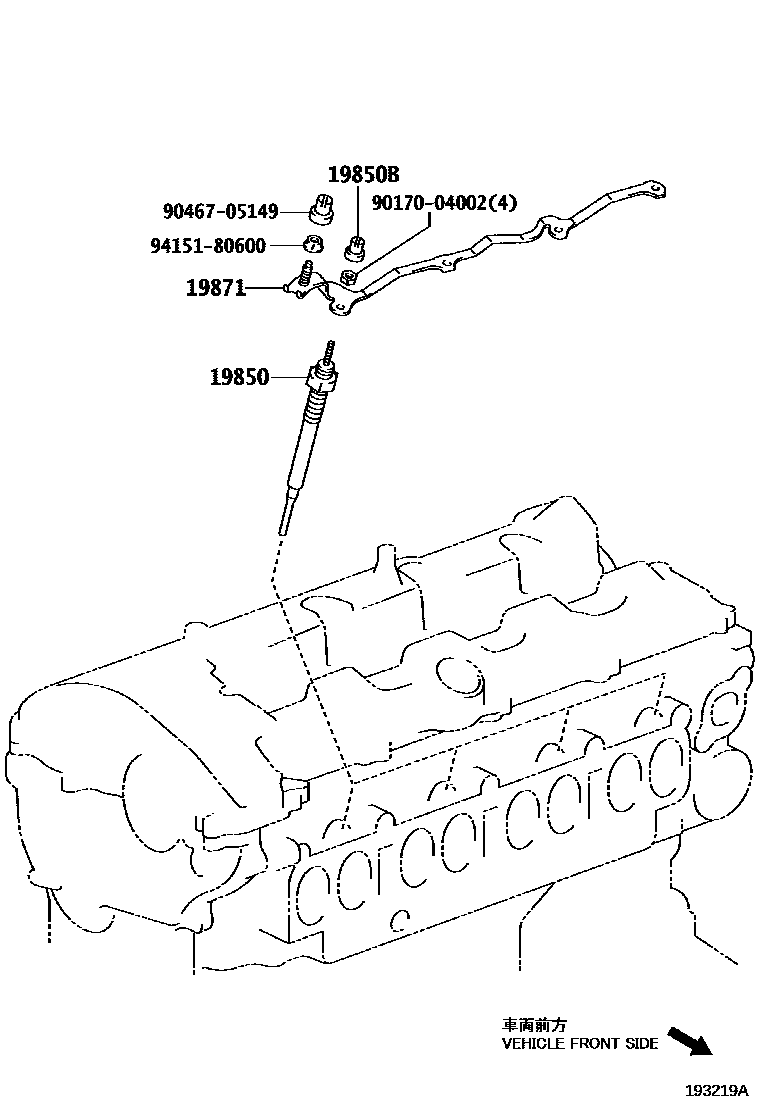

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1

19850PLUG ASSY, GLOW

main19850-0R010×4i1ADFTV..ADE150..DCR200802-200903

*BV-GV=12V-11V

main19850-0R020×4i1ADFTV..ADE150..DCRL200802-200809

*BV-GV=12V-11V

main19850-0R022×4i1ADFTV..ADE150..DCRL200809-200903

*BV-GV=12V-11V,(L)

main19850-0W010×4i1NDTV..NDE150200802-200902

*BV-GV=12V-11V

main19850-26022×4i1ADFTV..ADE150201107-201306

*BV-GV=12V-11V

main19850-33020×4i1NDTV..NDE150..D;1NDTV..NDE150..LHD..N200902-201007

*BV-GV=12V-11V

main19850-33030×4i1NDTV..NDE150..DCR201010-201306

*BV-GV=12V-11V,*132

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i1ADFTV..ADE150200802-200903

19871CONNECTOR, GLOW PLUG NO.1

main19871-26010i1ADFTV..ADE150201006-201306

main19871-33010i1NDTV..NDE150200802-200902

main19871-33020i1NDTV..NDE150..D;1NDTV..NDE150..LHD..N200902-201007

9017004002

main90170-04002

9046705149

main90467-05149

9415180600

main94151-80600

6 parts on this diagram · 5 diagrams in section
