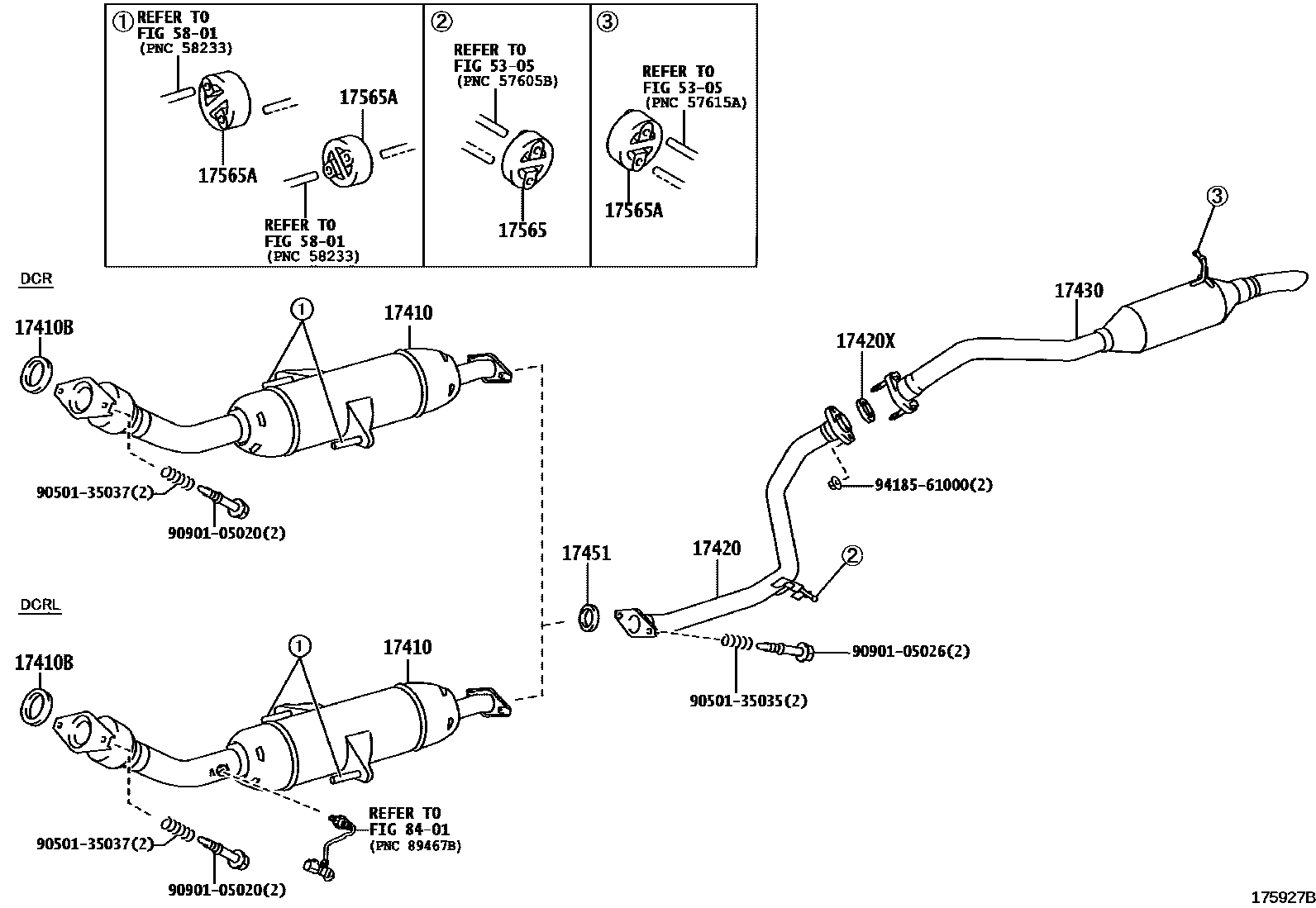

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0D420i4ZZFE..ZZE150200802-200902

*114=TOYOTA/GH2/Y

main17410-0N060i1NDTV..NDE150200802-200902

main17410-0N090i1NDTV..NDE150201006-201306

main17410-0R090i1ADFTV..ADE150..DCR200802-200903

*114=TOYOTA/AC9/Y

main17410-0R100i1ADFTV..ADE150..DCRL200802-200903

*114=TOYOTA/AD3/Y

main17410-0R210i1ADFTV..ADE150201006-201306

*114=TOYOTA/AC7/Y

main17410-0T010i1ZRFE..ZRE151200902-201006

*114=*411

main17410-0T130i1ZRFAE..ZRE151201006-201306

*114=*357

17410BGASKET, EXHAUST PIPE

main17451-22070i4ZZFE..ZZE150200802-200902

main17451-28040i1ADFTV..ADE150200802-200903

sub17451-28041

main17451-47020i1NRFE..NRE150201006-201306

sub17451-21070

17420PIPE ASSY, EXHAUST, CENTER

main17420-0D140i1ZRFAE..ZRE151201006-201306

main17420-0T010i1ADFTV,1NDTV..ADE150,NDE150201006-201306

main17420-0Y020i1NRFE..NRE150200902-201006

RUSSIA SPEC, WITHOUT(OBD)&COLD AREA SPEC

main17420-47080i1NRFE..NRE150..LHD201006-201306

WITH(EXHAUST HEATER & PTC HEATER)

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06089i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200802-200902

17430PIPE ASSY, EXHAUST, TAIL

main17430-0D420i4ZZFE..ZZE150200802-200902

main17430-0N050i1NDTV..NDE150..DCR200902-201006

main17430-0R050i1ADFTV..ADE150200903-201006

main17430-0R051i1ADFTV..ADE150201010-201306

main17430-0T010i1ZRFE..ZRE151200802-200902

main17430-0T011i1NRFE,1ZRFAE..NRE150,ZRE151201010-201306

17451GASKET, EXHAUST PIPE

main17451-28031i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200802-200902

main17451-28032i1ADFTV,1NDTV,1ZRFAE..ADE150,NDE150,ZRE151201103-201306

main90917-06089i1NRFE..NRE150201006-201306

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200802-200902

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×3i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200802-200902

5305

5801

8401

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9418561000

main94185-61000

16 parts on this diagram · 5 diagrams in section
