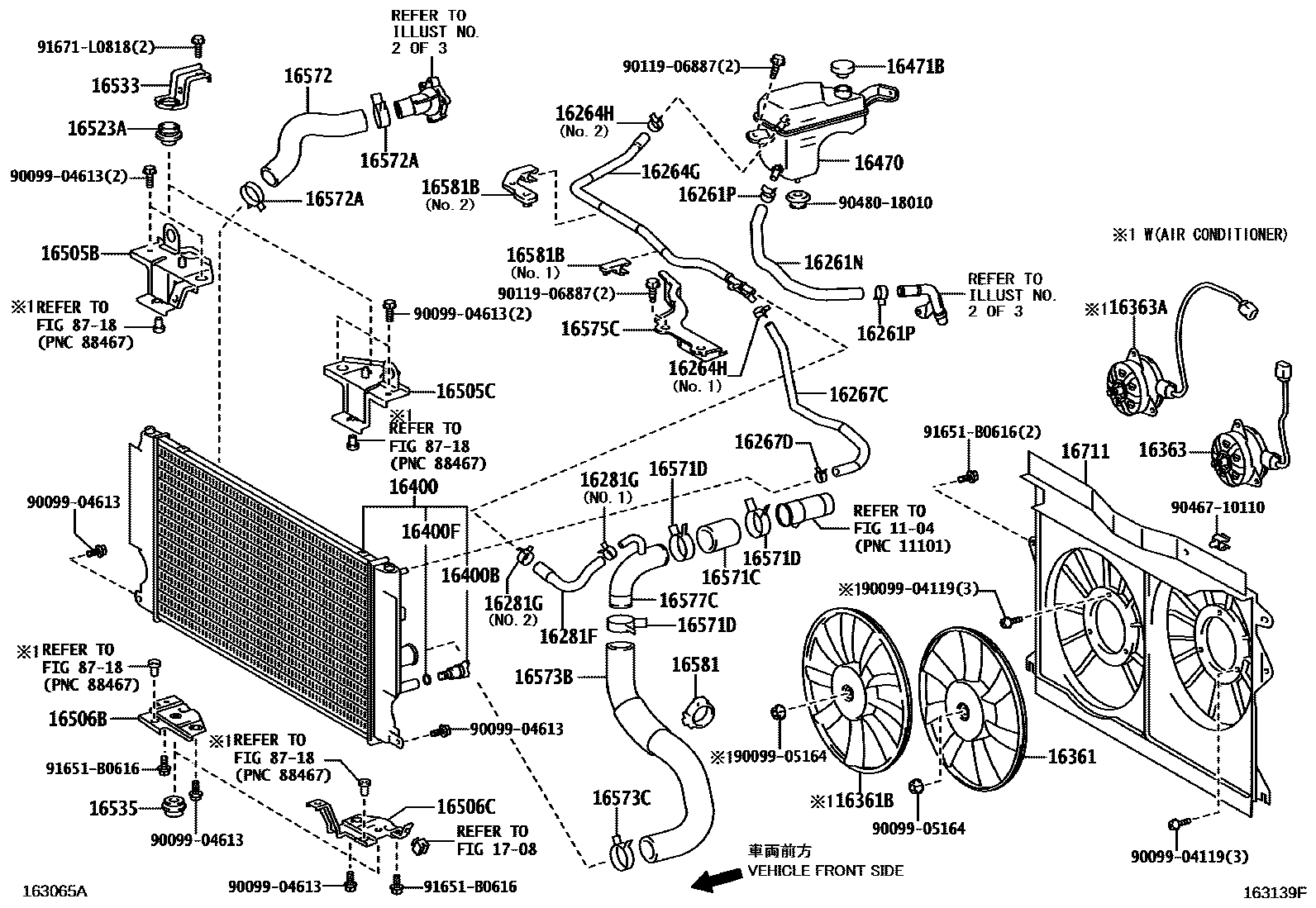

RADIATOR & WATER OUTLET
1104
16261NHOSE, WATER BY-PASS, NO.2
16261PCLIP(FOR WATER BY-PASS HOSE NO.2)
NO.2
NO.1
NO.2
16264GHOSE, WATER BY-PASS, NO.3
16264HCLIP(FOR WATER BY-PASS HOSE NO.3)
NO.1
NO.2
16267HOSE, WATER BY-PASS, NO.3
(L),*251
EXHAUST EMISSION CONTROL-ECE STEP4,WITHOUT(OBD)
16267CHOSE, WATER BY-PASS, NO.4
16267DCLIP(FOR WATER BY-PASS HOSE NO.4)
16281HOSE, WATER BY-PASS, NO.4
(L),*251
EXHAUST EMISSION CONTROL-ECE STEP4,WITHOUT(OBD),PNC 16321=ALUMINUM
PNC 16321=PLASTIC
*251
16281FHOSE, WATER BY-PASS, NO.5
STOP & START SYSTEM PACKAGE
16281GCLIP(FOR WATER BY-PASS HOSE NO.5)
NO.1
NO.1
NO.1
NO.2
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16505BSUPPORT SUB-ASSY, RADIATOR, UPPER RH
16505CSUPPORT SUB-ASSY, RADIATOR, UPPER LH
16506BSUPPORT SUB-ASSY, RADIATOR, LOWER RH
16506CSUPPORT SUB-ASSY, RADIATOR, LOWER LH
16523ACUSHION, RADIATOR SUPPORT
NO.1
NO.2
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571CHOSE, RADIATOR, NO.1
STOP & START SYSTEM PACKAGE
16571DCLIP, RADIATOR HOSE, NO.1
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.1
NO.1
16573BHOSE, RADIATOR, NO.3
COLD AREA SPEC
STOP & START SYSTEM PACKAGE
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
NO.1
NO.1
STOP & START SYSTEM PACKAGE,NO.2
16575CBRACKET, WATER HOSE CLAMP, NO.1
COLD AREA SPEC
16577CPIPE, RADIATOR
STOP & START SYSTEM PACKAGE
16581CLAMP, HOSE(FOR WATER HOSE)
NO.1
NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
NO.3
NO.1
NO.2
NO.1 & NO.2
NO.3
NO.2
16711SHROUD, FAN
1708
8718
9009904119
main90099-04119
9009904613
main90099-04613
9009905164
main90099-05164
9011906887
main90119-06887
9046710110
main90467-10110
9048018010
main90480-18010
91651B0616
main91651-B0616
91671L0818
main91671-L0818
