WATER PUMP

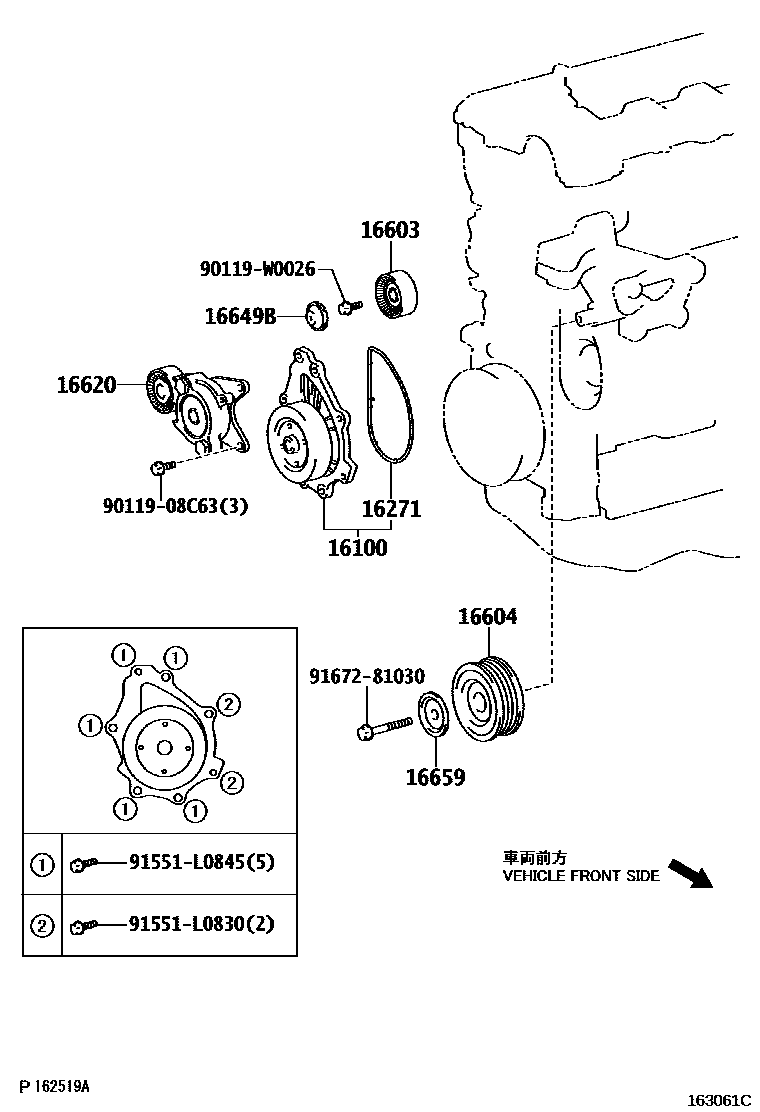

Parts diagram
16100PUMP ASSY, ENGINE WATER
main16100-09310i200802-200902
(L)
sub16100-29415
main16100-09340i200802-201306
sub16100-09341
main16100-09500i200810-200909
(L)
sub16100-09501
sub91551-80825
main16100-09501i200909-201304
(L)
sub16100-09502
main16100-29415i200802-200902
(J)
main16100-39395i200802-200902
main16100-39465i200802-200906
(J)
sub16100-39466
sub91551-80825
main16100-39466i200906-201304
(J)
main16100-39525i201008-201306
*251
sub16100-39526
main16100-39525i200902-201007
sub16100-39526
main16100-39525i201006-201306
*132
sub16100-39526
main16100-80004i200902-201306
sub16100-80010
sub91552-81050
16271GASKET, WATER PUMP
main16271-26010i200802-201306
main16271-33020i200802-200902
main16271-33030i201006-201306
*132
main16271-33030i201008-201306
*251
main16271-33030i200902-201007
main16271-37010i200802-201304
main16271-47031i200902-201306
16603PULLEY SUB-ASSY, IDLER, NO.1
main16603-0R010i200802-201306
16604PULLEY SUB-ASSY, IDLER, NO.2
main16604-26011i200802-201306
sub16604-26012
16620TENSIONER ASSY, V-RIBBED BELT
main16620-0R010i200802-201306
main16620-0W093i200802-200902
main16620-33020i201006-201303
*132
sub16620-33021
main16620-33020i200902-201007
sub16620-33021
main16620-33020i201008-201305
*251
sub16620-33021
main16620-33021i201303-201306
*132
sub16620-33022
main16620-33021i201305-201306
*251
sub16620-33022
main16620-47010i200902-201306
16649BPLATE, IDLER PULLEY COVER
main16649-0R010i200802-201306
16659PLATE, IDLER PULLEY COVER, NO.2
main16659-26010i200802-201306
9011908C63
main90119-08C63
90119W0026
main90119-W0026
91551L0830
main91551-L0830
91551L0845
main91551-L0845
9167281030
main91672-81030

12 parts on this diagram · 6 diagrams in section
