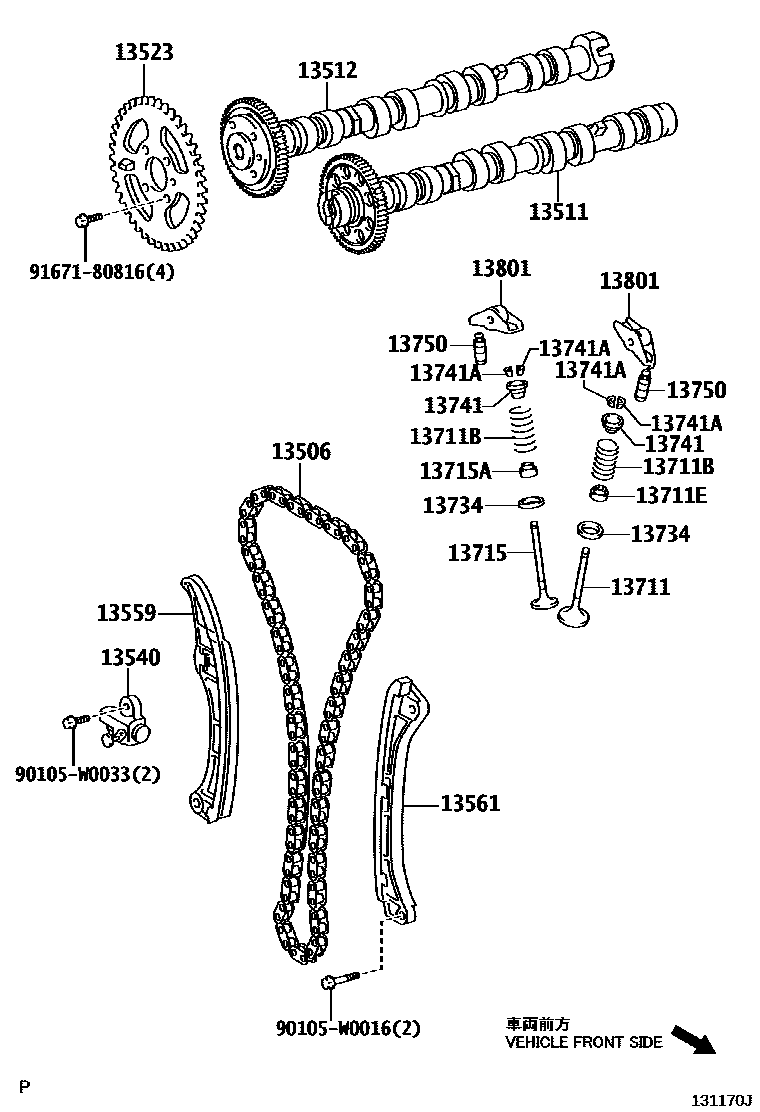

CAMSHAFT & VALVE
13511CAMSHAFT
(L)
(L)
(J)
(J)
*132
*251
13512CAMSHAFT, NO.2
(L)
(L)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13711VALVE, INTAKE
(L)
*251
(J)
13711BSPRING, COMPRESSION(FOR INNER)
(L)
(J)
13711ESEAL, INTAKE VALVE STEM OIL
(J)
(L)
13715VALVE, EXHAUST
(L)
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
(J)
(L)
13734SEAT, VALVE SPRING
*251
13741RETAINER, VALVE SPRING
*251
13741ALOCK, VALVE SPRING RETAINER
*132
13750ADJUSTER ASSY, VALVE LASH
(L)
(J)
90105W0016
main90105-W0016
90105W0033
main90105-W0033
9167180816
main91671-80816
20 parts on this diagram · 7 diagrams in section
