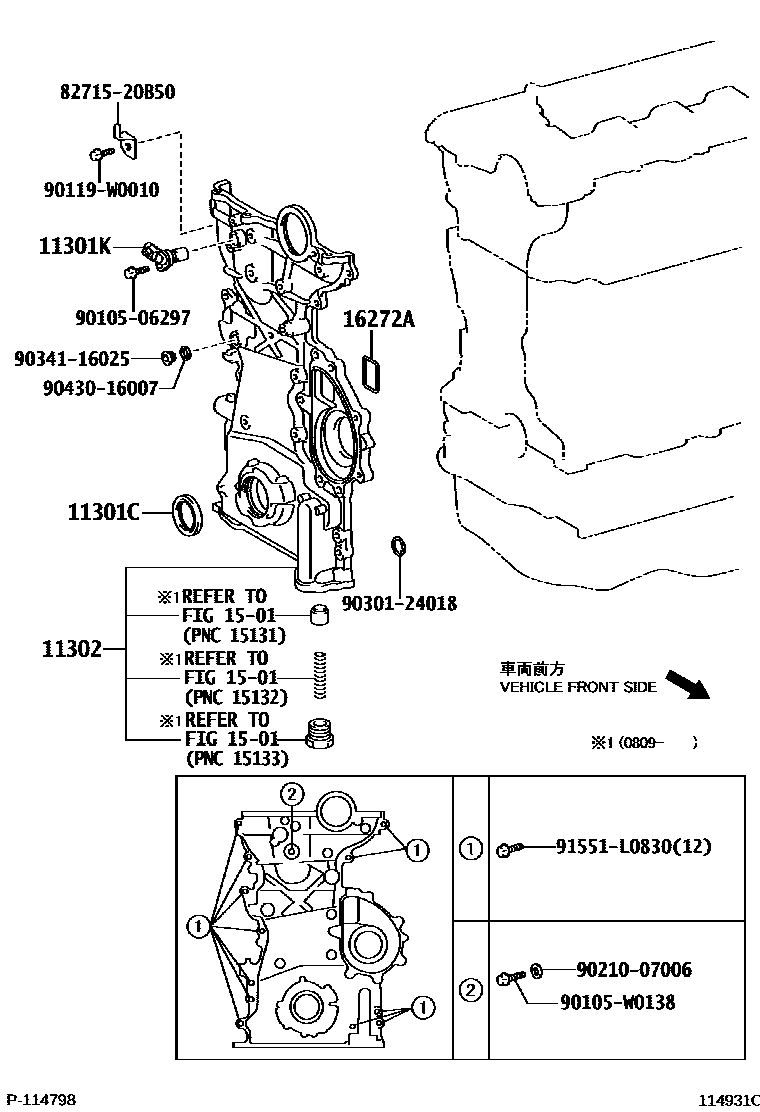

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-W0005i1ADFTV..ADE150200802-200807

sub90311-W0009

main90311-W0009i1ADFTV..ADE150200807-201306

sub90311-W0019

11301KSENSOR, CRANK POSITION

main90919-05029i1ADFTV..ADE150200802-201306

main90919-05030i4ZZFE..ZZE150200802-200902

main90919-05073i1NRFE..NRE150200902-201306

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-0R011i1ADFTV..ADE150200802-200809

sub11302-26020

main11302-0R020i1ADFTV..ADE150200809-201306

main11310-0T070i1ZRFE..ZRE151200810-201304

(L)

sub11310-0T071

main11310-33010i1NDTV..NDE150..D;1NDTV..NDE150..LHD..N200902-201007

sub11310-33040

sub13559-33021

main11310-33010i1NDTV..NDE150..DCR201008-201011

*251

sub11310-33040

sub13559-33021

main11310-33010i1NDTV..NDE150201006-201009

*132

sub11310-33040

sub13559-33021

main11310-33011i1NDTV..NDE150201011-201306

*251

sub11310-33012

main11310-33011i1NDTV..NDE150201009-201306

*132

sub11310-33012

main11310-37010i1ZR#..ZRE151200802-201201

(J)

sub11310-37011

main11310-37011i1ZRFAE..ZRE151201201-201304

(J)

main11310-47010i1NRFE..NRE150200902-200907

sub11310-47011

main11310-47011i1NRFE..NRE150200907-201306

sub11310-47012

sub91552-81050

sub91671-10825

main11321-0D020i4ZZFE..ZZE150200802-200902

(L)

main11321-22021i4ZZFE..ZZE150200802-200902

(J)

1501

16272AGASKET, WATER PUMP NO.2

main16272-26010i1ADFTV..ADE150200802-201306

8271520B50BRACKET,WIRING HARNESS CLAMP

main82715-20B50

9010506297

main90105-06297

90105W0138

main90105-W0138

90119W0010

main90119-W0010

9021007006

main90210-07006

9030124018

main90301-24018

9034116025

main90341-16025

9043016007

main90430-16007

91551L0830

main91551-L0830

14 parts on this diagram · 5 diagrams in section
