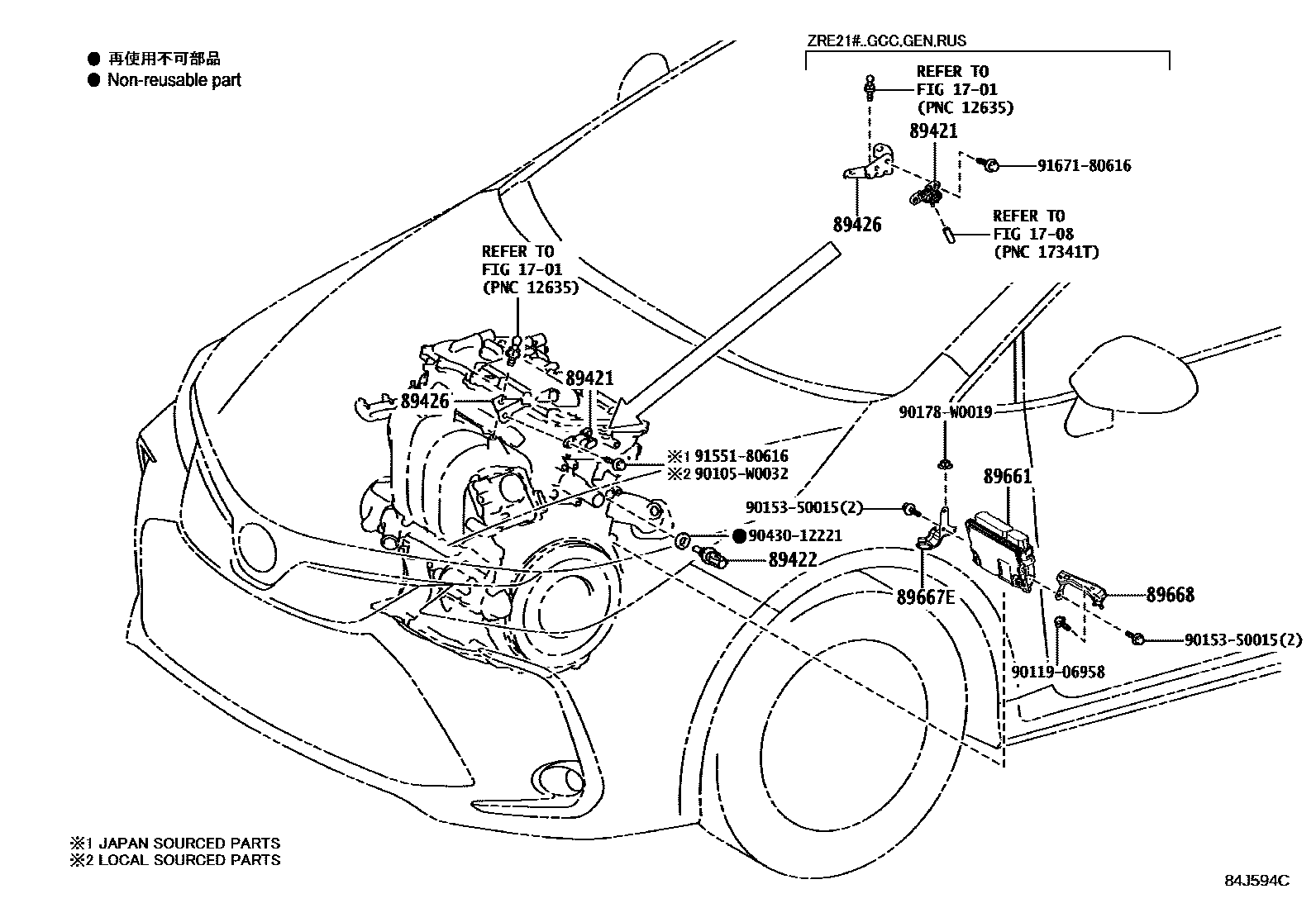

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1701

1708

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

main89421-33010iMZEA11..6F..G;MZEA11..RHD..6F;MZEA11..CVT..(D,G)..EUR202011-202301

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

89426BRACKET, VACUUM SENSOR

main89426-12270iZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

main89426-28080iZRE210..N..EUR201901-202301

89661COMPUTER, ENGINE CONTROL

main89661-0ZS10iZWE213202011

DENSO

main89661-0ZT40iZWE211..EUR202011

DENSO

main89661-0ZW90iZWE211..EUR201901-202011

DENSO

main89661-0ZX00iZWE211..GCC,GEN201901

DENSO

main89661-0ZY50iZRE210..LHD..6F..(D,N)..EUR201901-202103

DENSO

main89661-0ZY51iZRE210..6F..N..EUR202301

DENSO,*614

main89661-0ZY51iZRE210..6F..N..EUR202104-202301

DENSO

main89661-0ZY60iZRE210..CVT..G..EUR;ZRE210..RHD..CVT..EUR201901-202103

DENSO

main89661-0ZY61iZRE210..CVT..N..EUR202104-202301

DENSO

main89661-0ZY61iZRE210..CVT..N..EUR202301

DENSO,*614

main89661-0ZY90iZRE210..6F..N..RUS201901-202301

DENSO

main89661-0ZY90iZRE210..6F..GEN201901

DENSO,EXHAUST EMISSION CONTROL-EURO5+

main89661-0ZZ00iZRE210..CVT..RUS201901-202301

DENSO,EXHAUST EMISSION CONTROL-EURO5+

main89661-0ZZ00iZRE210..CVT..RUS201901-202301

DENSO

main89661-0ZZ10iZRE210..6F..(GCC,GEN)201901

DENSO

main89661-0ZZ20iZRE210..CVT..N..GCC;ZRE210..RHD..CVT..D..GEN201901-202301

DENSO

main89661-0ZZ30iZRE211..G;ZRE211..RHD201901-202301

DENSO

main89666-02C30iMZEA11..CVT202011-202106

DENSO

sub89666-02C31

main89666-02C31iMZEA11..CVT202107-202203

DENSO

sub89666-02C32

main89666-02C32iMZEA11..CVT..(D,G)..EUR202204-202301

DENSO

main89666-02C40iMZEA11..LHD..D202011-202106

DENSO

sub89666-02C41

main89666-02C41iMZEA11..LHD..D202107-202203

DENSO

main89666-02C42iMZEA11..LHD..D202204-202301

DENSO

main89666-02C50iMZEA11..RHD..6F;MZEA11..6F..(G,N)202011-202106

DENSO

main89666-02C51iMZEA11..RHD..6F;MZEA11..6F..(G,N)202107-202203

DENSO

main89666-02C52iMZEA11..6F..G;MZEA11..RHD..6F202204-202301

DENSO

main89666-02D20iMZEA11..CVT..TUR;MZEA11..CVT..N..EUR202301-202502

DENSO,*614

main89666-02D30iMZEA11..LHD..6F..(D,N)202301-202502

DENSO,*614

main89666-02D50iZRE210..CVT..N..GEN;ZRE210..LHD..CVT..D..(GCC,GEN)202301

DENSO,*614

main89666-02D60iZRE211..LHD..N202301

DENSO,*614

main89666-02D90iZWE219202301-202309

HITACHI ASTEMO,*614

main89666-02D91iZWE219202310-202502

HITACHI ASTEMO,*614

main89666-02K00iZRE210..6F..D..RUS202301

DENSO,*614

main89666-02K10iZRE210..CVT..RUS202301-202406

DENSO,*614

main89666-02M20iZRE210..CVT..RUS202406

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02470iMZEA11..TUR;MZEA11..LHD..(D,N)..EUR202011-202301

main89667-02500iZWE211,213201901

main89667-02680iZWE219202301

main89667-F4010iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02470iMZEA11..LHD..(D,N)202011-202301

main89668-02530iZRE210..N..EUR;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

main89668-02670iZWE219202301

main89668-F4020iZWE211,213201901

90105W0032

main90105-W0032

9011906958

main90119-06958

9015350015

main90153-50015

90178W0019

main90178-W0019

9043012221

main90430-12221

9155180616

main91551-80616

9167180616

main91671-80616

15 parts on this diagram · 4 diagrams in section
