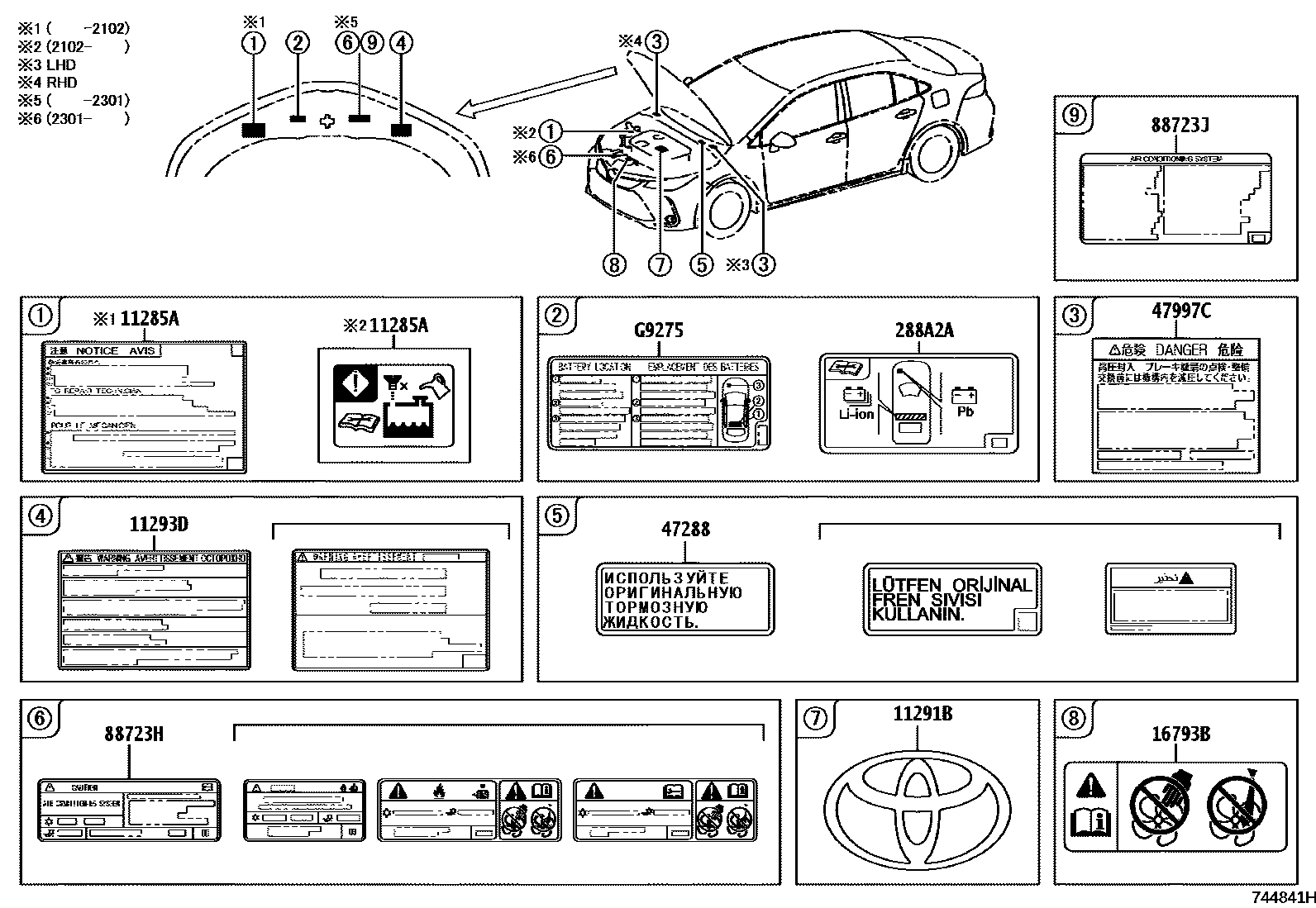

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0T110i2ZRFXE..ZWE211,213;M15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202102

main11285-0T120i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)202102-202301

main11285-33030iM15AFKS,2ZRFXE..MZEA11,ZWE21#201901-202102

main11285-33040i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202012

11291BPLATE, ENGINE NAME

main11290-37010i2ZRFXE..ZWE211201901-201903

main11291-37100i2ZRFXE..ZWE219202301-202402

main11291-37130i2ZRFXE..ZWE219202402

11293DLABEL, ENGINE CAUTION

main11293-36070i2ZRFXE..ZWE211,213..EUR,GEN201901

main11293-37060i2ZRFXE..ZWE211..GCC201901

16793BLABEL, COOLING FAN INFORMATION

main16793-36030i1ZRFE..ZRE210..D..RUS;M15AFKS..MZEA11..LHD..(D,N);1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

288A2ALABEL, BATTERY LOCATION, NO.2

main288A2-0T010i2ZRFXE..ZWE219202301

47288LABEL, BRAKE FLUID NOTICE

main47288-52010iZRE210..6F..N..RUS202011

(J)

main47288-64010iZWE219..TUR202301

UKRAINE SPEC

main47288-71010iZRE211..G..GCC;ZRE210..6F..GCC201901

main47288-F4010iZRE210..CVT..RUS;ZRE210..6F..D..RUS202301

(L)

47997CLABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iZWE211,213202011

(J)

main47997-F4010iZWE211,213202011

(L)

88723HLABEL, COOLER SERVICE CAUTION

main88723-02350iZWE211..GCC,GEN201901

UKRAINE SPEC

main88723-02410iZRE210..LHD..6F..D..EUR201901

UKRAINE SPEC

main88723-02420iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

main88723-02610iZWE219..EUR202406

main88723-02770supersedes 88723-02780iZWE219..TUR202301

UKRAINE SPEC

main88723-02780iZWE219..EUR202301-202406

main88723-02790iZRE210..N..EUR;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)202301

main88723-02800supersedes 88723-02800iMZEA11..TUR202301

main88723-F4100iZWE211,213..EUR201901

88723JLABEL, COOLER SERVICE CAUTION, NO.2

main88733-0H010iZWE219..EUR;MZEA11..LHD..(D,N)..EUR202406

G9275LABEL, BATTERY CAUTION, NO.1

mainG927502070iZWE211202109

(L)

mainG927547110iZWE211202109

(J)

mainG927547140iZWE213202011

10 parts on this diagram · 3 diagrams in section
