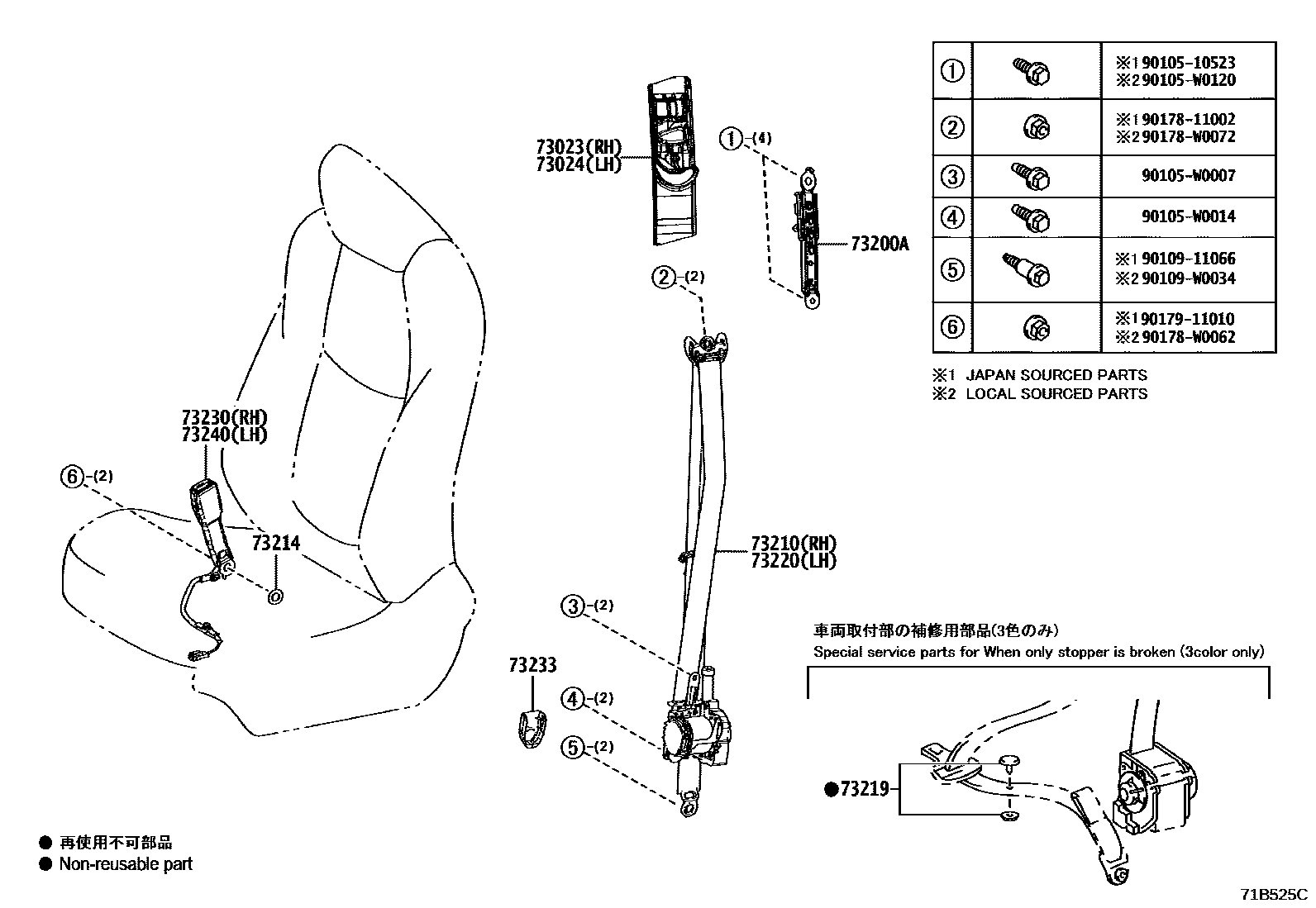

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-02110-C0iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-02110-C0iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-F4010iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-02691-C0iMZEA11..TUR;MZEA11..6F..N..EUR;ZRE211..LHD..N..GEN;ZWE219..(G,N)..(EUR,TUR);ZRE210..CVT..(G,N)..(GEN,RUS)202301
BLACK,TRIM1#,2#
main73210-02691-C0iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)202208-202301
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
73214PLATE, FRONT SEAT BELT ANCHOR
main73214-75010iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥170202301
GR SPORT
main73214-75010iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥170202301
GR SPORT&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)
73219STOPPER, TONGUE PLATE
main73219-33010iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)¥100201901-202301
BLACK
main73219-33020iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)¥100201901-202301
GRAY
main73219-33030iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1¥100201901-202301
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-02630-C0iZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#201901-202207
BLACK,TRIM0#,2#
sub73220-02631
main73220-02631-C0iMZEA11..TUR;MZEA11..6F..N..EUR;ZRE211..LHD..N..GEN;ZWE219..(G,N)..(EUR,TUR);ZRE210..CVT..(G,N)..(GEN,RUS)202301
BLACK,TRIM0#,1#,2#
main73220-02631-C0iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)202208-202301
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
main73230-02C20-C0iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;ZWE219..D..TUR;MZEA11,ZRE210..N..EUR;ZRE210..LHD..CVT..(G,N)..(GEN,RUS)202301
BLACK,TRIM0#,1#,2#
main73230-02C20-C0iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;ZWE219..D..TUR;MZEA11,ZRE210..N..EUR;ZRE210..LHD..CVT..(G,N)..(GEN,RUS)202301
GR SPORT,BLACK,TRIM0#,1#,2#
main73230-02C20-C0iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;ZWE219..D..TUR;MZEA11,ZRE210..N..EUR;ZRE210..LHD..CVT..(G,N)..(GEN,RUS)202301
GR SPORT&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-02040-C2iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM0#,2#
GR SPORT,BLACK,TRIM0#,1#,2#
GR SPORT&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
9010510523
90105W0007
90105W0014
90105W0120
9010911066
90109W0034
main90109-W0034
9017811002
90178W0062
90178W0072
main90178-W0072
9017911010
20 parts on this diagram · 2 diagrams in section
