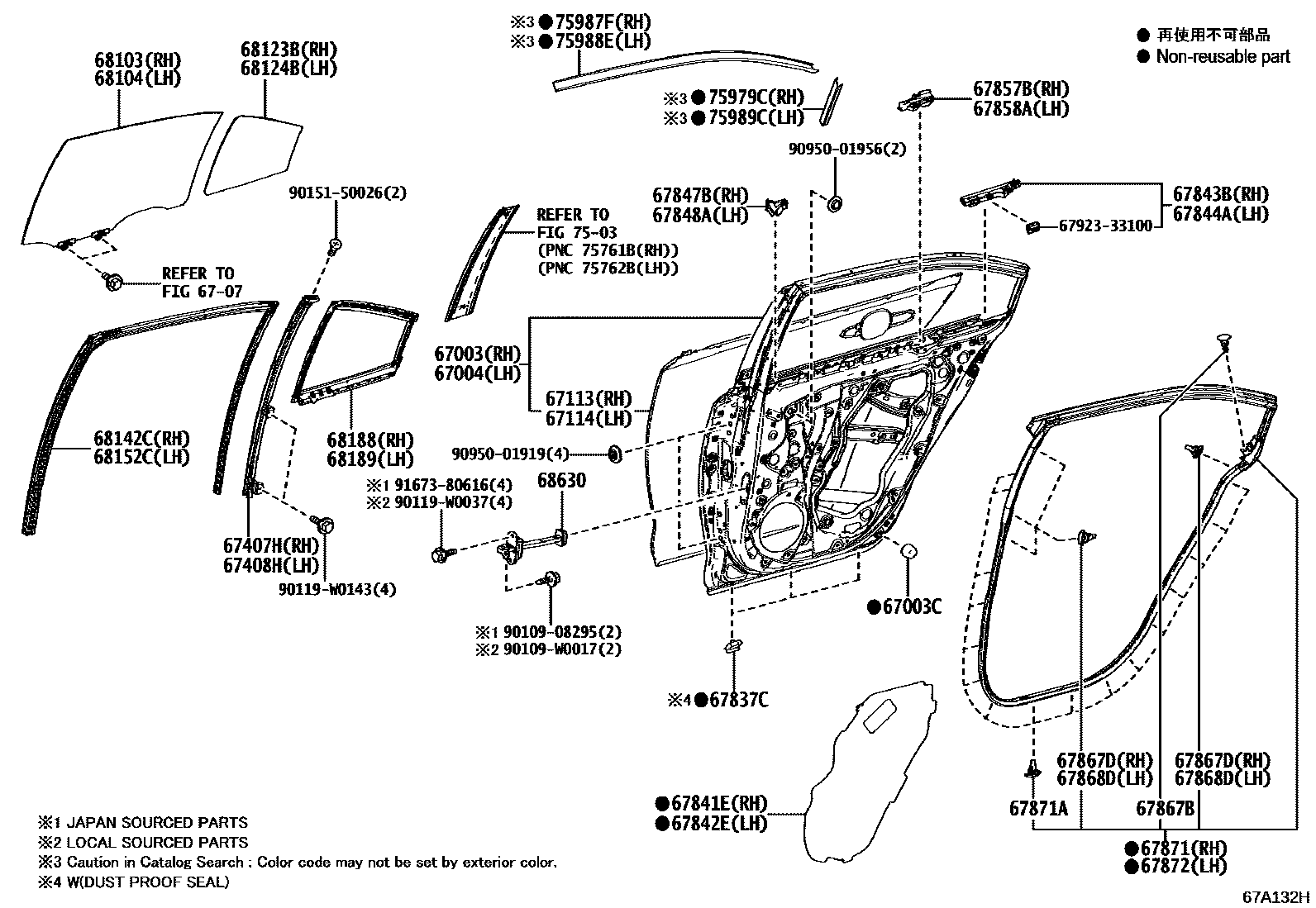

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02550iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

67003CCUSHION, REAR DOOR PANEL

main90541-09124×2iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02550iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-02300iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

67114PANEL, REAR DOOR, OUTER LH

main67114-02300iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-12360iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-12360iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

67837CSEAL, REAR DOOR DUST PROOF

main67837-F4020iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02440iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02410iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-02030iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-02030iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-02100iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-02040iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-02120iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

67858APROTECTOR, REAR DOOR PANEL, LH

main67858-02120iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30030×2iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×4iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×4iZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR201901-201904

LIGHT GRADE

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02340iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150×32iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02340iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02580supersedes 68103-02590iZRE210..G..RUS201901-202301

GEORGIA SPEC&BACK GLASS-GREEN

main68103-02590supersedes 68103-02580iZRE211..G..GCC;ZRE210,ZWE211..(G,N)..GCC201901

SYRIA SPEC&BACK GLASS-PRIVACY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02580supersedes 68104-02590iZRE210..G..RUS201901-202301

GEORGIA SPEC&BACK GLASS-GREEN

main68104-02590supersedes 68104-02580iZRE210..G..EUR201901-202012

BACK GLASS-PRIVACY

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02500supersedes 68123-02510iZRE210..G202301

BACK GLASS-GREEN

main68123-02510supersedes 68123-02500iZRE210..G..EUR201901-202012

BACK GLASS-PRIVACY

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02500supersedes 68124-02510iZRE211..G..GEN201901

BACK GLASS-GREEN

main68124-02510supersedes 68124-02500iZRE211..G..GCC;ZRE210,ZWE211..(G,N)..GCC201901

SYRIA SPEC&BACK GLASS-PRIVACY

68142CRUN, REAR DOOR GLASS, RH

main68142-02370iZRE21#,ZWE211201901-202002

main68142-02371iZRE210..G..EUR;ZRE210..RHD..EUR202003-202012

68152CRUN, REAR DOOR GLASS, LH

main68152-02370iZRE21#,ZWE211201901-202002

main68152-02371iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)202003-202301

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02250iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02250iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

68630CHECK ASSY, REAR DOOR

main68630-02340×2iMZEA11,ZRE21#,ZWE21#201901-202212

main68630-02440×2iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202307

7503

75979CSTRIPE, REAR DOOR, OUTSIDE UPPER RH

main75979-02030iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

BLACK OUT TAPE-WITH,0 OR 1PIECE,REF.ILL.

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-02030iMZEA11..(G,N)..TUR;MZEA11,ZRE210..N..EUR;ZWE219..(G,N)..(EUR,GEN,TUR);ZRE210..LHD..CVT..(G,N)..(GEN,RUS)202301

BLACK OUT TAPE-WITH,0 OR 1PIECE,REF.ILL.

75988ESTRIPE, REAR DOOR, OUTSIDE LH

main75988-02030iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

BLACK OUT TAPE-WITH,0 OR 1PIECE,REF.ILL.

75989CSTRIPE, REAR DOOR, OUTSIDE UPPER LH

main75989-02030iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

BLACK OUT TAPE-WITH,0 OR 1PIECE,REF.ILL.

6792333100CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-33100

9010908295

main90109-08295

90109W0017

main90109-W0017

90119W0037

main90119-W0037

90119W0143

main90119-W0143

9015150026

main90151-50026

9095001919

main90950-01919

9095001956

main90950-01956

9167380616

main91673-80616

46 parts on this diagram · 2 diagrams in section
