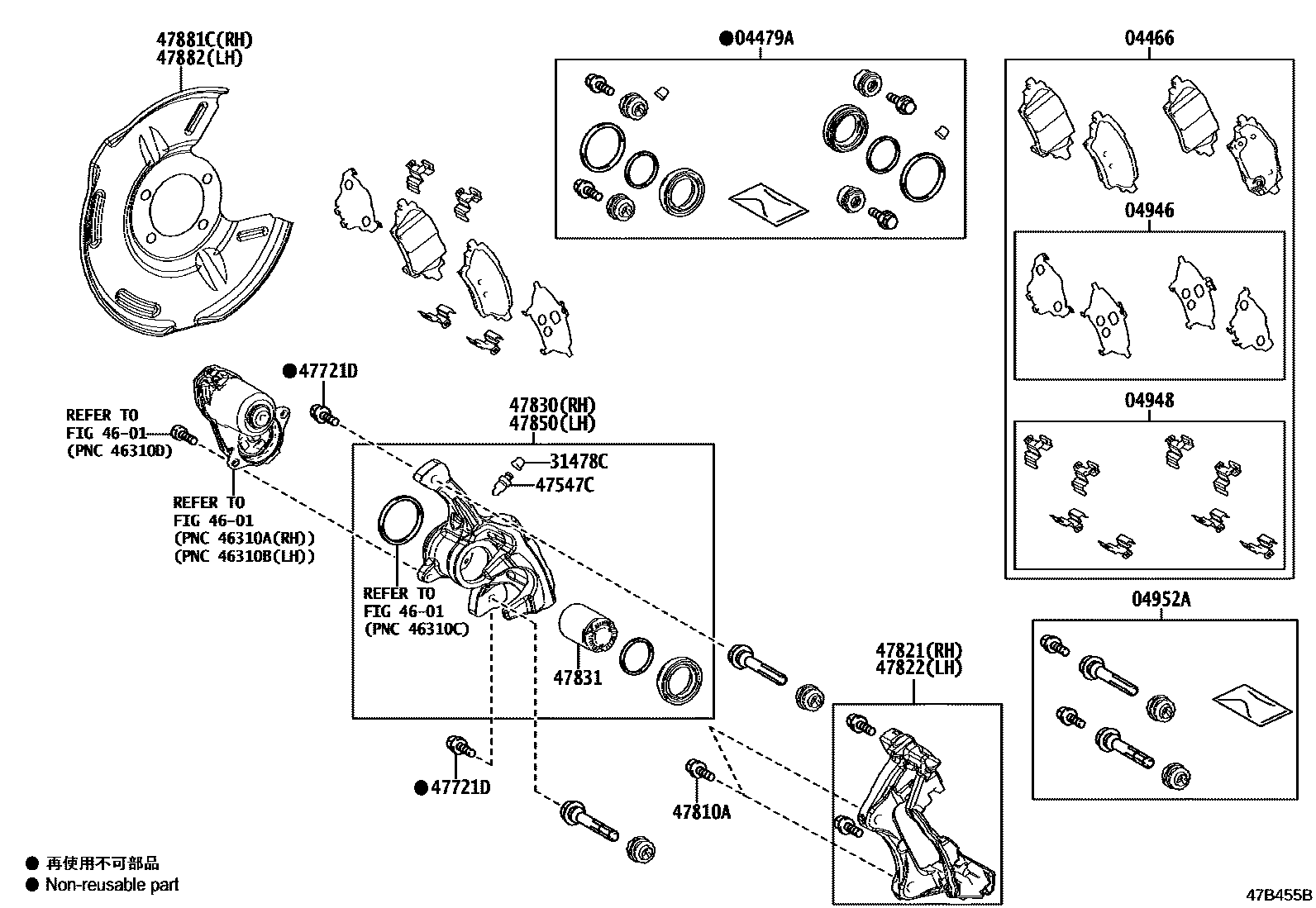

REAR DISC BRAKE CALIPER & DUST COVER

0001 1TRW 0002 1BOSCH 0003 1ADVICS

04466PAD KIT, DISC BRAKE, REAR

main04466-02400iMZEA11..RHD..6F;ZRE210..RHD..EUR;MZEA11..6F..(G,N);ZRE210..(G,N)..EUR;MZEA11,ZWE21#..CVT201901-202104

MARK NBK D6360

main04466-02401iZWE219;MZEA11..TUR;ZRE210..CVT..N..EUR;MZEA11..LHD..(D,N)..EUR202104

MARK NBK D6360

main04466-02410iZRE21#..LHD..(GCC,GEN)201901-202101

MARK NBK D6360,BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04466-02410iZRE211;ZRE210..RHD..GEN;MZEA11,ZRE210..LHD..D;ZRE210..LHD..(G,N)..(GCC,GEN,RUS)201901-202101

MARK NBK D6360

main04466-02470iZRE211..N..GCC;ZRE210..CVT..D..GCC202101

MARK NBK D6360

main04466-02470iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

MARK NBK D6360,BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04466-02470iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

MARK NBK D6360,BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main04466-47110iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

MARK NBK 478-XW5P

main04466-47110iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

MARK NBK 478-XW5P,BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04466-47110iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

MARK NBK 478-XW5P,BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02440iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main04479-02440iZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(G,N)..(GCC,GEN,RUS);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN,RUS)201901

main04479-02440iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04479-12260iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main04479-12260iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04479-F4010iZWE219;MZEA11..TUR;ZRE210..CVT..N..EUR;MZEA11..LHD..(D,N)..EUR201901

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02140iMZEA11,ZRE210..N..EUR201901-202301

main04946-47070iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04946-47070iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

04948FITTING KIT, DISC BRAKE, REAR

main04948-02160iZRE21#..LHD..CVT..(D,N)..GEN202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main04948-02160iZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(G,N)..(GCC,GEN,RUS);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN,RUS)201901

main04948-02160iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04948-12060iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main04948-12060iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04948-F4010iZWE219;MZEA11..TUR;ZRE210..CVT..N..EUR;MZEA11..LHD..(D,N)..EUR201901

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02221iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04952-02221iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main04952-02221iZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(G,N)..(GCC,GEN,RUS);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN,RUS)201901

main04952-F4020iMZEA11..RHD..6F;ZRE210..RHD..EUR;ZRE210..(G,N)..EUR;MZEA11..6F..(G,N)..EUR;MZEA11,ZWE211,213..CVT..(EUR,GCC,GEN)201901

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main31478-52010iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main90069-39001iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main90069-39001iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main90069-39001iZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(G,N)..(GCC,GEN,RUS);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN,RUS)201901

main90069-39027iZWE219;MZEA11..TUR;ZRE210..CVT..N..EUR;MZEA11..LHD..(D,N)..EUR201901

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-F4030iZWE219;MZEA11..TUR;ZRE210..CVT..N..EUR;MZEA11..LHD..(D,N)..EUR201901

main47847-52050iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47847-52050iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main90069-39000iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main90069-39000iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main90069-39000iZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(G,N)..(GCC,GEN,RUS);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN,RUS)201901

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main47715-05060iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

sub47715-28060

main47715-05060iZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(G,N)..(GCC,GEN,RUS);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN,RUS)201901

sub47715-28060

main47715-05060iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

sub47715-28060

main90015-AA102iZRE21#..LHD..CVT..(D,N)..GEN202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main90015-AA102iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main90069-31417iMZEA11..RHD..6F;ZRE210..RHD..EUR;ZRE210..(G,N)..EUR;MZEA11..6F..(G,N)..EUR;MZEA11,ZWE211,213..CVT..(EUR,GCC,GEN)201901

*8-1.00PX22-10

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS201901

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09100iZWE219;MZEA11..TUR;ZRE210..CVT..N..EUR;MZEA11..LHD..(D,N)..EUR201901

main47821-09110iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47821-09110iZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(G,N)..(GCC,GEN,RUS);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN,RUS)201901

main47821-09110iZRE21#..LHD..CVT..(D,N)..GEN202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47821-47110iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47821-47110iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-47110iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47821-47110iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47822-09100iMZEA11..RHD..6F;ZRE210..RHD..EUR;ZRE210..(G,N)..EUR;MZEA11..6F..(G,N)..EUR;MZEA11,ZWE211,213..CVT..(EUR,GCC,GEN)201901

main47822-09110iZRE21#..LHD..CVT..(D,N)..GEN202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47822-09110iZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(G,N)..(GCC,GEN,RUS);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN,RUS)201901

main47822-09110iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02360iMZEA11..RHD..6F;ZRE210..RHD..EUR;ZRE210..(G,N)..EUR;MZEA11..6F..(G,N)..EUR;MZEA11,ZWE211,213..CVT..(EUR,GCC,GEN)201901

main47830-02370iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47830-02370iZRE21#..LHD..CVT..(D,N)..GEN202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47830-02370iZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(G,N)..(GCC,GEN,RUS);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN,RUS)201901

main47830-47111iZRE21#..LHD..CVT..(D,N)..GEN202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47830-47111iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

47831PISTON, REAR DISC BRAKE

main47831-52050iZRE21#..LHD..CVT..(D,N)..GEN202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47831-52050iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47831-F4030iZWE219;MZEA11..TUR;ZRE210..CVT..N..EUR;MZEA11..LHD..(D,N)..EUR201901-202301

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02350iMZEA11..RHD..6F;ZRE210..RHD..EUR;ZRE210..(G,N)..EUR;MZEA11..6F..(G,N)..EUR;MZEA11,ZWE211,213..CVT..(EUR,GCC,GEN)201901

main47850-02360iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47850-02360iZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(G,N)..(GCC,GEN,RUS);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN,RUS)201901

main47850-02360iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47850-47111iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47850-47111iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-02190iMZEA11..RHD..6F;ZRE210..RHD..EUR;ZRE210..(G,N)..EUR;MZEA11..6F..(G,N)..EUR;MZEA11,ZWE211,213..CVT..(EUR,GCC,GEN)201901

main47881-02200iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47881-02200iZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(G,N)..(GCC,GEN,RUS);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN,RUS)201901

main47881-02200iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47881-47010iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47881-47010iZRE21#..LHD..CVT..(D,N)..GEN202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

47882COVER, DISC BRAKE DUST, REAR LH

main47882-02190iMZEA11..RHD..6F;ZRE210..RHD..EUR;ZRE210..(G,N)..EUR;MZEA11..6F..(G,N)..EUR;MZEA11,ZWE211,213..CVT..(EUR,GCC,GEN)201901

main47882-02200iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47882-02200iZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(G,N)..(GCC,GEN,RUS);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN,RUS)201901

main47882-02200iZRE210..D..RUS;ZRE210..6F..N..EUR;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47882-47010iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47882-47010iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

17 parts on this diagram · 3 diagrams in section
