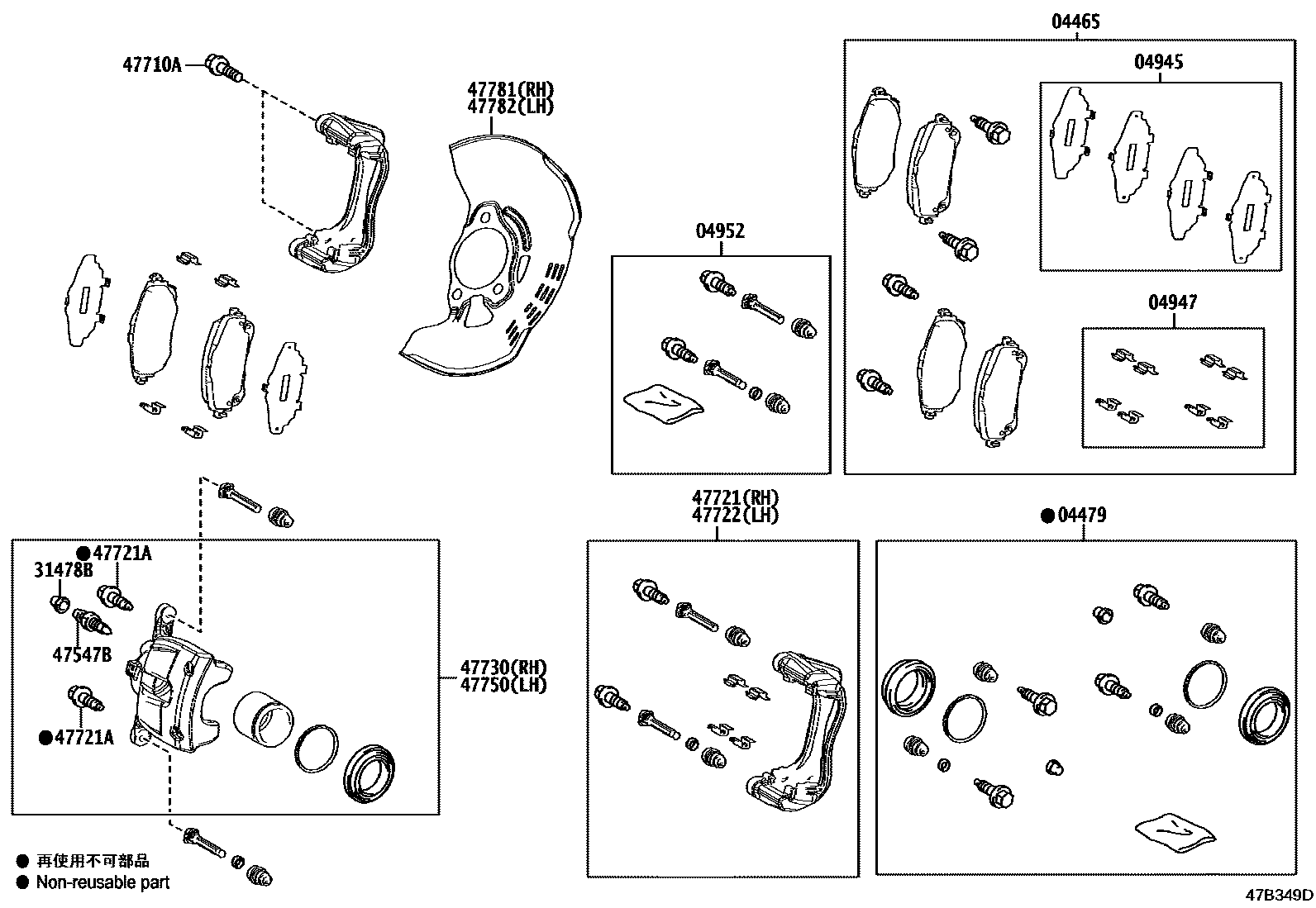

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1BOSCH 0002 1ADVICS

04465PAD KIT, DISC BRAKE, FRONT

main04465-02470iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

MARK GALFER GA5019,BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04465-02470iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

MARK GALFER GA5019,BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main04465-02470iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS201901

MARK GALFER GA5019

main04465-02480iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

MARK ADVICS VC084H

main04465-02480iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

MARK ADVICS VC084H,BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04465-02480iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

MARK ADVICS VC084H,BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02380iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS201901

main04478-02380iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04478-02380iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main04478-02420iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04478-02420iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02240iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS201901

main04945-02240iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04945-02240iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main04945-02270iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04945-02270iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02140iZRE21#..LHD..CVT..(D,N)..GEN¥2,080202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main04947-02140iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS¥2,080201901

main04947-02140iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)¥2,080202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04947-02170iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main04947-02170iZRE21#..LHD..CVT..(D,N)..GEN202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02311iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS201901

main04952-02311iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main04952-02311iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main31478-0N010iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main90069-39026iZRE21#..LHD..CVT..(D,N)..GEN¥100202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main90069-39026iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS¥100201901

main90069-39026iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)¥100202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZRE211..N..GCC;ZRE210..CVT..D..GCC¥200202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47547-20010iZRE211..N..GCC;ZRE210..CVT..D..GCC¥200202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main90069-39025iZRE211..N..GCC;ZRE210..CVT..D..GCC¥190202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main90069-39025iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS¥190201901

main90069-39025iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)¥190202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-W0121iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS¥160201901

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02640iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47721-02640iZRE21#..LHD..CVT..(D,N)..GEN202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47721-09570iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47721-09570iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS201901

main47721-09570iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main47715-05060iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS¥750201901

sub47715-28060¥620

main47715-05060iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)¥750202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

sub47715-28060¥620

main47715-05060iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)¥750202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

sub47715-28060¥620

main90016-AA608iZRE21#..LHD..CVT..(D,N)..GEN202301

*8-1.00PX23-15,BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main90016-AA608iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

*8-1.00PX23-15

main90016-AA608iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

*8-1.00PX23-15,BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-02540iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47722-02540iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47722-09260iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47722-09260iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS201901

main47722-09260iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02590iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS201901

main47730-02590iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47730-02590iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47730-02640iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47730-02640iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02490iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS201901

main47750-02490iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47750-02490iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47750-02540iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47750-02540iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-F4010iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-F4010iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

15 parts on this diagram · 2 diagrams in section
