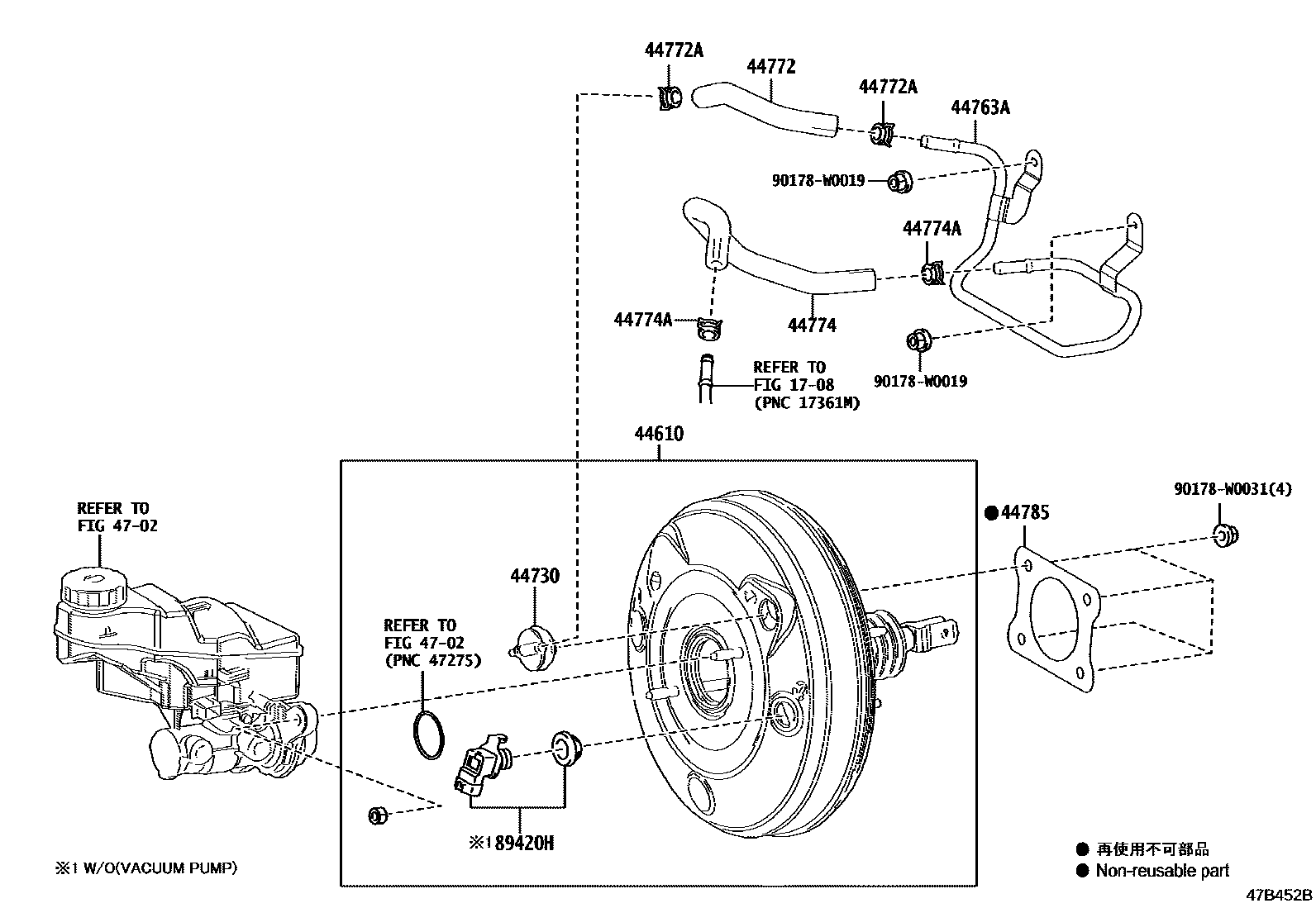

BRAKE BOOSTER & VACUUM TUBE

0001 1BOSCH 0002 1BOSCH 0003 1ADVICS 0004 1 0005 1

1708

44610BOOSTER ASSY, BRAKE

main44610-09F90iMZEA11,ZRE210..LHD..CVT..EUR201901

main44610-09G00iZRE210..6F..N..EUR;MZEA11..LHD..6F..(D,N)201901

main44610-09G20iMZEA11,ZRE210..RHD..EUR201901

main44610-09G30iZRE210..LHD..CVT..GEN202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main44610-09G30iZRE21#..LHD..CVT..(GCC,GEN,RUS)201901

main44610-09G30iZRE211..LHD..N..GEN;ZRE210..LHD..CVT..(GEN,RUS)202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main44610-09G30iZRE211..LHD..N..GEN;ZRE210..LHD..CVT..(GEN,RUS)202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main44610-09G40iZRE210..6F..D..RUS201901

main44610-09G50iZRE21#..RHD..GEN202001

main44610-12N70iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main44610-12N70iZRE210..LHD..CVT..GEN202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main44610-12N70iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-F9010iMZEA11,ZRE21#..EUR,GCC,GEN,RUS201901

main44730-F9010iMZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main44730-F9010iMZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main44730-F9010iMZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12570iMZEA11..RHD202011

main44763-12600iZRE210..N..EUR;ZRE211..LHD..N;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS)201901-202301

main44763-12610iZRE211..RHD;ZRE210..RHD..6F..N;ZRE210..RHD..D..GEN201901-202301

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-10220iMZEA11..RHD202011

main44772-12800iMZEA11..LHD..(D,N)202011-202301

main44772-12860iZRE210..N..EUR;ZRE211..LHD..N;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS)201901-202301

main44772-12870iZRE210..RHD..CVT..N201901-202301

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iZRE210..N..EUR;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12A30iZRE210..G..EUR201901-202301

main44774-12A40iZRE210..RHD..CVT..N201901-202301

main44774-12B00iMZEA11..RHD202011

sub44774-12A20

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iZRE210..N..EUR;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

44785GASKET, BRAKE BOOSTER

main44785-05020iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

4702

89420HSENSOR ASSY, VACUUM

main89421-09010iZRE21#..GCC,GEN,RUS201901

main89421-09010iZRE210..6F..D..RUS;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..(GEN,RUS)202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main89421-09010iZRE210..6F..D..RUS;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..(GEN,RUS)202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main89421-09010iZRE210..6F..D..RUS;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..(GEN,RUS)202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main89421-52020iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

EGYPT SPEC

main89421-52020iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

LEBANON SPEC

90178W0019

main90178-W0019

90178W0031

main90178-W0031

13 parts on this diagram · 5 diagrams in section
