BRAKE MASTER CYLINDER

0001 1BOSCH 0002 1BOSCH 0003 1 0004 1 0005 1ADVICS 0006 1 0007 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09A00iMZEA11,ZRE21#..RHD201901

main47201-09B10iZWE219..RHD202301

main47201-09B20iZWE219..LHD202301

main47201-12C30iZRE210..LHD..CVT..GEN202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47201-12C30iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47201-12C30iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47201-F9020iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47201-F9020iMZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47201-F9020iMZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47201-F9020iMZEA11,ZRE21#..LHD..(EUR,GCC,GEN,RUS)201901

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-09270iMZEA11,ZRE21#..RHD201901

main47220-09330iZWE219..LHD202301

main47220-09340iZWE219..RHD202301

main47220-12320iZRE210..LHD..CVT..GEN202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47220-12320iZRE211..LHD..N..GEN202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47220-12320iZRE211..LHD..N..GEN202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47220-F9020iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47220-F9020iMZEA11,ZRE21#..LHD..(EUR,GCC,GEN,RUS)201901

main47220-F9020iMZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47220-F9020iMZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47230-47090iZWE211,213..LHD201901

main47230-47090iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47230-47090iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47230-F4010iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47230-F4010iMZEA11,ZRE21#..EUR,GCC,GEN,RUS201901

main47230-F4010iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47230-F4010iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iMZEA11,ZRE21#..EUR,GCC,GEN,RUS201901

main47255-09040iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47255-09040iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47255-09040iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main90029-48001iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

sub90016-AT001

main90029-48001iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

sub90016-AT001

main90029-48001iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

sub90016-AT001

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iMZEA11,ZRE21#..EUR,GCC,GEN,RUS201901

main47275-09010iMZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47275-09010iMZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47275-09010iMZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iMZEA11,ZRE21#..EUR,GCC,GEN,RUS201901

main47299-02160iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47299-02160iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47299-02160iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main47299-20060iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

EGYPT SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47299-20060iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

LEBANON SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main47299-20060iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

IRAQ SPEC&BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

82715F4260BRACKET,WIRING HARNESS CLAMP

main82715-F4260

9006932060

main90069-32060

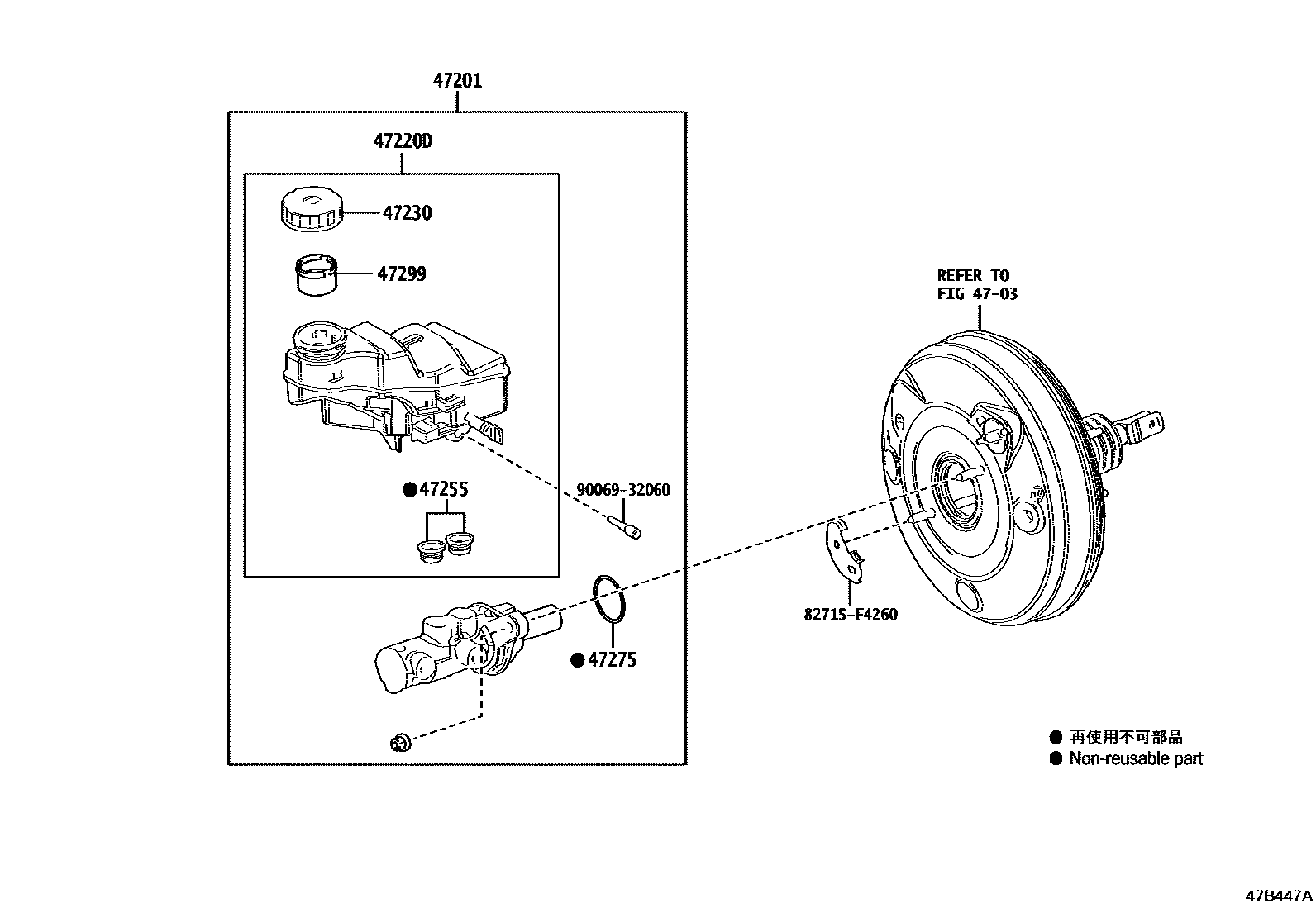

9 parts on this diagram · 7 diagrams in section
