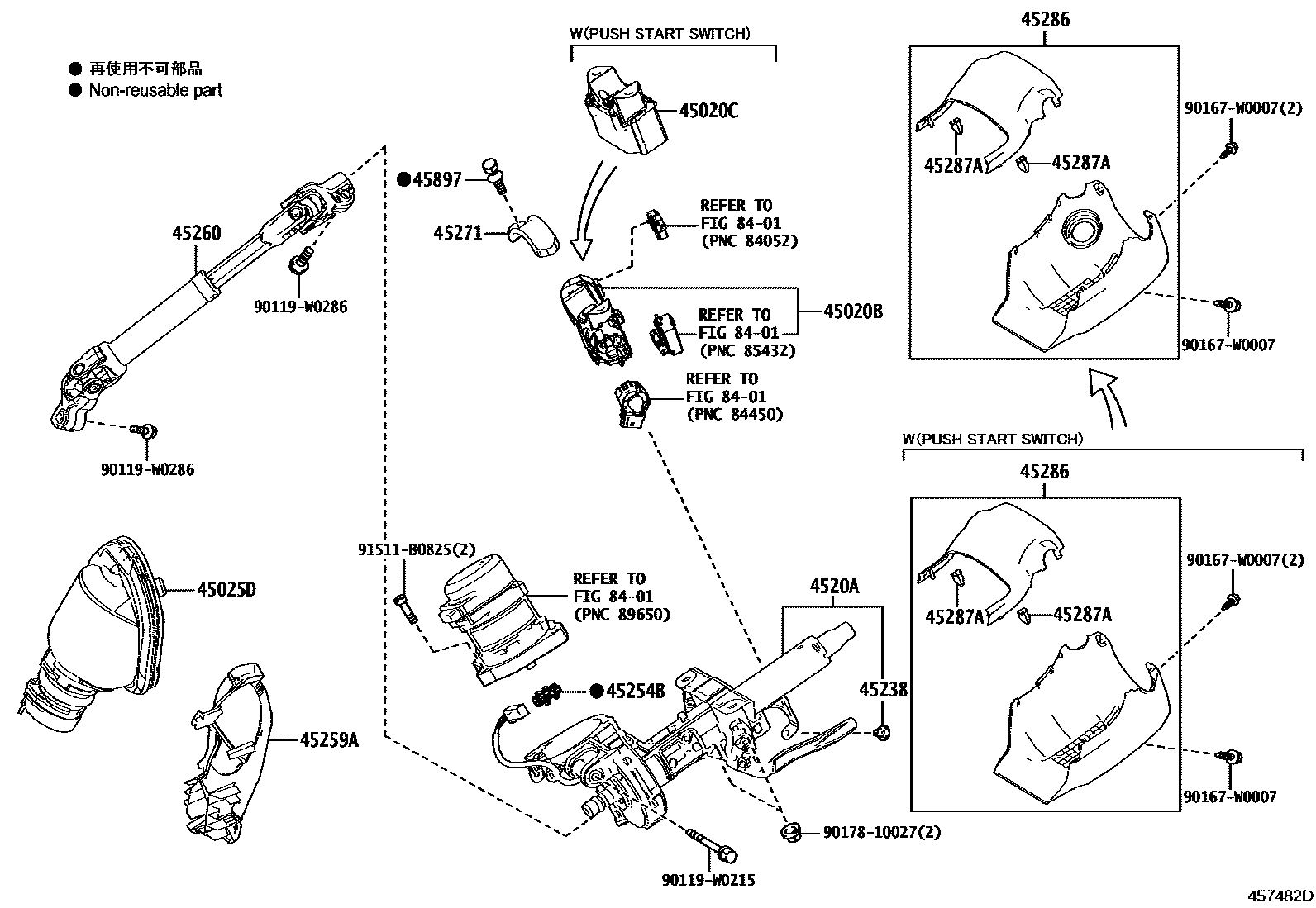

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
main45280-02420iZRE210..CVT..N..GCC;MZEA11,ZRE211..RHD..CVT;ZRE210..RHD..CVT..D..GEN;ZRE210..LHD..CVT..D..EUR201901-202301
GR SPORT&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH STARTSWITCH(FOR GR SPORT)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH START SWITCH
GERMANY SPEC
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH START SWITCH
GR SPORT&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH STARTSWITCH(FOR GR SPORT)
GERMANY SPEC
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
STARTING SYSTEM-PUSH START SWITCH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)
GR SPORT&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH STARTSWITCH(FOR GR SPORT)
STARTING SYSTEM-PUSH START SWITCH
GERMANY SPEC&STARTING SYSTEM-PUSH START SWITCH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH START SWITCH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-02280iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)201901-202406
main45025-02281iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202407
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
STARTING SYSTEM-PUSH START SWITCH
STARTING SYSTEM-PUSH START SWITCH
STARTING SYSTEM-PUSH START SWITCH
main4520A-02620iZRE210..N..EUR;ZRE211..LHD..N;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(D,N)..(GEN,RUS)201912-202411
main4520A-02621iZRE210..N..EUR;ZRE211..LHD..N;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(D,N)..(GEN,RUS)202412
STARTING SYSTEM-PUSH START SWITCH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH START SWITCH
GR SPORT&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH STARTSWITCH(FOR GR SPORT)
GR SPORT&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH STARTSWITCH(FOR GR SPORT)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH START SWITCH
sub4520A-02701
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH START SWITCH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH START SWITCH
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45259ASHEET, COLUMN HOLE COVER SILENCER
main45259-02270iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)201901-202301
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
main45260-02270iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)201901-202301
45271CLAMP, STEERING COLUMN, UPPER
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH START SWITCH
GR SPORT&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&STARTING SYSTEM-PUSH STARTSWITCH(FOR GR SPORT)
45286COVER, STEERING COLUMN
main45286-02951iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(D,N)..(GEN,RUS)202301
main45286-02951-C1iZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR),BLACK,TRIM0#,1#,2#
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR),BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
STARTING SYSTEM-PUSH START SWITCH,BLACK,TRIM0#,2#
45287ACLIP(FOR STEERING COLUMN COVER)
main90467-05171iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)201901-202301
45897BOLT, STEERING LOCK SET
main45897-12020iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901-202301
W/O SEALANT
W/SEALANT
GERMANY SPEC,W/SEALANT
8401
90119W0215
main90119-W0215
90119W0286
main90119-W0286
90167W0007
main90167-W0007
9017810027
main90178-10027
91511B0825
main91511-B0825
18 parts on this diagram · 3 diagrams in section
