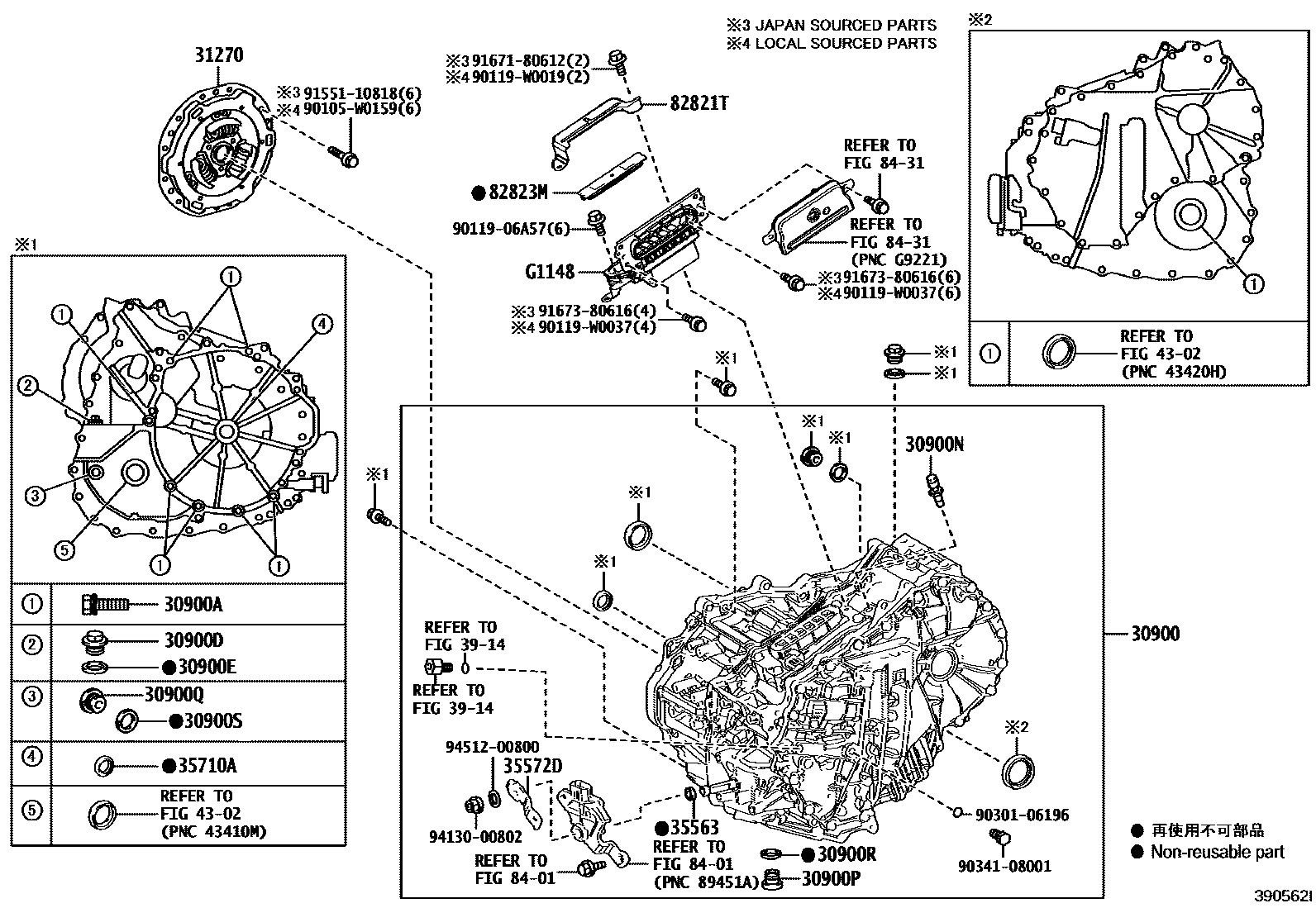

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-02050iZWE21#201901-202211

(L)

main30900-02060iZWE219202301

*200

main30900-12020iZWE211,213202207

(J)

main30900-12040iZWE219202301

*709

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main90119-W0155×7iZWE211,213201901

*10-1.25PX45-30

main91612-61045×7iZWE219202301

*10-1.25PX45-30,(J)

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iZWE219202301

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZWE211,213201901

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iZWE211,213201901

30900PPLUG, DRAIN(HEV)

main90341-18016iZWE211,213201901

30900QPLUG, FILLER(HEV)

main90341-18016iZWE211,213201901

main90341-18090iZWE219202301

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iZWE219202301

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iZWE211,213201901

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-02020iZWE219202302

(L)

main31270-28020iZWE219202302

(J)

main31270-47070iZWE211,213201901

35563SEAL, SHIFT CONTROL ACTUATOR

main90311-12016iZWE211,213201901

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-10040iZWE211,213201901

main35572-28140iZWE219202301

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iZWE211,213201901

main90311-25035iZWE219202301

3914

4302

82821TCOVER, CONNECTOR

main82821-47240iZWE211,213201901

82823MCAP, TERMINAL

main82823-28110iZWE219202301

main82823-47040iZWE211,213201901

8401

8431

G1148CABLE, MOTOR

mainG114828040iZWE219202301-202409

mainG114828041iZWE219202410

mainG114847070iZWE211,213201901

90105W0159

main90105-W0159

9011906A57

main90119-06A57

90119W0019

main90119-W0019

90119W0037

main90119-W0037

9030106196

main90301-06196

9034108001

main90341-08001

9155110818

main91551-10818

9167180612

main91671-80612

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800
